Jeep Grand Cherokee 3.0CRD Electronic Turbo Actuator Repairs

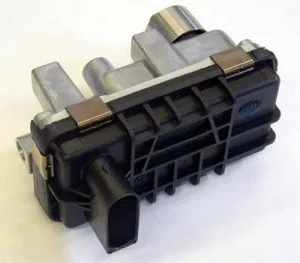

Jeep Turbo Actuator FaultsJeep Grand Cherokee Turbo Actuator Problems
The Jeep Grand Cherokee 3.0CRD model manufactured between 2005 – 2011 are fitted with a HELLA electronic turbo actuator (wastegate). The electronic turbo actuator is controlled by the engine ECU and is used to regulate the output boost from the turbocharger by opening/closing the VNT vanes as and when required. When correctly tuned, you can safely increase the boost pressure from the turbocharger whilst simultaneously increasing the economy of the vehicle.

The electronic turbo actuator is an extremely common failing part and the root cause of the failure is most likely due to carbon build up inside the turbo vanes. When carbon builds up inside the vanes they get stuck in whichever position they are – then when the actuator is being told to open the vanes and cannot do so, the gears inside can snap, the motor can burn out and you will end up with a vehicle that is no longer drivable. Some of the most common symptoms of a failed turbo actuator include:

  • Loss of power under acceleration
  • Intermittent loss of power under acceleration
  • Smoking on acceleration
  • Fault codes pointing to turbo actuator
  • Fault Code: 0046 – Control Circuit Performance
  • Fault Code: P0234 – Turbo / Supercharger Overboost
  • Fault Code: P0299 – Turbo / Supercharger Underboost
  • Fault Code: P1033 – Boost Pressure Control Short To B+
  • Actuator arm not moving
  • Engine light on
  • Limp mode

If your vehicle has been diagnosed with a faulty electronic turbo wastegate, your dealer will be quoting you for a very expensive replacement turbocharger which will come with a new electronic turbo actuator. The actuator is not available to buy separately and, therefore, you can expect a bill upwards of £1200 for the new replacement parts which only come with a 12-month warranty.

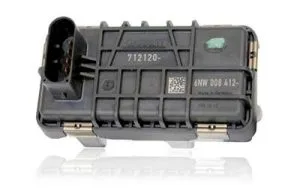

Jeep Turbo Actuator FaultsElectronic Turbo Actuator Repairs – By Sinspeed
We currently offer testing and repairs on a wide range of electronic turbo actuators and wastegates. We can fully test and rebuild your electronic actuator using new, genuine OEM components and up rate components where there are known weaknesses to ensure they do not fail again in future. We carry some of the most common failing part numbers in stock and can be supplied on an exchange basis. All actuators are rebuilt to meet & exceed OE specifications and are returned with a Lifetime warranty. Your actuator will not require programming when refitting, it will be fully plug & play.

Professional diagnosis & fitting services available.

If your Jeep Grand Cherokee has been diagnosed with a faulty turbo actuator, get in touch today by calling 0203 815 9441.

Below we have compiled a short list of part numbers associated with the electronic turbo actuator fitted to the Jeep Grand Cherokee. Don’t worry if your part number is not listed as it is not a complete list, call us if you’re not sure.

Common Part NumbersCommon Part Numbers
6NW0092286NW009420
6NW008412730314
712120G88
G277G129
G219

Tags : 6NW 008 412, 6NW 009 228, 6NW 009 420, G-129, G-219, G-277, G-88.
12 thoughts on “Jeep Grand Cherokee 3.0CRD Electronic Turbo Actuator Repairs
  • Replaced Garrett turbo actuator 712120- 6NW 008 412 on 2007 Jeep grand Cherokee CRD 3.0L with a new garrett 781751 6NW 009 660. Got no response, no movement. Is it likely the replacement 6NW 009 660 is not Compatible ?

    • Hi Tim

      Thanks for the enquiry,

      Possibly they are not compatible, we always recommend matching the part numbers. We could repair your original unit to save you the issues of coding. I have sent you an email with pricing and information to repair your original unit.

      Kind Regards

      Jason
      SINSPEED

    • Hi Guy

      Thanks for the enquiry,

      We’ve got replacement units in stock. I’ve sent an email to you with full pricing and information for both options to repair your existing unit and also to replace with a remanufactured unit from our stock.

      Kind Regards

      Jason
      SINSPEED

  • how much would a replacement unit cost part number is 6NW 009 420 712120

    • Hi Michael

      Thanks for the enquiry,

      We’ve sent you an email with full pricing and information including the costs to remanufacture your existing turbo actuator and the option to replace it with a ready remanufactured unit from our stock.

      Kind Regards

      Jason
      SINSPEED

  • Have a 6nw 009 228 and 730314 actuator jeep grand cherokee 2007 with a turbo with part #764809-0002 actuator is still on jeep so cant see the G00 etc. #. Just trying to find out if this is repairable and about how much it will cost

    • Hi Jeff

      Thanks for the enquiry,

      We have sent you an email with full information and pricing to remanufacture your electronic turbo actuator.

      Kind Regards

      Jason
      SINSPEED

  • Hi,
    Im looking for a price for a replacement turbo actuator for a 2007 Jeep Grank Cherokee as im getting a lot of overboost problems on heavy acceleration. Sorry havent been able to get part numbers yet as Vehicle is in daily use and im away from home so no tools!

    • Hi Lee

      Thanks for the enquiry,

      We have sent you an email with full information and pricing.

      Kind Regards

      Jason
      SINSPEED

  • Hi

    Hoping you can assist.

    Jeep GRC 3.0 2007 has turbo underboost Issues.

    Can this be an actuator fault – 6NWOO9420?

    Garage tbink turbo replaxement

    • Hi Sandra

      Thanks for the enquiry,

      We’ve often found that the actuator fails due to a faulty turbocharger, so it’s quite possible that both units have failed. We do offer testing and repair services for both the actuator and the turbo – I have sent you an email with full information and pricing for both services.

      Kind Regards

      Jason
      SINSPEED
