Transmission Control Module Repair: TCM, TCU & Gearbox ECU Units
Summary: When a gearbox drops into limp mode, refuses to come out of Park or starts flashing PRNDS at you, the gearbox itself is usually intact — what has failed is the electronics telling it what to do. We remanufacture transmission control modules for all makes and models of vehicle at circuit-board level, using genuine OE components so every rebuild meets and exceeds OE specifications. Your own unit comes back with its coding and adaptations intact — no programming required on transmission control module repairs — under a Lifetime warranty.
What a transmission control module actually controls
The transmission control module — TCM, TCU or gearbox ECU, depending on who is naming it — decides when your automatic gearbox changes gear and how firmly. It reads road speed, engine speed and load, throttle position, selector position and gearbox oil temperature, then issues the shift commands. It also exchanges data with the engine ECU and with the ABS and stability-control systems, so a gearchange does not arrive in the middle of a traction event.
Two details matter for everything below. The module moves nothing itself: it sends commands to the mechatronic unit or valve body, which turns them into hydraulic pressure at the clutches and solenoids. And it learns — over the life of the gearbox it stores adaptation values such as clutch bite points, pressure trims and shift timings, tuned to your particular box and its wear.
Where it physically sits varies: inside the gearbox on many dual-clutch and CVT applications, in the engine bay on others, behind the dashboard on a few. Our explainer on what the transmission control module is goes further into the electronics and the fault codes.
What a failing TCM feels like from the driver’s seat
The symptoms are recognisable, and they rarely arrive one at a time.
- PRNDS or gear-selector lights flashing on the dashboard, or the selected gear no longer displayed at all.
- Fail-safe (limp mode) with a marked loss of power.
- Jerking in and out of gear, or harsh, rough changes.
- The wrong gear selected — often worse on a cold morning, before the box is up to temperature.
- Normal operation until the gearbox gets hot, then a refusal to work.
- Loss of reverse, no gear selection at all, or a car that will not come out of Park.
- Slipping, or stored incorrect-gear-ratio faults.
- Transmission or engine management warning lights, or no communication with the module on a diagnostic tool.
The temperature pattern is diagnostically useful: a fault that appears only cold, or only once the box is fully warm, is characteristic of a fatigued joint on the circuit board opening and closing as it expands, rather than mechanical wear inside the gearbox.
Treat any of it as urgent. Limp mode typically holds the gearbox in one fixed gear and limits road speed, which becomes a safety problem the moment you need to pull out of a junction or join a dual carriageway. Our guide to a car that will not go into gear covers the wider set of causes.
Is it the control module or the mechatronic unit?
These two are routinely treated as the same part, and they are not. The mechatronic unit is the whole assembly — the control module plus the valve body, solenoids, pressure sensors and hydraulics it commands. The module decides; the mechatronic carries the decision out.
The fault codes usually tell you which side of that line you are on. Codes describing pressure control solenoids — P1814, P1818 and P1823 on VAG units, covering the N215, N216 and N217 valves — or clutch pressure, shift-fork position or a hydraulic pump that cannot build pressure, are describing the hydraulic side. P0613, P0700, or a flat U0101 “no communication with TCM”, point at the module itself.
Neither condemns a gearbox. We test and rebuild both, from the mechatronic assemblies behind Mitsubishi Lancer and Evolution X Twin Clutch SST faults to the DQ200 units behind Audi A1 DSG gearbox ECU problems, where a pressure leak in the valve body’s accumulator canister overworks the hydraulic pump and is then misdiagnosed as a failed pump. Before any of that, it is worth having a garage confirm the gearbox oil condition and whether a manufacturer software update applies — a small share of shift faults end there.
Why transmission control modules fail
Heat does most of the damage. These modules are mounted on or inside the gearbox on many applications, sitting in transmission fluid at working temperature, or in the engine bay on others. Every journey takes the board through a full heating and cooling cycle, and enough cycles fatigue and crack the solder joints holding the components down — which is precisely what produces intermittent, temperature-dependent faults.
Vibration accelerates the same process. So does electrical load: the driver stages inside the module switch solenoid coils thousands of times an hour, and a solenoid that shorts — commonly after oil contamination — can take its driver transistor with it.
The other two routes in are water and voltage. Corrosion at connectors and along wiring is a frequent finding on externally mounted modules, while a tired battery, a failing alternator or a jump start show up as low-supply-voltage codes such as P0562, or as a hydraulic pump reporting that it cannot build pressure on the voltage available.
Which gearboxes and models we repair
Gearbox architecture determines what the module is doing, and therefore what tends to break.
- CVT (continuously variable). No fixed ratios — a belt or chain between variable pulleys, with the module regulating ratio and clamping pressure continuously. Two of our highest-volume repairs sit here: the Motorola TCU fitted to BMW MINI R50 and R52 CVT automatics, 1999 to 2006, which characteristically jumps into gear or picks the wrong one while cold; and the Audi A4 and A6 Multitronic CVT module, 2001 to 2005 — excluding the Quattro models, which used a different unit and do not carry the same fault.
- DSG and dual-clutch. Two clutches, two input shafts, one module co-ordinating both. The VAG family is the largest single group we see, spanning Audi, Seat, Skoda and Volkswagen DSG, S-Tronic, Multitronic and CVT controllers, including the 01J 927 156, 8E0 910 155 and 02E 927 770 part-number families. For the background on how the system works, read how the VW and Audi DSG gearbox ECU functions.

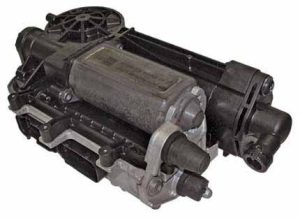

- Automated manual. A manual gearbox with clutch and shift placed under electronic control. The Bosch TCU in the Mazda 2 DY Durashift, 2003 to 2007 is the definitive example — the same unit is fitted to selected Fords, including the Fiesta — and it fails with no communication, wrong gear selection and the selected gear missing from the dash.
- Selector and driveline modules. The category also covers the electronics either side of the gearbox: Land Rover rotary gear selector modules that will not rise, rotate or select gear (fault code P176C-11), and the Volvo Differential Electronic Module driving the Electronic Limited Slip Differential on the V70, S60, S80, XC70 and XC90.
The list of transmission module part numbers is effectively endless, so coverage is not limited to the vehicles named here. Send us the number printed on your unit and we will confirm it.
Why a repaired module goes back on without programming
This is the practical case for repair, and it has two halves: coding and adaptations.
A new module from a dealer arrives blank. It has to be coded to your vehicle before it will operate at all, which means the car goes nowhere until someone with the right equipment does it. A second-hand unit from a breaker is the mirror-image problem: it carries the coding of the car it was removed from.
Adaptations are the half most people miss. The values your module has learned — bite points, pressure trims, shift timings — are matched to the wear in your specific gearbox. A replacement starts from a default map, and many gearboxes then need an adaptation reset and a relearn drive cycle before shift quality settles down. Until it does, changes can be harsh or hesitant.
Repairing the unit you already have avoids both. The original software, coding and stored adaptations stay on the board, so it goes straight back on the car, fully plug and play. We rebuild with genuine OE components so the finished unit meets and exceeds OE specifications, and where a known weak point caused the failure we uprate that part rather than refit the same component and wait for it to do the same thing again. A new replacement part is typically covered for 12 months and a used one for 30 to 90 days; our remanufactured transmission modules come back with a Lifetime warranty.
How our mail-in repair works
The car stays where it is — only the unit travels. Units reach us from private owners and from garages and independent workshops alike.
Send us the make, model and year, the symptoms, any fault codes you have, and the part number printed on the module, and we will tell you whether the fault is likely to sit in that unit before you post anything. Removal is straightforward on some applications and means dropping the valve body on others; a fitting service is available if you would rather not tackle it.
On the bench the unit is powered up and driven through its shift outputs on transmission-controller test equipment, so the fault is confirmed in operation rather than inferred from a stored code. Rebuilds are carried out at circuit-board level by our in-house electronics engineers on static-safe benches, and every unit is retested before it is packed. Where an exchange unit is the quicker route we hold stock for common applications and complete the coding here before dispatch.
To begin, send us the details through our repair form, or contact us if you are not yet certain which unit has failed.
Transmission control module repair FAQs
Can a transmission control module be repaired?
In most cases, yes. The module is a circuit board, and the usual failures — cracked solder joints, failed driver stages, corroded connectors — are repaired at component level, with the weak point uprated so the same fault does not return.
What are the symptoms of a faulty transmission control module?
Flashing PRNDS or selector lights, limp mode with reduced power, jerking or harsh changes, the wrong gear selected when cold, loss of reverse, no gear selection at all, and stored transmission codes or no communication with the module.
Does a repaired TCM need coding or programming?
No programming is required on transmission control module repairs. Your original software, coding and learned adaptation values stay on the unit, so it returns fully plug and play — unlike a blank replacement, which has to be coded to the vehicle.
Can I fit a second-hand transmission control module?
Not straightforwardly. A used unit carries the coding of the car it was removed from and the adaptations learned on that gearbox, so it has to be coded and adapted to yours before it will work properly.
Is the TCM the same as the mechatronic unit?
No. The mechatronic unit is the complete assembly — control module plus valve body, solenoids, sensors and hydraulics. The module makes the shift decisions; the mechatronic executes them hydraulically. We test and rebuild both.
Is it safe to drive with the gearbox in limp mode?
It is a fault to fix, not to live with. Limp mode usually holds one fixed gear and limits road speed, which restricts your ability to pull away or join fast-moving traffic. Have the vehicle assessed before further use.
Which makes and models do you cover?
All makes and models. The highest volume runs through VAG DSG and Multitronic controllers, MINI and Audi CVT modules, Durashift automated-manual TCUs, and Land Rover selector and Volvo DEM units. If your part number is not listed, send it to us to confirm.
Final thoughts
Nearly every unit that arrives here has already been described to its owner as a gearbox problem. The question that actually matters is narrower than that: has the hydraulic side of the transmission failed, or the electronics commanding it? A bench test answers it definitively, and it is worth answering before anyone commits to a gearbox. Where the module is the fault, the unit already on your car holds the coding and the adaptations that suit your gearbox — which makes repairing and keeping it the sensible route rather than starting again with a blank part.
