Instrument Cluster Repair: Start With the Symptom, Then Your Make
Summary: Dead pixels in the display, a backlight that has gone out, a gauge parked at zero, mileage showing dashes — these are instrument cluster faults, and they are put right on the panel itself rather than by fitting a new dashboard to the car. This page does the job an individual make page cannot: it takes the symptom in front of you and points you at the page that deals with it.
Sinspeed has repaired and remanufactured vehicle electronics since 2007, and instrument clusters are one of the core lines — the dashboard panel carrying your speedometer, rev counter, fuel and temperature gauges, warning lamps and the vehicle’s recorded mileage. Panels arrive by post from private owners, garages and fleets across the UK, and each goes back to the car it came from.
Match what you can see to what has usually failed
Cluster faults are easy to describe and hard to name. Five patterns cover almost everything that reaches the workshop, and each one points somewhere slightly different — which is why the last column below matters as much as the first.
| What you see | What it usually means | Where to go next |
|---|
| Dead pixels, missing lines or blocks in the display | The display side has degraded with age and heat rather than anything out on the car — which is why the gauges and lamps around it usually still work. | Note which parts of the screen are unreadable, then take your make from the index below. |
| Backlight gone or dim — gauges readable by day, invisible at night | The panel’s illumination, not the instruments. Published accounts split it between failed illumination components and the circuit driving them; the car’s own dimmer or a dashboard fuse gives the same result. | Run the dimmer through its full travel first. If nothing changes at either end, take your make from the index below. |
| Mileage missing, showing dashes, or reading wrong | The panel’s stored record has been disturbed. On most cars the cluster is where recorded mileage is held, so a fault here surfaces as dashes, a frozen figure, or a number that no longer matches the car. | Read the next section before you let anyone replace the panel. The record exists in one place only. |
| A gauge stuck, sweeping or dead while the rest of the panel works | The gauge’s own drive inside the panel rather than the sender out on the engine, particularly when its neighbours read correctly. Heat and cold extremes are commonly described as what brings it on. | Note which gauges, and whether it happens cold, hot or both. Then take your make from the index below. |
| The car will not start, and the panel is misbehaving with it | Two possibilities worth separating. A weak battery or charging fault will make a panel behave oddly and leave a car that will not start, from the one cause. On many vehicles the cluster also sits in the chain the immobiliser checks. | Have the battery and charging system checked first. If both are sound, take your make from the index and describe what happens when you turn the key. |
Warning symbols are a question of their own, because what a lamp means changes from one make to the next. Our guides work through them car by car — Vauxhall warning lights and symbols, Ford Ka warning lights and Ford Puma dashboard symbols. The same goes for Ford Mondeo warning lights, Kia Picanto warning lights and Dacia Sandero warning lights.
Why your recorded mileage only exists in one place
Almost every electronic fault on a car ends in a part swap. This one does not, for a specific reason: on most vehicles the instrument cluster is the only module holding the recorded mileage. The panel is not simply an instrument — it is the custodian of the car’s history.
That changes what replacement means. A panel from elsewhere arrives carrying a figure belonging to a different car, and it has to be matched to yours before the reading means anything at all. Repair the original and the question never arises. Specialists publishing on cluster work treat preserving that record as a defined part of the job rather than a happy side effect.
It also explains a pairing owners rarely connect. The figure is written to while the car runs, so a supply that collapses at the wrong moment can leave it corrupted rather than simply blank — a battery weak enough to dip hard during cranking is the case most often described. A mileage fault and a tired battery on the same car is rarely a coincidence.
What that means here is plain. We work on your panel and we do not alter the odometer: the figure it reads leaving the workshop is the figure it read arriving. It goes back carrying the coding your car already recognises, which is what lets most units refit and work without a dealer visit.
From here, go to your make
Twenty-one makes have a cluster index on this site, each going into the models, the panel designs and the faults particular to that badge — detail a page covering every car at once cannot honestly hold. Rows are added as more are built.
- Alfa Romeo — where one part of the panel fails and the rest carries on working, as on the Alfa Romeo 147.

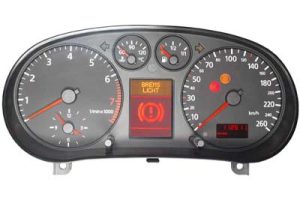

- Audi — including the Q7 cluster and speedo faults.

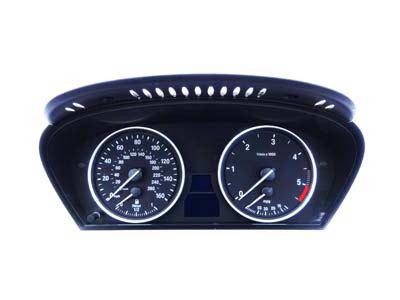

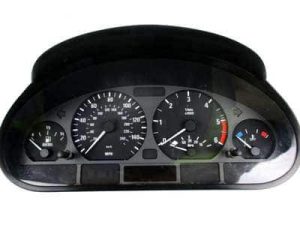

- BMW — blank displays and a speedometer that has stopped reading, including on the 1 Series (E81–E88).
- Citroen — including the C4 Picasso and the Xsara Picasso.

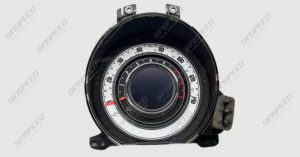

- Fiat — the same badge on a city car and on the base vehicle under a motorhome.

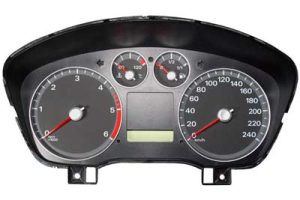

- Ford — where a panel fault and a no-start can arrive together.
- Honda — the Civic’s split dash, digital speed on top and the rev counter in the lower pod, plus the CR-V panels.

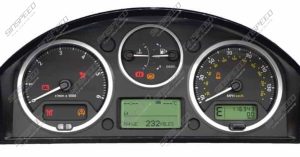

- Land Rover — including the Freelander 2 (2006–2014).
- Mazda — speedometer and gauge faults across the Mazda panel range.
- Mercedes-Benz — including the W202, W208 and W210 (C-Class, CLK and E-Class) display faults.
- Mitsubishi — the 2006-on Shogun, for a dash that blacks out or resets on the move.

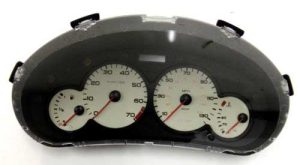

- Peugeot — including the 206.
- Renault and Nissan — the Qashqai, X-Trail and Navara panels, with Renault clusters booked in through the repair form.
- SEAT and Skoda — the Octavia, Superb, Yeti and Fabia panels, plus the SEAT Ibiza, Mii and Alhambra.
- Suzuki — the first- and second-generation Swift and the SX4.
- Toyota — the Aygo city car, the first-generation Auris and the Hilux pick-up.
- Vauxhall — a dim or blinking panel, and needles that drop to zero on the move.

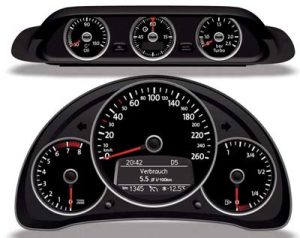

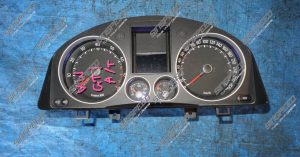

- Volkswagen — several panel designs across the Golf, Polo, Passat and Transporter, including the Polo, the Beetle and the shared Touareg, Cayenne and Bentley panel.
- Volvo — dead gauges and driver information module (DIM) faults.

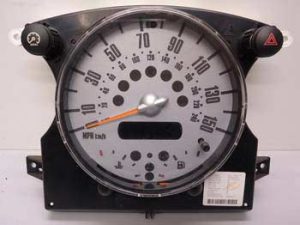

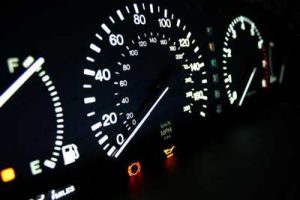

A make missing from that list is not a make we turn away; it has no index page of its own yet, that is all. Model pages exist outside the index — the Lexus LS400 and the MINI One and Cooper S among them — and panels listed as a stock service sit in the instrument cluster panel section of the shop.
Panels listed for makes without an index yet
Some makes with no index page above already have a panel listed as its own service, by model and years:
Sinspeed · instrument cluster and dashboard repair
No page for your car? Describe the panel instead
The repair form takes the make, model, year and what the dashboard is actually doing. That is enough to place the job. A badge on its own is not, which is why the form asks for both.
Mail-in from anywhere in the UK and beyond · Private owners, garages and fleets · Symptom first, part number second
From symptom to repaired panel
The route is the same whichever make page you came from, and it is built so the car never has to move.
- Tell us what the panel is doing
Make, model, year and the symptom in your own words on the repair form. Fault codes help if a scan has been run; they are useful rather than essential, and a clear description beats a code list.
- The panel travels, not the car
The cluster comes out of the dashboard at your end or your garage’s and is posted in. That is the only part of the job that leaves the vehicle.
- Put back under the conditions that made it fail
It is powered up and driven here the way the car drives it, then taken through heat, vibration and electrical load on in-house Hardware-in-the-Loop rigs. A panel that behaves on a cold bench has proved nothing yet — the fault has to appear before it can be called fixed.
- Back with its own data intact
Your panel returns reading your mileage and carrying the coding the car already recognises. Refit it and drive.
Common questions about cluster and dashboard repair
Could the panel be fine and the supply at fault?
It can be. A panel that flickers, dims, or drops instruments in and out is doing what any panel does when its supply is not clean, and specialists in this field advise checking the battery, the charging system and the dashboard fuses before a cluster goes anywhere. If all three are sound and nothing has changed, the panel is next.
I am not sure the cluster is the problem. Will you test it first?
Yes. Send it in and say on the form that you want it tested. It is powered up and driven here before anything is proposed, and you get the findings before any work is agreed.
Is a panel that has been dead for months still worth sending?
Usually. Sitting unpowered does not make a failed panel worse. Water and physical damage do, so if the car has been standing with a leak near the screen, or the panel has been opened before, say so on the form — it changes what we look at first.
Are digital and virtual-cockpit dashboards handled the same way?
The route in is identical. A full digital display fails differently from a panel of needles — it arrives as a frozen, blanked or scrambled screen rather than a gauge stuck at zero — but what places the job is your description of what the dashboard is doing and when, not the format it is drawn in.
Sinspeed · the panel travels, the car stays put
Send the panel in with the symptom written down
Make, model, year and what you can see on the dashboard. If a scan has been run the codes help; if it has not, the description is enough.
Your own panel back, reading your own mileage · Diagnosed and repaired in-house · Lifetime, unlimited-mileage warranty
