Ford Mondeo Electronic Turbo Actuator Problems
The Ford Mondeo 2.0 TDCi between 2001 – 2007 is fitted with an electronic turbo actuator to control the flow and output of the turbocharger. It is accurately controlled by the Engine ECU and can be tuned to increase the performance and economy of the vehicle. The electric turbo actuator is a very common failing part and can be an expensive repair when it fails as the dealer will be quoting to replace the complete turbocharger.
Ford Mondeo Turbo Actuator Common Faults
Most common symptoms when the Ford Mondeo electronic turbo actuator fails is the glow plug light will start flashing and the engine will go into “Limp Mode” to restrict the performance – a safety feature installed in the ECU to avoid any further damage. There will also be fault codes stored in the ECU relating to the turbo actuator or turbo performance. Some other common faults include:
- Loss of power under acceleration
- Intermittent loss of power under acceleration
- Smoking on acceleration
- Fault codes pointing to turbo actuator
- “Charge Air Pressure Control” fault
- Actuator arm not moving
- Fault Code: P132A – Turbo Actuator Vane
- Fault Code: P132B – Turbo Boost Control ‘A’ Performance
- Limp mode
- Flashing glow plug light
A replacement turbo can cost upwards of £1000 and the actuator is not sold separately from the dealers. Used parts are not recommended because they will require programming and eventually end up having the same common fault as they are all failing at some point or another.
Some common part numbers related to this type of unit include the following.

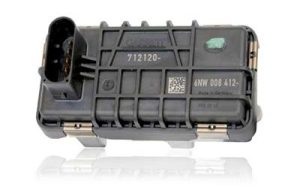

| Common Part Numbers | Common Part Numbers |
|---|---|
| G149 | G221 |
| 712120 | 6NW008412 |

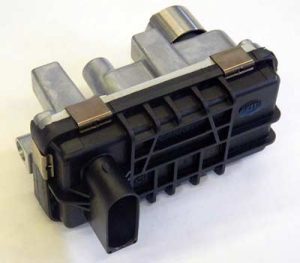

Ford Mondeo Electronic Turbo Actuator Repair – By Sinspeed
We’re able to fully strip down the actuator to component level and rebuild it using new genuine OEM components. We also up rate parts where there are known weaknesses in the original design, to ensure it does not fail again. All remanufactured units are rebuilt to meet & exceed OE specification and are returned with a Lifetime warranty. Your repaired turbo actuator will be fully plug & play and will not require any programming when refitting to the vehicle.
Professional diagnosis & fitting services available.
