Summary: When an Audi A3 or S3 instrument cluster starts to fail, the centre display pixelates, the fuel and temperature needles read high or low, or the whole unit flickers until it warms up, cuts out intermittently or loses power altogether. These faults sit in the cluster, not the car around it. We repair the cluster from your own car by post, so it refits with its key coding and recorded mileage unchanged, and the repair carries a lifetime warranty.
Below: how each fault shows itself, how to tell it apart from a problem elsewhere in the car, and what the repair involves. The individual A3 clusters we list, by build years, are gathered on our Audi instrument cluster repair page, and every make we cover sits in our instrument cluster repairs section.

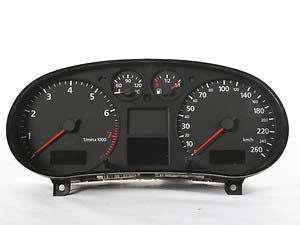

- The unit: the instrument cluster (dash panel or speedo) of the Audi A3 and S3
- Generations we list: A3s built 1998–2003, 2003–2012 and 2016–2020
- Where the number is: on the label on the back of the cluster
- Faults we see: a pixelated centre display, fuel or temperature needles reading high or low, flicker until warm, intermittent cut-outs and total power failure
- At refit: the cluster is key-coded, so a replacement has to be programmed in; your own repaired unit does not
- Our part: an in-house repair of the cluster from your car, sent to us by post
- Warranty: lifetime, on the repair
- Which A3 and S3 cluster faults do we see?
- Does the A3 cluster log a fault code?
- Which A3 and S3 generations can we repair?
- What makes an A3 cluster fail, and look like something else?
- Should you repair the A3 cluster or buy another?
- What happens when you post us your A3 cluster?
- A3 and S3 cluster repair: common questions
- Final thoughts
Which A3 and S3 cluster faults do we see?
Owners usually notice one of two things first: the central display breaks up into missing pixels, or the fuel and temperature needles stop matching what the car is doing. Both are recorded against this cluster, and neither is the end of the list.
The remaining faults are less obvious and easier to pin on something else. Here is how each one shows up, and what deserves a look on the car before the cluster comes out of the dash.

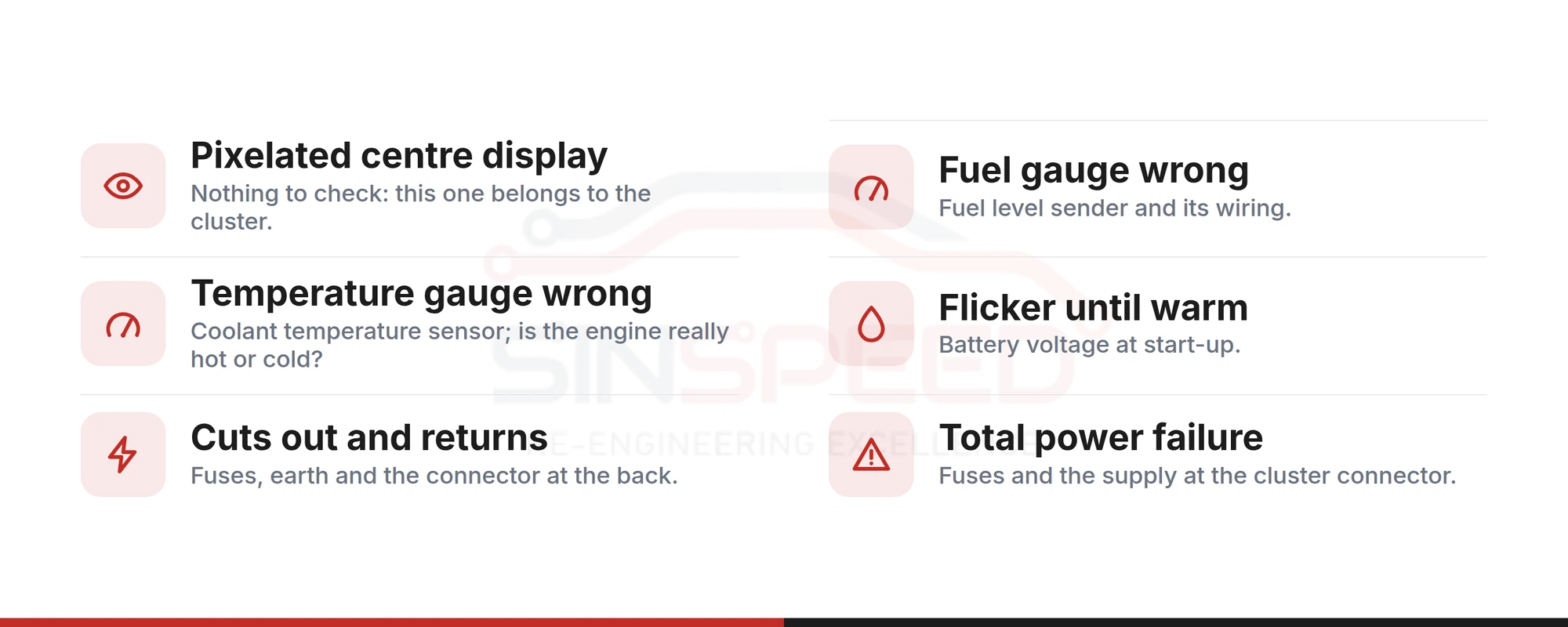

| The fault | What is usually behind it | Check on the car first |
|---|---|---|
| Centre display pixelated or missing lines | The display inside the cluster is deteriorating, and it rarely improves on its own | Nothing — this one belongs to the cluster |
| Fuel gauge reading too high or too low | The cluster may be misreading a sound signal from the tank | The fuel level sender and its wiring |
| Temperature gauge reading too high or too low | The cluster may be misreporting the engine’s real temperature | The coolant temperature sensor, and whether the engine genuinely is running hot or cold |
| Mileage readout flickering, clock display lit | The display side of the cluster is struggling | Battery condition, if other electrics are misbehaving too |
| Whole cluster flickering until the car warms up | A temperature-sensitive fault inside the unit | Battery voltage at start-up |
| Cluster cutting out and returning | An intermittent fault across the unit, or an unreliable supply to it | Fuses, the earth and the connector at the back of the cluster |
| Total power failure | The cluster has failed outright, or is not getting power | Fuses and the supply at the cluster connector |
An A3 with a failing cluster will usually still drive, which is why these faults get lived with. The risk lies in what the gauges stop telling you. A temperature needle reading low can sit there while the engine genuinely overheats, a fuel gauge reading high can leave you short, and a dash that dies on the move takes the speedometer with it. Treat any of these as a reason to have the cluster checked, not a quirk to get used to.
Does the A3 cluster log a fault code?
Not reliably, and we list none here because none are on record against these faults. A pixelated display or a flickering panel is something you see rather than something the car stores. Where a diagnostic scan earns its keep is in narrowing the search.
| Scan result | What it points to | Next step |
|---|---|---|
| No codes stored, fault plainly visible | A display or panel fault the car does not log | Note when it happens and describe it on the repair form |
| Live data shows the right fuel level or temperature, the needle does not | The cluster is misreading a good signal | Have the cluster repaired |
| Live data is wrong as well | The signal arriving at the cluster may be at fault | Check the sender or sensor and its wiring before the cluster |
| Other modules have lost contact with the cluster | Could be the cluster, or its supply, earth or connector | Rule out the supply side; a silent cluster with good power points back at the unit |
| Key or start complaints after a used cluster went in | The replacement has not been coded to the car | Refit the original once repaired, or have the replacement programmed in |
Sinspeed · A3 and S3 dash repairs
Not certain the cluster is the culprit? Ask before it comes outTell us what the dash is doing, what any scan found and the number on the cluster’s label. We will say whether it looks like the cluster before you remove anything or buy a replacement.
Original unit returned · Key coding untouched · Warranty for life
Which A3 and S3 generations can we repair?
Our Audi listings carry three A3 cluster generations: cars built 1998–2003, 2003–2012 and 2016–2020. The S3 is covered on this page alongside the A3, and the label on the back of the cluster is what confirms exactly which unit you have.
This page does not list individual part numbers. Read the number from that label and add it to the repair form; we check it against the clusters we repair and confirm before anything is removed.
An A3 or S3 from outside those years is still worth asking about. Send the label number the same way and we will tell you whether we can take it, or get in touch if you cannot reach the label yet.
What makes an A3 cluster fail, and look like something else?
An instrument cluster lives a harder life than its position suggests. Behind the dash it heats up and cools down on every journey, soaks up sun through the windscreen and takes road vibration through the facia mile after mile. Each start pulls its supply voltage down as the engine cranks, and damp cabin air finds its way in over the seasons.
The oldest A3s we list were built in 1998, so these clusters have had a long time to accumulate all of that. The flicker-until-warm fault shows it most clearly. A cluster that misbehaves from cold and settles once the cabin warms is reacting to temperature, and a fault that comes and goes with temperature points into the unit itself.
Misdiagnosis follows from the cluster’s job. It reports on the rest of the car, so when it gets a reading wrong, the blame lands on whatever was being measured. A fuel needle stuck high sends people to the tank sender. A temperature needle sitting low suggests a thermostat or coolant sensor. A dash that goes dark looks like a blown fuse or a wiring fault.
All of those parts can fail, and all are worth checking first. When the replacement goes in and the needle or the display carries on exactly as before, the cluster is the likely cause.
Should you repair the A3 cluster or buy another?
The A3 cluster is key-coded to the car it came from. Any other cluster, new or used, has to be programmed in before the car accepts it. Repairing the one already in your A3 means that step never comes up.

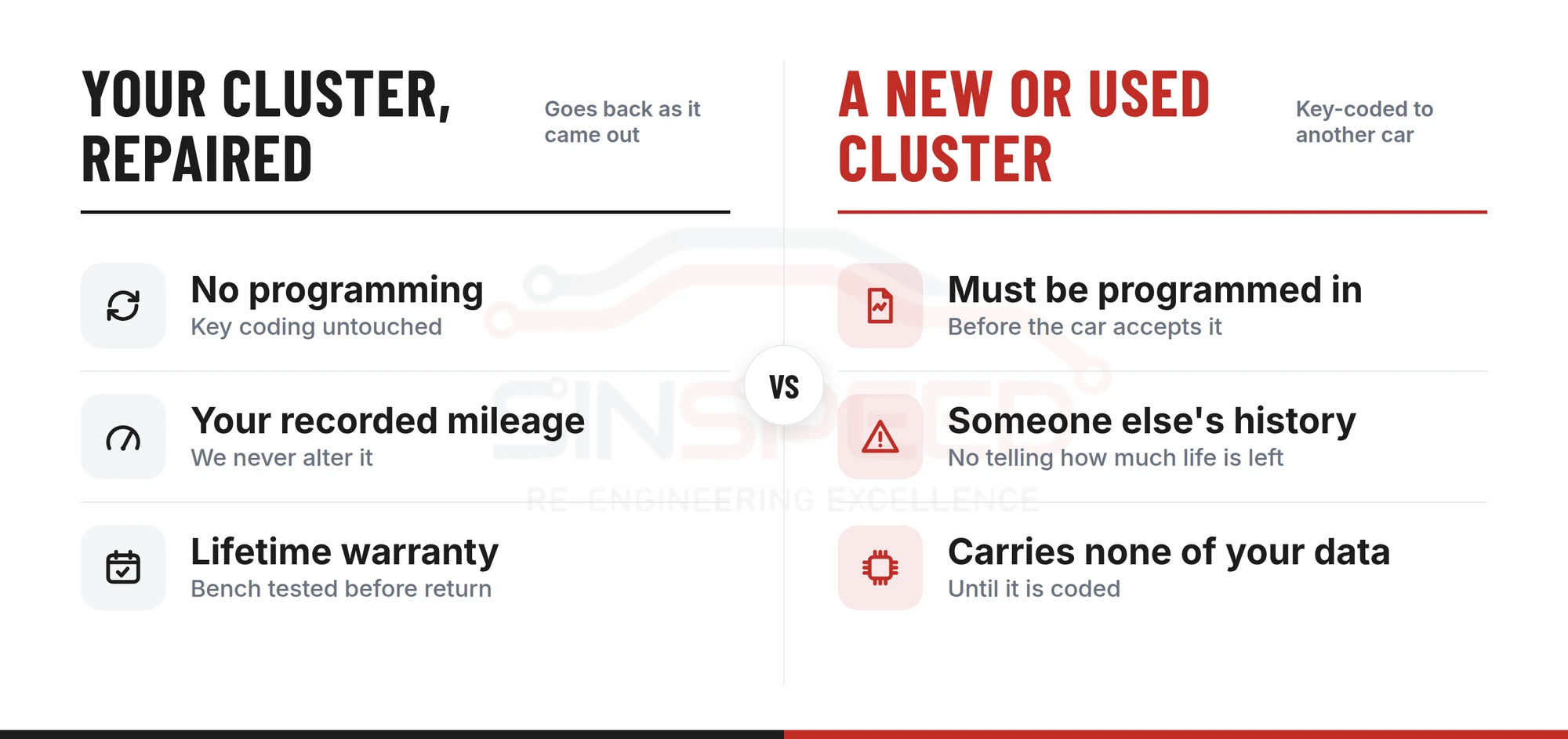

| Option | What happens at refit | What you are left with |
|---|---|---|
| A new cluster | Needs programming to your car | A unit that carries none of your A3’s data until it is coded |
| A used cluster from another car | Needs programming to your car | Someone else’s history in your dash, and no telling how much life it has left |
| Your cluster, repaired by us | Goes back in as it came out | Your car’s own coding and recorded mileage, bench testing before return and a lifetime warranty |
The mileage matters as much as the coding. Your repaired cluster comes back showing the figure your A3 had already recorded. We never alter recorded mileage, and because it is the car’s own unit, the question of which figure it shows never arises.

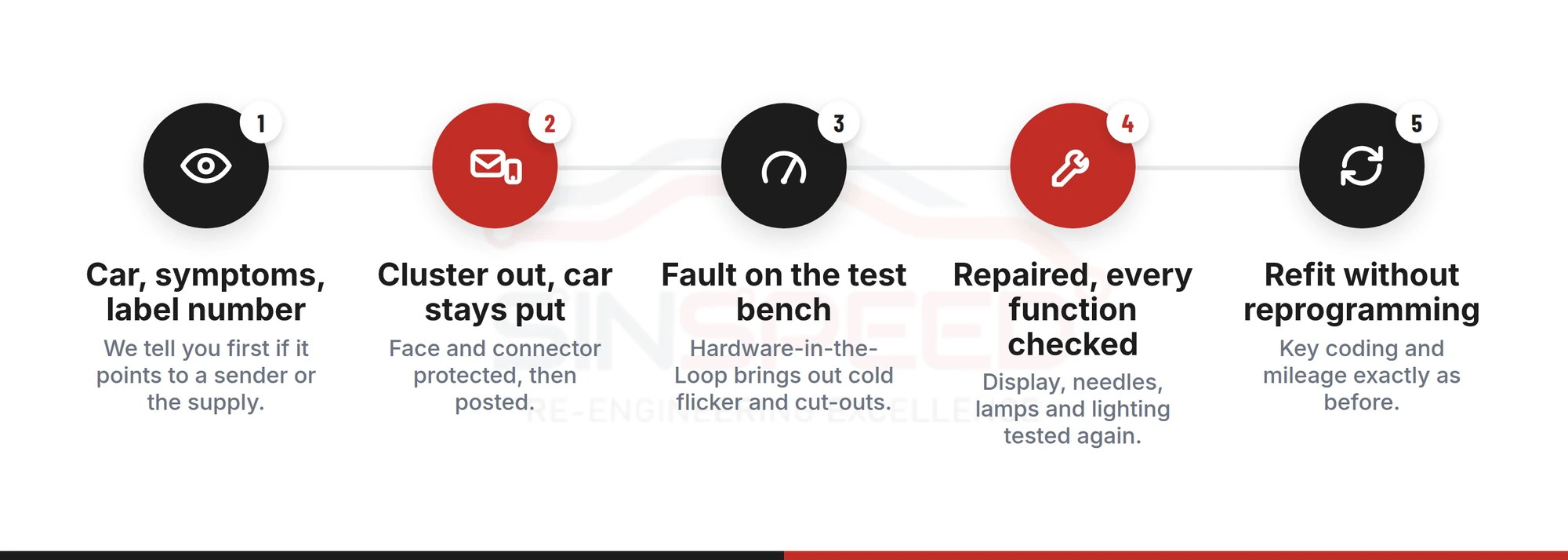

What happens when you post us your A3 cluster?
Only the cluster travels. You or your garage take it out of the dash, send it to our workshop and refit it when it comes back.
- Give us the car, the symptoms and the label number
The repair form asks for your A3 or S3’s details, what the cluster is doing and when, and the number on its label. If the symptoms point to a sender, a sensor or the supply instead, we tell you before the cluster comes out.
- The cluster comes out; the car stays put
Wrap it so the face and the connector are protected, and post it. The rest of the A3 stays on your drive or in your garage’s workshop.
- Fault confirmed on the test bench
We power the cluster and feed it the signals it would receive in the car, then run it on our in-house Hardware-in-the-Loop platforms, which simulate heat, vibration and load. Cold-start flicker and intermittent cut-outs are exactly the faults this is designed to bring out.
- Repaired in-house, then every function checked
Our engineers carry out the repair in a cleanroom-standard workshop with full static protection. The display, each needle, the warning lamps and the panel lighting are then tested again before the cluster is packed.
- Refit without reprogramming
It is the cluster already coded to your A3, so its key coding and recorded mileage are exactly as they were. It plugs back in, and the gauges go back to reading the car.
A3 and S3 cluster repair: common questions
Is it safe to drive an A3 while the cluster is playing up?
The car will usually still drive, but you are relying on readings you cannot trust. Keep more fuel in the tank than you normally would, watch for real signs of overheating if the temperature needle is misbehaving, and have the cluster checked soon. A cluster that cuts out completely takes the speedometer with it.
Does a repaired A3 cluster need coding when it goes back in?
No. It is the same cluster that came out of your car, so it keeps the key coding it already had. A new or second-hand cluster is different: it has to be programmed to your A3 before it works properly.
Will the odometer show a different figure after the repair?
No. The repaired cluster returns showing the mileage your A3 had already recorded. We never alter recorded mileage.
My dash only flickers when the car is cold. Is that the cluster?
It is one of the faults we see on A3 clusters. A fault that comes and goes with temperature usually points into the unit itself, but check the battery and charging first if other electrics are also misbehaving at start-up.
Can you repair an S3 cluster as well as an A3?
Yes, this page covers both. Add the number from the label on the back of the cluster to the repair form so we can confirm the exact unit before it is removed.
My A3 is not from one of the years you list. Can you still take it?
Send us the label number through the repair form and we will tell you whether we can take it. An unlisted year is a question to ask us, not an automatic no.
Final thoughts
A broken-up display or a gauge that reads high is easy to live with for a while. The trouble starts when senders and sensors get replaced around a cluster that was at fault all along.
Work through the car-side checks the table points to, read the number off the label, and have your A3’s own cluster repaired. It goes back with the coding and the mileage it left with, and the dials are worth believing again.
