Audi Bosch 8.0 ABS / ESP Pump Module Repairs

Audi Bosch 8.0 ABS/ESP Pump Module RepairsAudi Bosch 8.0 ABS / ESP Pump Module Problems

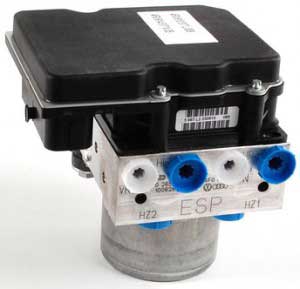

Many modern Audi’s are fitted with the new Bosh 8.0 ABS/ESP pump module. This is the latest Bosch ABS / ESP pump technology and is found fitted to a variety of cars including: BMW, Nissan and Mercedes-Benz and surprisingly is already a very common failing part.

When the Bosch 8.0 ABS pump fails, most workshops will advise on a new replacement unit which can only be purchased from a main dealer and carries a very expensive price tag. The new replacement units will also require coding which would be an additional cost. Whilst it may seem tempting to opt for a second-hand used replacement to reduce cost, the life expectancy will be reduced compared to a new or re-conditioned ABS unit and it will still require coding at an additional cost.

Common Audi ABS / ESP Pump Module Faults
If you think the ABS pump in your Audi is failing, then you could be experiencing one or more of the following common issues:

  • ABS Light On
  • Brake Pressure Sensor
  • No Communication Fault
  • ESP / ASR / TCS / DCS (Traction) Light On
  • Wheel Speed Sensor Faults

Below we have compiled a short list of Audi’s we have seen fitted with the Bosch 8.0 ABS / ESP Unit. This is not a complete list and there are model specific variations so don’t worry if your vehicle is not listed. If you’re not sure you can always call us with your vehicle details and a brief description of the fault along with any fault codes you might have and we will do our best to help.

Model ModelModel
Audi A4 Audi A7Audi RS4
Audi A5Audi S4Audi Q5
Audi A6Audi S6Audi R8

Bosch 8.0 ABS / ESP Pump Repairs – By Sinspeed
Our highly trained and well experienced team are able to fully test & repair the Bosch 8.0 ABS / ESP unit fitted to Audi’s and we use new genuine OEM components to ensure that every rebuilt pump meets & exceeds OE specifications. All of our remanufactured units come with a Lifetime warranty and are fully plug & play – meaning they will not require any coding / programming when re-fitting to the vehicle.

We can also offer a professional diagnosis & fitting service if required.

See below for some of the most common failing part numbers associated to the Bosch 8.0 ABS / ESP units. If you don’t see your part number – don’t worry, this is not a complete list. Simply give us a call on 0203 815 9441 to speak to one our team members who will be able to assist you with any queries you have.

Bosch PartnumberOEM Partnumber
0265 900 324BMW 34516768829-01
0265 950 318PSA 9665106680
0265 950 353VAG 4F0 614 517 D
0265 950 372VAG 4F0 910 517 L
0265 950 414VAG 4F0 910 517 K
0265 950 430VAG 6R0 907 379 H
0265 950 474VAG 6R0 907 379 E
0265 950 505VAG 8E0 910 517 AK 05
0265 950 429VAG 8E0 914 517 D0 12
0265 950 545Mercedes A2129006201
0265 950 742VAG 4F0 614 517 L
0265 950 749VAG 4F0 910 517 L 009
0265 950 824VAG 4F0 614 517 L 03
0265 950 962VAG 4F0 614 517 AA
0265 950 986VAG 4F0 614 517 K
0265 951 048VAG 4F0 614 517 N
0265 951 21351771148
0265 951 2233451 6762059 01
0265 951 738Mercedes A0004468289
0265 955 0005532809
0265 950 338VAG 8E0 614 517 BD
0265 950 351VAG 8E0 614 517 BF
0265 950 360Mercedes A0054319512
0265 950 407Mercedes A4544202275
0265 234 263Honda 57110SMGG012M1
0265 235 1034454005071
0265 950 557445400F030
0265 234 2609660934580
0265 800 362Mercedes A0064316312
0265 800 3634A90AL1799
0265 800 37555831
0265 800 376Mercedes A2124312912
0265 800 377Nissan 47660-JD01D
0265 800 42210330 U0213
0265 800 441110403-2-0661
0265 800 4619676244880
0265 800 4959674677580
0265 800 511VAG 6R0 614 517 H
0265 800 5798200192202
0265 233 33777BO2AAY2
0265 234 0356768829 01
0265 234 097VAG 4F0 910 517 D
0265 234 148VAG 4F0 614 517 BOJ
0265 234 227VAG 4F0 910 517 AD 007
0265 234 336VAG 6Q0 614 417 M
0265 235 054VAG 6Q0 614 417 H
0265 235 097VAG 6Q0 907 379 AB
0265 235 394VAG 6Q0 907 37 R 0001
0265 235 406VAG 6Q0 907 379 R 0003
0265 230 017VAG 6Q0 614 117 L
0265 230 289VAG 6Q0 614 117 Q
0265 230 37350407 5551
0265 236 310024027
0265 230 68650407 5553
0265 230 30493188091
0265 239 000553015
0265 234 07513236012 AQ
0265 234 09544510 - 0H010
0265 234 11451761005
0265 234 212VAG 6Q0 614 117 S
0265 231 425
0265 231 426
0265 231 450
0265 231 452
0265 231 537
0265 231 579
0265 231 617
0265 231 672
0265 231 712
0265 230 038400 614 517 E
Tags : 0265230017, 0265230289, 0265230304, 0265230373, 0265230686, 0265231425, 0265231426, 0265231450, 0265231452, 0265231537, 0265231579, 0265231617, 0265231672, 0265231712, 0265233337, 0265234035, 0265234075, 0265234095, 0265234097, 0265234114, 0265234148, 0265234212, 0265234227, 0265234260, 0265234263, 0265234336, 0265235054, 0265235097, 0265235103, 0265235394, 0265235406, 0265236310, 0265239000, 0265800362, 0265800363, 0265800375, 0265800376, 0265800377, 0265800422, 0265800441, 0265800461, 0265800495, 0265800511, 0265800579, 0265900324, 0265950318, 0265950338, 0265950351, 0265950353, 0265950360, 0265950372, 0265950407, 0265950414, 0265950429, 0265950430, 0265950474, 0265950505, 0265950545, 0265950557, 0265950742, 0265950749, 0265950824, 0265950962, 0265950986, 0265951, 0265951048, 0265951738, 0265955000, 10330U0213, 110403-2-0661, 13236012AQ, 21351771148, 2233451676205901, 3451676882901X, 44510-0H010, 4454005071, 445400F030, 47660-JD01DX, 4A90AL1799, 4F0614517AAX, 4F0614517BOJX, 4F0614517D, 4F0614517KX, 4F0614517L03X, 4F0614517LX, 4F0614517NX, 4F0910517AD007X, 4F0910517DX, 4F0910517KX, 4F0910517L009X, 4F0910517LX, 504075551, 504075553, 51761005, 553015, 5532809, 55831, 57110SMGG012M1X, 676882901, 6Q0614117LX, 6Q0614117QX, 6Q0614117SXX, 6Q0614417HXX, 6Q0614417MX, 6Q0907379ABX, 6Q0907379R0003X, 6Q090737R0001X, 6R0614517HX, 6R0907379EX, 6R0907379HX, 77BO2AAY2, 8200192202, 8E0614517BDX, 8E0614517BFX, 8E0910517AK05X, 8E0914517D012, 93188091, 9660934580, 9674677580, 9676244880, A0004468289X, A0054319512X, A0064316312X, A2124312912X, A2129006201X, A4544202275X.
12 thoughts on “Audi Bosch 8.0 ABS / ESP Pump Module Repairs
  • Hi my customer has a 2006 Audi A6 2.4, typ 4f front wheel drive with an ABS problem.
    Error codes are:
    01435 brake pressure sender
    00265 ABS outlet valve front left N1202
    ABS part no is: 4F0 614 517 K

    We are in the Philippines, I would like to ask how much would repair of the ABS unit be, how much would freight cost and how do we go about sending the ABS to you.

    Thanks,
    George

    • Hi George

      Thanks for the enquiry,

      We have seen both faults before and have been able to repair them. I have sent you an email with full pricing and information.

      Kind Regards

      Jason
      SINSPEED

  • I have 05 Audi 2.4 V6 Automatic. I scanned with VAGCOM tool and as I’m having fault code- Brake Pressure Sensor 1 (G201). Part number is 4F0614517K. Please let me know how much the part and how long will it take to rebuild?

    • Hi Kamil

      Thanks for the enquiry,

      I’ve just sent you an email with full pricing and information for this type of repair.

      Kind Regards

      Jason
      SINSPEED

  • Hi .
    I’m stay in Thailand. My car Audi A6 C6 2.4 2006 4F2 has ABS module(4F0 614 517K) 2 faults
    error codes are
    01420 – High pressure valve 1 for ESP (N227)
    01435 – Brake pressure sensor 1 (G201)
    Can you fix this abs module? How long can use it after repair? And I wannt to know the price of a new module.

    Thanks,

    Bundit

    • Hi Bundit

      Thanks for the enquiry,

      We’ve sent you an email with full pricing and information including turnaround time. The unit will be returned to Thailand with a Lifetime warranty.

      Kind Regards

      Jason
      SINSPEED

  • HI GUYS, I am korean.

    my car is A6(C6) 2.4 BDW Engine

    odis Fault g201 imp.signal..

    cost , shipping is korea?

    • Hi DONGKWANGKIM

      Thanks for the enquiry,

      We have sent you an email with full information and pricing.

      Kind Regards

      Jason
      SINSPEED

  • In uk Lincolnshire i think my audi a6 module has gone how much to repair please?

    • Hi David

      Thanks for the enquiry,

      We have sent you an email with full information and pricing.

      Kind Regards

      Jason
      SINSPEED

  • Hi guys traction on the control light is on audi a3 2007 1.6. The had it scanned and came back with brake pressure sensor fault.

    • Hi Dave

      Thanks for getting in touch,

      We have sent you an email with full details and pricing.

      Kind Regards

      Sophie
      SINSPEED
