29 May, 14

Bosch 8.0 ABS / ESP Module Faults – Testing & Repairs

Posted in ABS, Audi, BMW, Citroen, Fiat, Ford, Honda, Hyundai, Iveco, Lancia, LDV, Mercedes-Benz, Mitsubishi, Nissan, Peugeot, Renault, Saab, Seat, Skoda, Toyota, Vauxhall / Opel, Volkswagen

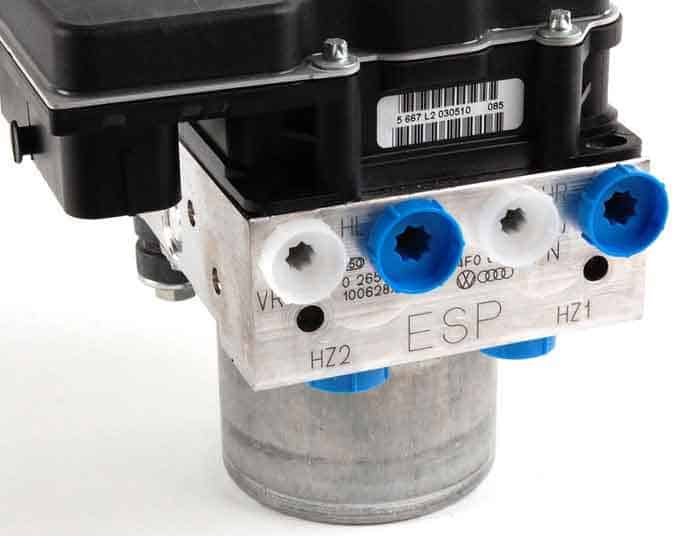

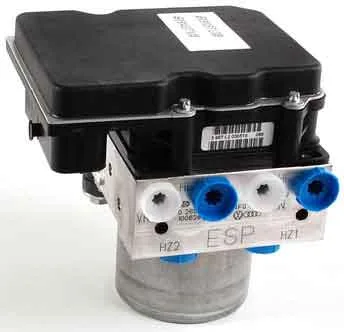

Bosch 8.0 ABS / ESP Pump TestingBosch 8.0 ABS / ESP Pump Module Problems
The Bosch 8.0 ABS / ESP Modulator unit is much more complex than the earlier Bosch 5.3 and Bosch 5.7 ABS ECU’s. We have been successfully repairing these units for just over 5 years now and are able to fully test, repair and rebuild these units with a lifetime warranty.

Most commonly we’re seeing failed units come from Audi A6 / S6 Quattro (4F2 / 4F5) manufactured between 01/2005 – 06/2006 but the same failing part is fitted widely to a variety of vehicles including:

Vehicle ListVehicle ListVehicle List
Audi A4Audi A5Audi A6
Audi A7Audi S4Audi S6
Audi RS4Audi Q5Audi R8
BMW X3BMW X5Citroen Berlingo
Citroen Berlingo MFCitroen C1Citroen C4
Citroen NemoCitroën Xsara Picasso N68Fiat 500
Fiat Ducato 3 250Fiat Grande Punto 199Fiat Idea
Fiat Panda 169Fiat Punto 188 Fiat Scudo 270
Fiat Stilo 192Ford Mondeo III B5YFord Ranger
Ford TransitHonda CivicHyundai Getz TB
Iveco DailyLancia MusaLDV Maxus
Mercedes B-Class B180Mercedes B-Class B200Mercedes B-Class B250
Mercedes E-Class E220Mercedes E-Class E250Mercedes E-Class E350
Mercedes E-Class E500Mercedes Smart ForFourMercedes Sprinter
Mitsubishi Colt VIMitsubishi Colt VIINissan Kubistar X76
Nissan QashqaiNissan Micra III K12Peugeot 2007
Peugeot 3008Peugeot 5008Peugeot Expert
Renault ModusSaab 9-5Seat Ibiza
Skoda FabiaToyota AvensisToyota Aygo
Vauxhall (Opel) Corsa DVolkswagen (VW) CrafterVolkswagen (VW) Polo
Lamborghini Gallardo

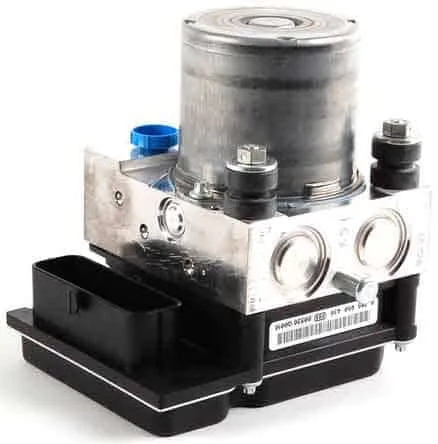

The faults with this type of unit can vary quite a bit. Below we’ve listed just some common faults:Bosch 8.0 ABS / ESP Pump Problems

  • 01435 – Brake Pressure Sensor 1 (G201): Implausible Signal 008 – Implausible Signal
  • 01420 – Driving Dynamics Regulation High Pressure Switch Valve 1 N227 – Intermittent
  • 01418 – Driving Dynamics Regulation Switch Valve 1 N225 – Intermittent
  • ABS / ESP / ASR / TCS / DCS (Traction) Light On
  • Wheel Speed Sensor Faults
  • No Communication Fault

Our Bosch 8.0 ABS / ESP Pump Module Repair Service
If your Bosch 8.0 ABS / ESP module has failed, we’re able to fully test and rebuild the unit using new genuine OEM components to ensure that each and every repaired and rebuilt ABS pump meets & exceeds OE specifications. All of our remanufactured ABS pumps come with a Lifetime warranty and will not require coding back to the vehicle.

We also offer a professional diagnosis & fitting service if required.

Bosch 8.0 ABS / ESP Module Part Number
Below is a list of common part numbers we’ve found associated with this type of ABS module. If you have any queries, you can call us on 0203 815 9441 and we’d be happy to assist you.

Bosch PartnumberOEM Partnumber
0265 900 324BMW 34516768829-01
0265 950 318PSA 9665106680
0265 950 353VAG 4F0 614 517 D
0265 950 372VAG 4F0 910 517 L
0265 950 414VAG 4F0 910 517 K
0265 950 430VAG 6R0 907 379 H
0265 950 474VAG 6R0 907 379 E
0265 950 505VAG 8E0 910 517 AK 05
0265 950 429VAG 8E0 914 517 D0 12
0265 950 545Mercedes A2129006201
0265 950 742VAG 4F0 614 517 L
0265 950 749VAG 4F0 910 517 L 009
0265 950 824VAG 4F0 614 517 L 03
0265 950 962VAG 4F0 614 517 AA
0265 950 986VAG 4F0 614 517 K
0265 951 048VAG 4F0 614 517 N
0265 951 21351771148
0265 951 2233451 6762059 01
0265 951 738Mercedes A0004468289
0265 955 0005532809
0265 950 338VAG 8E0 614 517 BD
0265 950 351VAG 8E0 614 517 BF
0265 950 360Mercedes A0054319512
0265 950 407Mercedes A4544202275
0265 234 263Honda 57110SMGG012M1
0265 235 1034454005071
0265 950 557445400F030
0265 234 2609660934580
0265 800 362Mercedes A0064316312
0265 800 3634A90AL1799
0265 800 37555831
0265 800 376Mercedes A2124312912
0265 800 377Nissan 47660-JD01D
0265 800 42210330 U0213
0265 800 441110403-2-0661
0265 800 4619676244880
0265 800 4959674677580
0265 800 511VAG 6R0 614 517 H
0265 800 5798200192202
0265 233 33777BO2AAY2
0265 234 0356768829 01
0265 234 097VAG 4F0 910 517 D
0265 234 148VAG 4F0 614 517 BOJ
0265 234 227VAG 4F0 910 517 AD 007
0265 234 336VAG 6Q0 614 417 M
0265 235 054VAG 6Q0 614 417 H
0265 235 097VAG 6Q0 907 379 AB
0265 235 394VAG 6Q0 907 37 R 0001
0265 235 406VAG 6Q0 907 379 R 0003
0265 230 017VAG 6Q0 614 117 L
0265 230 289VAG 6Q0 614 117 Q
0265 230 37350407 5551
0265 236 310024027
0265 230 68650407 5553
0265 230 30493188091
0265 239 000553015
0265 234 07513236012 AQ
0265 234 09544510 - 0H010
0265 234 11451761005
0265 234 212VAG 6Q0 614 117 S
0265 231 425
0265 231 426
0265 231 450
0265 231 452
0265 231 537
0265 231 579
0265 231 617
0265 231 672
0265 231 712
0265 230 038400 614 517 E
Tags : Bosch 8.0 ABS / ESP Module Problems, Bosch 8.0 ABS Pump Faults, Bosch 8.0 ESP Pump Error.
34 thoughts on “Bosch 8.0 ABS / ESP Module Faults – Testing & Repairs”

  • I have a peugeo 407 2ltr diesel, when i bought this car it had brake pedal creep under Pressure when running but a solid pedal with th engine turned off, i have check over the braking sys and can find no faults, i tried bleeding the brakes with Different methods but nothing works, i suspec the abs modul might have been changed before i Bought this car, can you help in any way.

    Reply

    • Hi Tom

      Thanks for the enquiry,

      We can certainly help – I have sent you an email with information and pricing around our diagnostic services to investigate and rectify the fault you are experiencing.

      Kind Regards

      Jason
      SINSPEED

      Reply

  • Hi – I have an 05 Audi A6 2.7 TDI Quattro with the usual selection of ABS lights and errors + code 01420 – could you advise on repair cost for the ABS module 4F0910517L . I’m Bulgaria based.

    Reply

    • Hi Ivan

      Thanks for the enquiry,

      I have sent you an email with full information and pricing.

      Kind Regards

      Jason
      SINSPEED

      Reply

      • I have a nissan micra 1.6sr k12 it has a fault code c10c3 can you give me a price on repair

        Reply

        • Hi Shane

          Your enquiry has now been forwarded to the relevant team and they shall be in touch with you shortly via email.

          Kind Regards

          SINSPEED

          Reply

  • Hi mate i got a MITSUBISHI. Abs pump playing. By sticking. Can you do anything

    Reply

    • Hi Simon

      Thanks for the enquiry,

      I have sent you an email with full information and pricing.

      Kind Regards

      Jason
      SINSPEED

      Reply

  • Nissan Micra 1.6cc 2007 has esp abs and handbrake light on also brake pedal feels spongy thankyou.

    Reply

    • Hi Alan

      Thanks for the enquiry,

      I have sent you an email with full information and pricing.

      Kind Regards

      Jason
      SINSPEED

      Reply

  • Hi I have issues with my Audi A6 brakes. I am getting the following error

    01435 – Brake Pressure Sensor 1 (G201)
    008 – Implausible Signal

    my ABS module number is 4F0 910 517 L.
    Could you send me details on a fix for this please.

    Kindest regards,

    dean.

    Reply

    • Hi Dean

      Thanks for the enquiry,

      The Brake Pressure Sensor (G201) is external on this unit, however, the fault that you have described is very common and one that we are aware of. The common cause for this fault is a failure within the ABS module and we have a great success rate in repairing this type of unit.

      I have sent you an email with full information and pricing. If you have any questions, please reply to the email and we’ll be happy to assist you.

      Kind Regards

      Jason
      SINSPEED

      Reply

  • i need new abs control module 4F0 910 517 L
    audi a6 3.2 quattro auto 2005

    Reply

    • Hi Kris

      Thanks for getting in touch

      We have sent you an email with more information.

      Kind Regards

      Sophie
      SINSPEED

      Reply
