Summary: On a Vauxhall or Opel, C0131 is a brake-pressure sensor circuit fault — the pressure sensor built inside the MK60 ATE ABS pump has failed, so the ESP/traction-control light stays on and the ESP-OFF button does nothing. We remanufacture your original unit with an uprated sensor and return it ready to fit, with a lifetime warranty.
In this guide
- What is the Vauxhall/Opel C0131 ABS/ESP fault?
- Symptoms of C0131
- What causes C0131? The MK60 ATE internal brake-pressure-sensor design flaw
- C0131-00 vs C0131-5A and related brake-pressure codes
- How C0131 is diagnosed (the checks)
- Can you drive with C0131?
- Can C0131 be repaired, or does the ABS unit need replacing?
- How our Vauxhall/Opel ABS repair service works
- FAQs
What is the Vauxhall/Opel C0131 ABS/ESP fault?
C0131 is a brake-pressure sensor circuit fault on your Vauxhall or Opel’s ABS system. The Vauxhall/Opel service literature defines C0131 as an ABS brake-pressure-sensor circuit malfunction — the Electronic Brake Control Module (EBCM) has detected a fault in the circuit of the sensor that reports how hard the brakes are being applied. Once the module can no longer trust that pressure reading, it logs the code and warns the driver.
What makes C0131 distinctive on these cars is where that sensor lives. On the modern Vauxhall and Opel range the brake-pressure sensor is not a separate part bolted onto the brake lines — it is built inside the MK60 ATE ABS pump and modulator, as part of the combined hydraulic and electronic unit. So although the code reads as a sensor circuit fault, the sensor that has failed is integral to the pump, which is why C0131 is described as both an ABS pump fault and a brake-pressure sensor fault — both point at the same physical unit.
Because the pressure sensor feeds the Electronic Stability Programme (ESP), the most visible result is the ESP and traction-control warning staying lit — the yellow car with skid-marks beneath it — frequently with the ABS and handbrake warning lights alongside it. The code turns up across much of the post-2004 Vauxhall/Opel range, because those cars share the same style of internal-sensor ABS unit, and that internal sensor is exactly the part that fails.
Symptoms of C0131
C0131 usually announces itself on the dashboard, and because it sits in the braking and stability system those warnings are worth acting on rather than waiting to see whether they clear. The signs we see most often are:
- The ESP / traction-control warning light on and staying on — the yellow car with skid-marks below it — rather than flickering and clearing on its own.
- The ESP-OFF button having no effect: pressing it will not turn the light out, which is one of the clearest pointers to C0131 rather than a passing glitch.
- The ABS warning light, and often the handbrake light, illuminated as well, sitting alongside the ESP light.
- Stored fault code C0131 — brake-pressure sensor circuit malfunction — read from the ABS/ESP control module on a diagnostic scan, frequently logged as C0131-00.
- Braking that feels different on some cars, with the anti-lock and stability assistance no longer intervening as it should and only ordinary braking left in effect.
The tell-tale that points specifically at C0131, rather than a passing warning, is the ESP-OFF button doing nothing. Once the code is stored and the light stays on, the safe assumption is that a braking-stability system has dropped offline, so the car should be diagnosed promptly rather than driven on indefinitely.
What causes C0131? The MK60 ATE internal brake-pressure-sensor design flaw
C0131 is, at root, a design weakness rather than bad luck. On earlier Vauxhall and Opel ABS systems the brake-pressure sensor was mounted externally — on the side of the ABS pump, on the brake master cylinder, on the servo, or along the feed pipe between the master cylinder and the pump. In that position the sensor rarely gave trouble. If it ever did fail, it could simply be unbolted and replaced on its own.

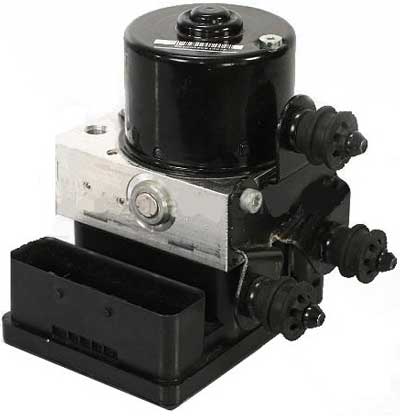

On modern Vauxhall and Opel cars built from around 2004 onwards, the MK60 ATE ABS pump moved that sensor inside the unit. It was a space-saving design change, and it is the change that causes the problem. Sealed inside the pump body and exposed to the heat and electrical load of the assembly around it, the internal pressure sensor breaks down in service in a way the older external-sensor design did not. It is such a common failure that these units come into our workshop daily for repair and exchange.
It is worth being clear about what is not the cause. This is not something a driver brings on, and not something that resets itself once the circuit has gone. The fault sits with the brake-pressure sensor buried inside the MK60 ATE pump — the known weak point these units are built around — and because the sensor cannot be reached without opening the unit, the whole assembly has historically been condemned when only one component inside it has actually failed.
C0131-00 vs C0131-5A and related brake-pressure codes
C0131 turns up with more than one sub-type, and the suffix tells you how the module saw the fault — but both common variants point at the same brake-pressure-sensor circuit inside the ABS pump.
C0131-00 — sometimes written C0131 SYM00 — is the headline form: a straightforward brake-pressure sensor circuit malfunction. This is the code most owners and garages read off the scanner. C0131-5A is the plausibility variant: the EBCM has decided the traction-control-system pressure-circuit signal is no longer plausible — in other words the brake-pressure reading it is receiving does not make sense against what the rest of the system expects. The wording differs, but the part in question is the same: the brake-pressure sensor circuit built into the MK60 ATE unit. If your car has logged C0131-5A, the sensible step is the same as for C0131-00 — have the unit read and tested to confirm it.
C0131 also sits within a wider family of brake-pressure DTCs that the Vauxhall/Opel ABS diagnostics group together — the C0131 to C0139 range, all of which relate to the brake-pressure circuit. C0136, for example, is defined as a base brake-system pressure circuit fault. We mention the family only so the codes are recognisable; we will not put a definition against the codes in between, because the head fault on these cars — and the one this page is about — is C0131 itself: the internal brake-pressure sensor that the MK60 ATE unit is known for.
How C0131 is diagnosed (the checks)
Because C0131 reports a sensor that is built into the ABS pump, the job on diagnosis is to confirm the fault really is the internal pressure sensor — and not something masquerading as it — then to put the unit right rather than simply clear the code. In practice that means confirming the module communicates on the diagnostic line, checking the brake-pressure-sensor circuit along with its wiring and earth so a damaged loom or connector is not blamed on the sensor, and then bench-testing the unit itself. You cannot tell any of that from the dashboard alone, which is why the pump is properly tested. The table below summarises how the fault presents across the common Vauxhall/Opel models and the thinking behind it.
| Vauxhall / Opel model (years / platform) | How the fault presents / related codes | Likely culprit: brake-pressure sensor vs full ABS pump-module | Repair route |
|---|---|---|---|
| Vauxhall / Opel Astra (post-2004 MK60 ATE) | ESP/traction light stays on and the ESP-OFF button has no effect; often the ABS and handbrake lights too. Stored code: C0131-00 (or C0131-5A). | Internal brake-pressure sensor within the MK60 ATE ABS pump — not the external hydraulics and not a wheel-speed sensor. | Remanufacture the original unit: modify it so the sensor is no longer subject to the internal failure, and fit an uprated pressure sensor — no new pump needed. |
| Vauxhall / Opel Corsa (post-2004 MK60 ATE) | ESP/traction warning on with the ESP-OFF button doing nothing; ABS light frequently alongside. C0131 stored. | Same internal brake-pressure sensor design; confirm against the stored code before condemning the whole pump. | Remanufacture of the original unit; uprated sensor fitted, returned ready to fit with no coding required. |
| Vauxhall / Opel Zafira (post-2004 MK60 ATE) | ESP/traction and ABS lights on; C0131 logged, sometimes with the plausibility variant C0131-5A. | Internal brake-pressure sensor inside the MK60 ATE pump-module — repairable on the unit itself. | Send the unit in; we identify it from the part number and remanufacture with an uprated sensor. |
| Vauxhall / Opel Meriva (post-2004 MK60 ATE) | ESP/traction light on with C0131; the ESP-OFF button has no effect. | Internal brake-pressure sensor — an in-unit repair, not an automatic full-unit swap. | Mail-in remanufacture; uprated sensor, lifetime warranty. |
| Vauxhall / Opel Vectra (years vary — confirm by part number) | ESP/traction warning with C0131 stored; ESP-OFF button inactive. | Internal brake-pressure sensor on MK60 ATE-equipped cars; confirm the unit by its part number. | Remanufacture the original unit with an uprated sensor rather than fit a like-for-like part. |
The table is a decision aid covering representative models — the MK60 ATE unit is fitted across much of the modern Vauxhall/Opel range, so the full application list is broader than the rows above. You can see the complete list of affected vehicles below.
| Common Vehicles | Common Vehicles | Common Vehicles | Common Vehicles |
|---|---|---|---|
| Vauxhall Astra | Vauxhall Omega | Vauxhall Vectra | Vauxhall Zafira |
There are hundreds of ABS pump part numbers affected by this fault. If you are not sure whether yours is one of them, you do not need to work it out from a list — send us your part number and we will identify your exact unit.
| OEM | ATE |
|---|---|
| 13213610 AL | 10.0206-0206.4 |
| 13213608 AJ | 10.0206-0208.4 |
| 13244860 BJ | 10.0206-0287.4 |
| 13246535 BL | 10.0206-0290.4 |
| 13246537 BN | 10.0206-0292.4 |
On the bench we recreate the heat and load the unit sees in the car, so the sensor fault that keeps re-triggering C0131 on your driveway shows itself where we can correct it. If you are not certain which ABS unit your car has, send us the details through our repair form and we will identify it from the part number — or browse our Vauxhall/Opel ABS pump and module repairs to see the units we cover.
Can you drive with C0131?
Treat C0131 as a reason to have the car checked rather than to carry on regardless. With the fault stored, the ESP and traction-control systems are not doing their job — the stability system has lost the brake-pressure reading it depends on — and you should take real care, because the safety assistance you would normally rely on is not there.
On ordinary roads at ordinary speeds a Vauxhall or Opel with C0131 may feel much as it always does, and your standard brakes will still slow the car. What you lose is the layer that works hardest when it matters most: under heavy or emergency braking, on a slippery surface, or in a sudden swerve, the anti-lock and stability functions cannot intervene as they are designed to — precisely when you would want them.
Our advice is to drive only if you genuinely have to while the ESP or ABS light is on, and to have the fault diagnosed without delay. We do not recommend resetting the code, recoding the unit or attempting any repair on the ABS pump yourself. This is a braking-safety system, modifying the controller without the right equipment and knowledge puts more than your own car at risk, and the right course is to have the unit tested and put right properly.
Can C0131 be repaired, or does the ABS unit need replacing?
Most main dealers and general garages answer C0131 with a complete new ABS pump and module, because replacing the unit is the only route open to them. A specialist remanufacturer can repair the unit at component level instead, and that changes the answer — in the great majority of cases C0131 is a repair, not a replacement.
There is a deeper problem with simply fitting another unit. A brand-new replacement is built to the same design as the one that failed, with the same pressure sensor in the same internal position — so it carries the same design fault and can go on to develop the very same C0131 in the future. A used or salvage unit is a bigger gamble still: it may already be on its way to failing, and it usually has to be coded to your car first. Either way, a like-for-like swap does not address the root cause; it just resets the clock on it.
Our approach is different, and it is the heart of what we do on these Vauxhall and Opel units. Rather than return the pump to standard and wait for it to fail again, we work on the root cause: we modify the unit and fit an uprated, redesigned pressure sensor in place of the original, so the sensor is no longer subject to the internal failure that breaks the standard part down. In effect we bring the unit back towards the more robust arrangement of the earlier external-sensor design — the one that did not fail — while keeping the pump matched to your car. The work is carried out at circuit-board level by our in-house electronic and hydraulic engineers, using brand-new, OEM-quality parts so the rebuilt unit meets and exceeds the original specification.
Because we rebuild the unit that is already matched to your car, it keeps its programming — our remanufactured Vauxhall/Opel ABS pumps come back ready to fit, with no coding or programming required in most cases. Every unit is proven on our in-house Hardware-in-the-Loop test rigs, which simulate the real-world heat, vibration and load the pump sees in service, and the repair is backed by a lifetime, unlimited-mileage warranty — these units are built to last the life of the vehicle, as they should.
How our Vauxhall/Opel ABS repair service works
Our Vauxhall/Opel ABS repair is a mail-in, repair-and-return service — there is no need to bring the car anywhere or book it in. You remove the ABS pump and module, send it to us, and we return it ready to fit, typically within a few working days, and we will always tell you if that is going to vary.
- Get in touch. Tell us your vehicle and what it is doing through our repair form, or contact us if you are not sure which ABS unit your car has. Pass us the part number and we will identify your exact unit.
- Remove and send your unit. Keep the control module and the pump together and send the complete assembly, so we can test it as the single unit it works as on the car.
- We test and diagnose. Your unit is bench-tested to confirm the internal brake-pressure sensor is the cause of C0131 and to rule out anything else, and we report what we find before any work goes ahead. If the unit turns out not to be faulty, we will tell you.
- We remanufacture. Our engineers modify the unit and fit an uprated, redesigned pressure sensor, using brand-new OEM-quality parts, so you are not left with the same design flaw that failed first time.
- We return it ready to fit. The rebuilt unit comes back ready to fit with no programming needed in most cases, and covered by a lifetime, unlimited-mileage warranty.
All of this is done in a cleanroom-standard, ESD-safe workshop using dealer-level diagnostic tools to test and calibrate the unit before it is dispatched. If you would like to see the wider range we cover, our ABS pump and module repair category lists the units we remanufacture across other makes and models.
FAQs
Can I drive with C0131?
You should treat it as a reason to stop and have the car checked rather than to keep driving. Your ordinary brakes will still work, but with C0131 stored the ABS and stability systems are not — so under heavy or emergency braking, or on a slippery road, the assistance you would normally rely on is not there. Drive only if you genuinely have to while the ESP or ABS light is on, and have the unit diagnosed without delay.
What does C0131 mean on a Vauxhall or Opel?
C0131 is a brake-pressure sensor circuit malfunction. The Electronic Brake Control Module has detected a fault in the circuit of the sensor that tells it how hard the brakes are being applied, and on these cars that sensor is built inside the MK60 ATE ABS pump and module. The result is the ESP and traction-control light staying on, often with the ABS and handbrake lights, and the ESP-OFF button having no effect. It is a known weak point of the internal-sensor design, and it is repairable.
Is C0131 the brake-pressure sensor or the ABS pump?
It is both, in effect. C0131 reports the brake-pressure sensor circuit, but on the modern Vauxhall/Opel range that sensor is built inside the ABS pump and module rather than being a separate part on the brake lines. So the failed component is the pressure sensor, and the unit that has to be worked on is the pump it lives in — which is why the fault is described both ways.
Can C0131 be repaired, or does the ABS unit need replacing?
In most cases it can be repaired, and a full replacement is rarely necessary. A new unit is built to the same design and can develop the same fault, while a used one usually needs coding and may be close to failing itself. We repair your original unit instead — modifying it and fitting an uprated, redesigned pressure sensor so it is no longer subject to the internal failure, and returning it ready to fit with a lifetime warranty.
What is C0131-5A (pressure circuit ‘not plausible’)?
C0131-5A is a plausibility variant of the same fault. Instead of reading the circuit as a straight malfunction, the module has decided the traction-control pressure-circuit signal is no longer plausible — the brake-pressure reading it is getting does not make sense against the rest of the system. It points at the same brake-pressure sensor inside the MK60 ATE unit as C0131-00, so the right step is the same: have the code read and the unit tested to confirm it before any part is fitted.
Final thoughts
C0131 is a fault worth diagnosing properly rather than throwing a new part at, because the failure is built into the design — the brake-pressure sensor sits inside the MK60 ATE ABS pump, and a like-for-like replacement puts the same weakness straight back on the car. Fitting a new unit is the slow route and it can simply repeat the fault; repairing your original is usually the better answer. We modify the unit, fit an uprated pressure sensor so it is no longer subject to the internal failure, and return it ready to fit and matched to your car, with a lifetime warranty behind the work. If your Vauxhall or Opel is showing C0131 or an ESP light that will not clear, send us the unit and we will put your braking system right.
