How To Test & Replace ABS Reluctor Rings

Table of Contents

1. What an ABS Reluctor Ring Does
2. Passive vs Active Sensors — How the Ring Type Affects Diagnosis
3. The Three Types of Reluctor Ring
4. Symptoms of a Failing Reluctor Ring
5. Common Causes of Reluctor Ring Failure
6. Step-by-Step: How to Test a Reluctor Ring
7. How to Replace a Press-Fit Reluctor Ring
8. When the Ring is Not the Problem
9. Maintenance: Preventing Ring Failure
10. FAQs
11. Final Thoughts

What an ABS Reluctor Ring Does

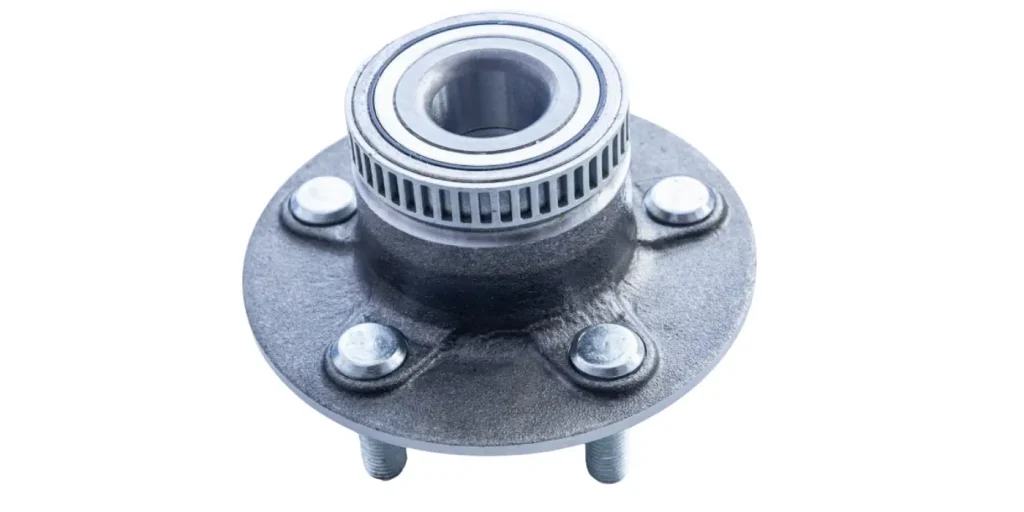

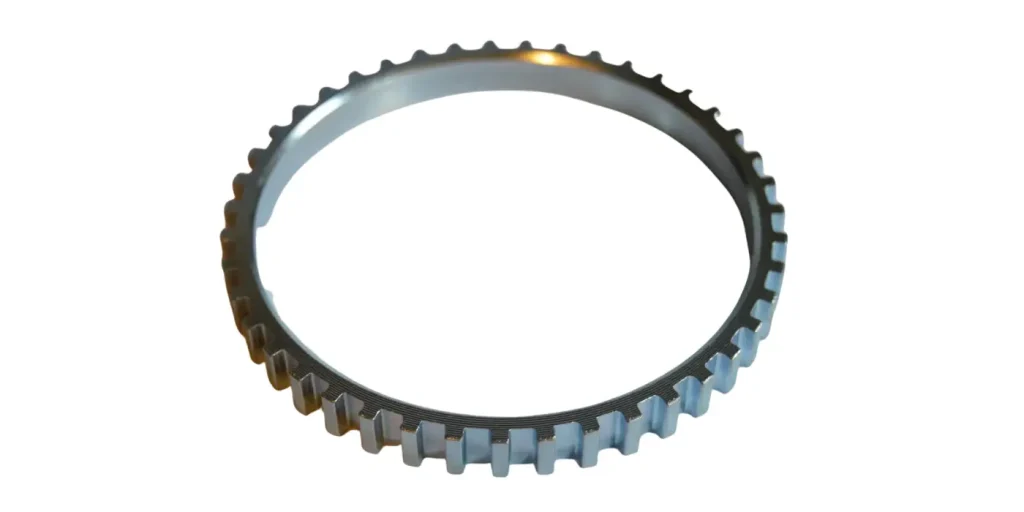

The reluctor ring is a precisely toothed metal ring pressed onto the wheel hub, driveshaft, or CV joint — or in many modern vehicles, integrated directly into the wheel bearing assembly. As the wheel rotates, the teeth of the ring pass the tip of the wheel-speed sensor, alternately creating and breaking a magnetic field. Each pass of a tooth generates an electrical pulse, and the frequency of those pulses tells the ABS module exactly how fast that wheel is turning.

A ring with 48 teeth spinning at one revolution per second generates 48 pulses per second. At 60 mph, the frequency reaches into the hundreds of pulses per second — and the ABS module processes all four wheels’ worth of data simultaneously, comparing them in real time. The instant one wheel’s pulse frequency drops relative to the others under braking — indicating impending lock-up — the module modulates brake pressure on that wheel.

Even a single missing, cracked, or contaminated tooth corrupts the signal at that point in every revolution. The module detects the anomaly, stores a fault code, disables the ABS system as a safety precaution, and illuminates the warning light.

For a full explanation of how the ABS module processes this data and controls the hydraulic unit: What Is an ABS Pump + How Does It Work? →

Passive vs Active Sensors — How the Ring Type Affects Diagnosis

The type of wheel-speed sensor fitted to your vehicle determines both the ring design and the diagnostic approach. Understanding which type you are dealing with before picking up a multimeter saves significant time.

The overwhelming majority of UK vehicles on the road today use active sensors with a digital square-wave output. Passive inductive sensors are essentially confined to pre-1998 vehicles. If you are unsure which type is fitted, check your vehicle’s service manual — the sensor will either have two wires (could be either type) or three wires (always active).

The Three Types of Reluctor Ring

Not all reluctor rings are the same component, and this matters enormously for diagnosis and replacement. There are three main configurations found on UK vehicles:

Identifying which type is fitted to your vehicle before beginning any work prevents wasted effort. On vehicles with an integrated bearing assembly, removing the ring from the hub to inspect it means replacing the entire bearing — which changes the economics of the repair significantly.

Symptoms of a Failing Reluctor Ring

Reluctor ring faults produce a distinct pattern of symptoms. The characteristic that most reliably distinguishes a ring fault from an internal ABS module fault is that ring faults are often speed-dependent or intermittent — appearing above a certain speed, only in wet conditions, or only under hard braking — whereas internal module faults tend to produce a permanent, constant warning light from the moment they occur.

The intermittent nature of many ring faults — ABS light that comes and goes, or only appears on certain road surfaces — makes them harder to diagnose than a permanent fault. This is also why a road test during diagnosis is essential: a fault that cannot be reproduced during a stationary inspection may appear instantly once the vehicle is driven.

Common Causes of Reluctor Ring Failure

In the UK, corrosion from road salt is by far the most prevalent cause, particularly on vehicles that are driven year-round in areas that receive heavy winter gritting. Rings on rear axles and CV joints are more exposed to road spray than those integrated into front bearing assemblies, and tend to corrode faster as a result.

Step-by-Step: How to Test a Reluctor Ring

Work through these steps in order. The goal is to definitively confirm or rule out the ring — and the sensor — before drawing any conclusions about the ABS module itself.

Step 1 — Scan for fault codes and note the affected wheel

Connect an ABS-capable scan tool and read the stored fault codes. A generic OBD-II reader often cannot access the ABS module — use a professional scan tool or a make-specific tool (VCDS for VAG, ForScan for Ford, Carly or ISTA for BMW). Note which wheel position is flagged. Clear the codes, road test the vehicle, and re-scan. If the same code returns consistently at the same wheel, that is your starting point. If the code returns at different wheels on different occasions, the fault may be in shared wiring or the module itself.

Step 2 — Visual inspection of the ring

Jack the vehicle safely and remove the wheel at the flagged corner. With a torch, inspect the reluctor ring methodically:

• Rotate the hub slowly by hand and examine the full circumference of the ring for cracks, missing teeth, or chips.
• Look for rust expansion between the ring and its mounting surface — the ring may appear to have lifted or bowed slightly outwards.
• Check for contamination: brake dust packed between teeth, metallic shavings from worn pads or discs, or grease from a CV boot failure coating the ring surface.
• Inspect the sensor tip for corrosion, physical damage, or metallic debris stuck to its magnetic end.

Many ring failures are visible at this stage. A crack is often subtle — look carefully between each pair of teeth, working around the entire ring, not just the top.

Step 3 — Measure the air gap

Using feeler gauges, measure the distance between the sensor tip and the ring teeth at several points around the ring’s circumference. The gap should be consistent. Passive sensors require 0.4–1.2 mm; active sensors tolerate 0.5–2.0 mm. Inconsistent gap readings point to either ring warping or excessive wheel bearing play. Check for bearing play by gripping the tyre at 9 and 3 o’clock and rocking firmly — any perceptible movement indicates bearing wear.

Step 4 — Clean first

Before replacing anything, clean the ring thoroughly with brake cleaner and a soft brush, and reseat the sensor connector firmly. Clear the fault codes and road test. A significant proportion of intermittent ring faults are caused by contamination alone. If the fault does not return, cleaning was the fix. If it returns, continue.

Step 5 — Electrical test at the sensor

Disconnect the wheel-speed sensor connector. For passive sensors: set a multimeter to ohms and probe across the two sensor pins — expect 800–2,000 Ω. An open circuit (infinite resistance) or a short (near zero) means the sensor has failed internally. For active sensors: with the ignition on, back-probe the supply pin and check for 8–14 V. Spin the wheel by hand and check that the signal wire switches between approximately 7 mA and 14 mA — a stuck current reading means the sensor has failed.

Step 6 — Oscilloscope check

An oscilloscope connected to the sensor signal wire during a road test is the most reliable way to identify a ring fault. A healthy ring produces a clean, consistent waveform — sine wave for passive sensors, square wave for active — with frequency rising linearly with speed. A cracked or missing tooth produces a visible drop-out at regular intervals (once per revolution). A contaminated ring surface typically produces a noisy, irregular trace. This test catches faults that a stationary inspection entirely misses.

Step 7 — Confirm with a live data road test

With the scan tool connected showing live wheel-speed data, drive the vehicle through the speed range and braking conditions that typically trigger the fault. Watch for one wheel’s speed reading dropping to zero briefly, jumping erratically, or showing a value inconsistent with the other three. This confirms the fault is in that corner’s ring or sensor rather than the ABS module.

How to Replace a Press-Fit Reluctor Ring

This section applies to press-fit rings on CV joints or driveshafts. If your vehicle has an integrated bearing hub assembly, the bearing must be replaced as a complete unit — the ring cannot be separated.

Safety note: Braking system work requires proper safety precautions. Always use rated axle stands — never rely on a hydraulic jack alone. Wear eye protection. If you are not confident at any stage, stop and consult a professional.

Tools required

• Jack, axle stands and wheel brace
• Brake cleaner and wire brush
• Blow torch (preferably MAPP gas for adequate heat output) or oven capable of reaching 230°C
• Heat-resistant gloves
• Pipe or socket of appropriate diameter to use as a drift
• Soft-faced mallet or hammer and steel drift
• OBD-II / ABS-capable scan tool to clear codes after fitting

Removal

1. Lift the vehicle on axle stands. Remove the wheel and disconnect the wheel-speed sensor to prevent heat damage during removal.
2. Locate the ring on the CV joint or driveshaft. If the driveshaft needs to be removed for better access, do so now following your vehicle’s service manual.
3. For a corroded or tightly seated ring: use a Dremel or cutting disc to cut two slots through the ring at opposite sides, then split it free with a chisel. Take care not to damage the CV joint or driveshaft surface beneath.
4. Clean the mounting surface thoroughly with a wire brush, brake cleaner, and fine sandpaper until you reach bare metal. The surface must be completely clean and smooth for the new ring to seat correctly.

Installation

5. Heat the new ring evenly using a blow torch — working around the circumference slowly — until the metal just begins to change colour (a faint blue tinge indicates sufficient expansion). Alternatively, heat in an oven at 220–230°C for 10–15 minutes.
6. Working quickly with heat-resistant gloves, position the ring on the mounting surface and tap it evenly into place using a pipe or socket that matches the ring diameter as a drift. Tap evenly around the circumference — do not drive one side down before the other, as this risks cracking the ring.
7. Allow the ring to cool completely before handling. As it contracts it forms a secure interference fit. Do not attempt to cool it rapidly with water.
8. Refit the wheel-speed sensor, ensuring it seats fully in its holder and the connector locks firmly. Refit the wheel and torque the nuts to specification.
9. Clear all stored fault codes with a scan tool. Road test across the speed range and conditions that previously triggered the fault. Re-scan to confirm no codes have returned.

When the Ring Is Not the Problem

If you have worked through every step in this guide — the ring is visually intact, the air gap is correct, the wiring is sound, the sensor tests clean, the oscilloscope shows a perfect waveform — and the ABS warning light is still on with a wheel-speed sensor fault code, the fault has moved inside the ABS module itself.

This is the progression we see constantly at Sinspeed. An internal fault in the ABS ECU — a failed brake pressure sensor, corroded circuit board traces, or a communication failure — can produce fault codes that look identical to an external ring or sensor fault. The module stores a code referencing a specific wheel, the ring and sensor both test healthy, and the fault refuses to clear. At that point the unit needs to be removed and sent for specialist diagnosis on dedicated test rigs.

At Sinspeed we have been remanufacturing ABS pumps and modules since 2007. We test every unit on vehicle-simulation rigs that replicate real driving conditions — heat, vibration, and hydraulic load — and return each unit fully plug-and-play with a lifetime, unlimited-mileage warranty. No coding required in the vast majority of applications.

Explore our ABS pump & module repair services →

Full ABS pump fault guide (symptoms, fault codes, causes) →

Maintenance: Preventing Reluctor Ring Failure

Most ring failures in UK conditions are caused by corrosion — which is predictable and preventable with a small amount of routine care:

• During every brake pad or disc change, remove the wheel and inspect the ring visually. Clean off any debris or corrosion build-up with a soft brush and brake cleaner.
• Apply a thin coat of copper grease or anti-corrosion compound to the ring’s mounting surface and the back face of the ring itself during any driveshaft or bearing work — not to the tooth surfaces, which must remain clean.
• Replace brake fluid every two years. Contaminated fluid degrades hydraulic seals and deposits particulate debris that can migrate towards the bearing area, accelerating wear.
• After any wheel bearing, CV joint, or driveshaft replacement, always inspect the ring for correct seating, check the air gap, and clear any fault codes before returning the vehicle to service.
• Have the ABS system scanned annually alongside a service. Early fault codes — particularly intermittent ones — caught before they become permanent are much cheaper to resolve.

FAQs

What is the difference between a reluctor ring, tone ring, and ABS ring?

They are the same component described by different names. Reluctor ring and tone ring are the most technically accurate terms. ABS ring is common in everyday use. All refer to the toothed ring that generates the wheel-speed signal.

Can I drive with a faulty reluctor ring?

With caution, and only for short distances to reach a garage. Your standard brakes will still operate, but the ABS will be disabled — meaning wheels can lock under hard braking on slippery surfaces. An illuminated ABS light is also an automatic MOT failure on vehicles registered after July 2003.

How do I know if it’s the ring or the sensor that’s failed?

A visual inspection of the ring, an air gap check, and an electrical test of the sensor will differentiate them in most cases. An oscilloscope showing a clean waveform with regular drop-outs at one point per revolution is the most conclusive evidence of a ring fault. A sensor that fails its resistance or current-draw test has failed internally, regardless of the ring’s condition.

My ABS light only comes on above 30 mph — is that the ring?

Almost certainly yes. This is the classic pattern of a cracked or partially corroded ring — the signal drop-out is only detectable at the higher pulse frequencies generated at speed. At low speeds, the pulse is slow enough that the missing signal at the cracked point is not treated as an error. Inspect the ring carefully for a hairline crack between two teeth.

The fault code says wheel speed sensor — do I replace the sensor or the ring?

Do not replace either until you have inspected both. A fault code referencing a wheel-speed sensor circuit tells you which corner has a problem — it does not tell you whether the ring, the sensor, the wiring, or the ABS module is the root cause. Follow the diagnostic steps in Section 6 before ordering any parts.

Is a reluctor ring integrated into the wheel bearing on my car?

This depends on the make, model, and year. As a general guide: vehicles from approximately 2010 onwards increasingly use integrated bearing assemblies. Ford, Vauxhall, Peugeot, and Citroën models from earlier years often have accessible press-fit rings on the driveshafts. VW Group vehicles from the Golf Mk7 onwards typically use integrated assemblies. Check your vehicle’s service manual or call us with your registration and we will confirm.

I’ve replaced the ring and the light is still on — what next?

First, ensure all fault codes were cleared after fitting and that you have road-tested the vehicle. If the light returns with the same code, check the new ring is correctly seated and the air gap is within specification. If the code points to a different wheel, there may be a pre-existing fault at that corner. If you have ruled out all external causes, the fault is likely inside the ABS module itself — see Section 8 and our full repair guide: ABS Pump Repair: Symptoms, Faults & Solutions →

Can Sinspeed help if the fault turns out to be in the ABS module?

Yes — this is our core service. We remanufacture ABS pumps and modules for all makes and models, returning each unit plug-and-play with a lifetime, unlimited-mileage warranty within 2–3 working days. Customers mail units to us from across the UK and internationally. Explore our ABS repair services →

Final Thoughts

The reluctor ring is a simple component, but its position in the diagnostic chain makes it easy to overlook and easy to misdiagnose. A scan code pointing to a wheel-speed sensor circuit does not automatically mean the sensor has failed — and it certainly does not mean the ABS module has failed. Working through the ring, the air gap, the sensor wiring, and the sensor electronics in order before drawing conclusions is the approach that saves time and money.

When all external checks pass and the fault persists, the evidence points to the ABS module itself. That is where Sinspeed’s 18 years of dedicated ABS remanufacturing experience comes in. We see this exact progression every day — units arrive that have had sensors, rings, and bearings replaced, and the internal module fault that was the root cause all along is repaired on our test rigs and returned with a lifetime warranty.
