Multitronic Gearbox TCU Testing
Transmission Control Modules
9 November 2014 By 104 Comments

Audi / Seat / Skoda / VW – Multitronic DSG / CVT Transmission Controller (TCM / TCU) Repairs

S-Tronic TCU RepairsDSG / CVT Transmission Control Module Problems + Repairs
The automatic transmission fitted to VAG group vehicles, namely Audi / Seat / Skoda and Volkswagen (VW) are very commonly known for becoming faulty and causing all sorts of transmission related problems. All vehicles are affected from automatics to semi-automatics.. from Mechatronic, Multitronic and S-Tronic right down to DSG (Direct-Shift Gearbox) and CVT (Continuously Variable Transmission) vehicles.

Sometimes these faults can be corrected by a simple Gearbox oil change or software update but more commonly the fault is caused by the Transmission Control Module (TCM), also known as the Gearbox ECU.

Common DSG / CVT Transmission Controller Problems
A failed Transmission Control Unit (TCU) can cause a wide number of faults. Some faults can be intermittent or become progressively worse depending on the nature of the fault but can almost always be repaired. Below we have listed some of the most common faults our customers have experienced with their failed DSG / CVT Transmission Controllers.

  • “PRNDS” Light Flashing
  • Gearbox Going In Neutral
  • Gearbox Stops Working When Hot
  • Fail-Safe (Limp Mode)
  • Loss of Power
  • Jerking In / Out of Gears
  • Loss of Reverse Gear
  • Not Going Into Gear

Common TCM Related DTC Fault Codes
A problematic DSG controller may not bring up any warning lights or fault codes so it’s not always as easy to locate the problem. We have however compiled a small list of common DTC fault codes below which we have found to be linked to DSG Transmission Control Unit problems.

  • 18226 P1818 Pressure Control Valve 2 N216 Electric Error
  • 18222 P1814 Pressure Control Valve 1 (N215), Open / Short to Ground
  • 18223 P1815 Pressure Control Solenoid 1 (N215), Short to B+
  • 18227 P1819 Pressure Control Solenoid 2 (N216), Open / Short to Ground
  • 18228 P1820 Pressure Control Solenoid 2 (N216), Short to B+
  • 18231 P1823 Pressure Control Solenoid 3 (N217), electrical malfunction
  • 18232 P1824 Pressure Control Solenoid 3 (N217), Open / Short to Ground
  • 18233 P1825 Pressure Control Solenoid 3 (N217), Short to B+
  • 18236 P1828 Pressure Control Solenoid 4 (N218), electrical malfunction
  • 18237 P1829 Pressure Control Solenoid 4 (N218), Open / Short to Ground
  • 18238 P1830 Pressure Control Valve 4 (N218), Short to Plus
  • 18241 P1833 Pressure Control Solenoid 5 (N233), electrical malfunction
  • 18242 P1834 Pressure Control Solenoid 5 (N233) Open / Short to Ground
  • 18243 P1835 Pressure Control Solenoid 5 (N233) Short to B+
  • 18246 P1838 Pressure Control Solenoid 6 (N371), electrical malfunction
  • 18247 P1839 Pressure Control Solenoid 6 (N371) Open / Short to Ground
  • 18248 P1840 Pressure Control Solenoid 6 (N371) Short to B+
  • 19143 P2711 Unexpected / Implausible Mechanical Gear Disengagement, Intermittent
  • 17134 P0750 Control Valve 1/Solenoid Valve N88 Function Disturbance
  • 17137 P0753 Control Valve 1/Solenoid Valve N88 Electric Error
  • 17114 P0730 Gearshift-/ Transmission Surveillance Wrong Gear Transmission Ratio
  • 18165 P1757 Power Supply, Interruption
  • 17111 P0272 Rounds Count Signal From Engine ECU, No Signal
  • 17090 P0706 F125 Drive Position Sensor Signal Implausible
  • 17106 P0722 Gearbox Speed Sensor G195 No Signal
  • 18201 P1793 Gearbox Speed Sensor 2 G196 No Signal

Multitronic Gearbox TCU TestingCommon Vehicles Affected By The Famous DSG Transmission ECU Problems
The Transmission Control Module problems affect all DSG / CVT vehicles in the VAG group (Audi / Seat / Skoda / Volkwasgen). Below we have compiled a list of the common vehicles we are aware of which our customers have sent us units from.

VehicleVehicleVehicleVehicleVehicle
Audi A1Audi A2Audi A3Audi S3Audi A4
Audi S4Audi A5Audi S5Audi A6Audi S6
Audi A7Audi A8Audi Q3Audi Q5Audi Q7
Audi TTSeat AlhambraSeat AlteaSeat IbizaSeat Leon
Seat ToledoSkoda FabiaSkoda OctaviaSkoda RapidSkoda Roomster
Skoda Superb IISkoda YetiVolkswagen BeetleVolkswagen BoraVolkswagen Caddy
Volkswagen CCVolkswagen EosVolkswagen GolfVolkswagen JettaVolkswagen Passat
Volkswagen PoloVolkswagen SciroccoVolkswagen SharanVolkswagen TiguanVolkswagen Touareg
Volkswagen TouaregVolkswagen TransporterBugatti Veyron EB 16.4And More..!

Common Transmission Control Module (TCM) Part Numbers
All units from all makes and models of vehicles are affected and so the list of part numbers is endless. We have taken the time to compile an extensive list of part numbers below which we have seen in our workshop time and time again for repair or exchange. Don’t worry if you’re part number is not listed, we can still test + repair it for you but if you’re unsure then give us a call on 0203 815 9441 and we can confirm this for you.

PartnumbersPartnumbersPartnumbersPartnumbers
01J 927 156 AH01J 927 156 BG01J 927 156 CG01J 927 156 CN
01J 927 156 DB01J 927 156 FH01J 927 156 FK01J 927 156 GN
01J 927 156 HH01J 927 156 HN01J 927 156 HF01J 927 156 HT
01J 927 156 JJ01J 927 156 JK01J 927 156 JG8E0 910 155 F
8E0 910 1558E0 910 155 H8E0 910 155 K8E0 910 155 C
8E0 910 155 E8E0 910 155 G8E0 910 155 J8E0 910 155 A
8E0 910 155 B8E0 910 156 P8E2 910 155 B8E2 910 155 G
8E2 910 155 K4B0 910 1554B0 910 155 C4B0 910 155 K
4B0 910 155 P4B0 910 155 F4B0 910 155 S4B0 910 155 G
4B0 910 155 T4B0 910 155 D4B0 910 155 Q4B0 910 155 L
4B0 910 155 N4B0 910 156 B4B0 910 156 G4B0 910 156 N
4B0 910 156 H4B0 910 156 M4B0 910 156 J4B0 910 156 F
4B0 910 156 L4B1 910 155 A4B1 910 155 B4B1 910 155 L
4B1 910 155 K4B1 910 155 F4B1 910 155 G02E 927 770 E
02E 927 770 G02E 325 025 AD02E 325 025 AD Z0102E 325 025 AD Z02
02E 325 025 AD Z0302E 325 025 AD Z0402E 325 025 AD Z0502E 325 025 AD Z06
02E 325 025 AD Z0702E 325 025 AD Z0802E 325 025 AD Z0902E 325 025 AD Z0A
02E 325 025 AD Z0B02E 325 025 AD Z0C02E 325 025 AD Z0D02E 300 146 D
02E 927 770 L02E 927 770 AE02E 300 042 Q02E 927 770 AD
02E 300 041 R02E 927 777 D02E 927 770 AJ02E 927 77O AD
02E 927 777 OL02E 300 041 NE040A004161JBLR1202E 300 046 D
02E 927 770 M02E 927 770 F02W 927 770 M02E 927 777 OF
02E 927 777 OM02E 300 046 F02E 927 777 OE02E 300 046 K
02E 300 146 FP81 GF 30 00107 3102 UF00107455A28E0 910 159 C
8E0 910 157 L8E0 910 159 A8E2 910 155 D01J 927 156 CM
8E2 910 155 P01J 927 156 CS01J 927 156 ET00107375A1
8E2 910 156 Q8E1 910 155 S8E2 910 155 L8E0 910 159
8E0 910 156 L8E4 910 155 A01J 927 156 FA01J 927 156 JF
8E2 910 155 F002706598E2 910 155 A8E0 910 157 H
01J 927 156 AE01J 927 156 DS8E0 910 159 F8E0 910 156 Q
8E0 910 155 M8E0 910 159 B01J 927 156 CF8E0 910 155 Q
01J 910 156 HT8E0 910 156 H8E2 910 155 E01J 927 156 CT
8E0 910 156 K8E5 910 1558E1 910 155 B8E1 910 155 M
01J 927 156 CR8E0 910 155 P8E2 910 155 C8E3 910 155 Q
01J 927 156 EC01J 927 156 E4B1 910 155 D4F1 910 155 H
01J 927 155 JG4F2 910 155 R4F0 910 155 M4F2 910 155 N
01J 927 156 CJ8E1 910 155 N4F5 910 157 F01J 927 156 CB
01J 927 156 CH01J 927 156 DE4B0 910 155 B4F1 910 155 F
01J 927 156 K01J 927 156 FD01J 927 156 C45R4F2 910 155 S
4F2 910 155 H00402417A100402417A200402305A1
00402528A100107428A300401493A200402418A1
00402418A300107491A200107492A200107425A3
00107436A100107426A300107432A300107433A2
00107476A200107477A200107479A200107481A2
00107484A200107431A400401497A200402418A2
00402302A100107181A400107188A500402193A1
00107186A400107186A500107186A300008979A4
00008997A500008997A600008976A500008976A4
00107261A200107376A200107197A400107399A2
00008977A700008979A700402193A300107183A4
00008996A800107382A100107197A300008959A9
00107181A600008959A800107378A200402193A5
00008976A700008977A500008977A600402193A2
00107425A200107437A100107438A100107444A2
00107432A200402303A100107486A200107428A2
00107489A200107426A200107425A100107486A3
00107438A200107438A300107437A200402304A1
00107410A400401499A200401499A100107399A1
00107183A600402417A500107426A100107376A1
00008976A300107183a700107188A400107375A2
00107183A500402125A300402125A100402193A6
00008979A500107181A500008976A800008959B3
00107452A100402516A100402516A400107430A3
00107441A200107488A200401030A200402525A1
00401488A200107495A300402516A300401149A3
00107485A200107475A300107475A200107441A3
00401641A200402301A100402418A600107432A1
00402418A500107502A300107430A200402519A1
00107428A100107437A300402309A100107480A3
00107410A300107433A300107436A200107441A1
00107433A100401491A200107483A2318959
00402300A100107188A700107434A300008977A8
00107487A300107444A300107198A300107436A3
00008976A600402524A100401488A100008992A6
00107424A300107434A200107479A300107487A2
00008996A700401492A200107188A600402516A5
00107430A100008959A700107280A100107281A2
00107315A100107483A300402417A300107484A3
00107281A100402516A600402523A100107376A3
00107261A300107379A100107184A400107431A3
00107444A100402516A700107429A200107424A1
00107495A28E4 910 155 B8E0 910 155 S4B0 910 155 M
8E1 910 155 F8E3 910 155 E4F0 910 157 K8E3 910 155 F
01J 927 156 CL01J 927 156 JH01J 927 156 JE8E3 910 155 G
4B1 910 155 E4B1 910 155 N4B1 910 155 J4F1 910 155 D
4F5 910 155 R8E0 910 157 J4F0 910 157 J8E2 910 156 B
8E0 910 155 N8E2 910 155 H4F1 910 155 B8E0 910 155 T
4F1 910 155 E8E1 910 155 T4B1 910 156 D8E3 910 155 T
4B1 910 156 F01J 927 156 CQ8E1 910 155 L4F5 910 155 S
01J 927 156 CE8E1 910 155 P4B1 910 156 E4F2 910 155 G
8E0 910 155 R8E3 910 155 R8E5 910 155 J8E2 910 155 Q
4F9 910 155 B01J 927 156 DR4B1 910 155 Q8E3 910 155 J
4F5 910 157 H4E0 910 156 P4F2 910 155 D4F1 910 155 P
8E3 910 155 H4F9 910 155 D4F5 910 157 D4F5 910 155 Q

Audi A4 / A6 CVT Transmission Control Module RepairsWhen the DSG Gearbox ECU becomes faulty, your local dealer will quote you in excess of £1000.00 +VAT for a replacement TCM unit which will also require coding / programming at an additional cost. The new replacement part will come with a standard 12 month warranty. Alternatively you have the option of replacing the DSG / CVT Transmission ECU with a used second-hand part but this will come with a limited 30-90 day warranty and will also require coding / programming at an additional cost.

My DSG Gearbox ECU Is Faulty – How Can SINSPEED Help Me?
At Sinspeed we have the latest Automatic Transmission Controller Testing equipment and are able to fully bench test + repair all transmission controllers. We have all the major components in stock to carry out a successful repair and have in many cases managed to repair units others have deemed irreparable. We also carry a large number of units in stock ready for exchange and can complete all the necessary coding / programming to the units in our workshop before returning it to you – making it fully plug & play. This means you can send your part to us for repair or replacement and when you get the part back, simply plug it in and away you go.. no need for expensive dealer coding / programming!

All of our DSG / CVT Gearbox ECU’s come with a Lifetime Warranty.

Additional DSG Remapping Services For Transmission Controllers
In addition to our transmission ECU repair and replacement services, we also offer a fantastic DSG Gearbox Remapping Service which can be applied at the same time as the repair, whereby we will fine tune the mapping of the DSG controller for a greater driving experience. Some of the key benefits will be a smoother gear change with zero hesitation, zero lag and gear shift speeds increased by 20%. Full information on our DSG Remapping Service can be seen here.

If you have a faulty DSG Gearbox ECU and are looking for a repair or replacement of your damaged TCM unit then give us a call today on 0203 815 9441.

Vauxhall Brake Pressure Sensor Problems
ABS, Vauxhall / Opel
8 November 2014 By 64 Comments

Vauxhall / Opel Common ABS Pump (ESP Fault) – Brake Pressure Sensor Switch Failure

Vauxhall Brake Pressure Sensor ProblemsVauxhall / Opel Brake Pressure Sensor – ESP Fault
If you have a modern Vauxhall built after 2004 then there is a good chance your vehicle is fitted with the common failing MK60 ATE ABS pump. Earlier vehicles would have an early version of the ABS pump where the Brake Pressure Sensor is mounted externally either on the side of the ABS pump, side of the brake master cylinder, on the brake servo or along the feed pipe between the master cylinder and ABS pump itself. However, the MK60 ATE ABS pump is manufactured with the brake pressure sensor installed internally and is such a common failure that we are seeing several of these units in our workshop daily for repair and exchange.

How To Detect A Brake Pressure Sensor Failure / ESP Fault?
When the brake pressure sensor has failed, the fault symptoms can vary from vehicle to vehicle but generally speaking you will have the ESP / Traction light illuminated on the dash. The traction light will be the yellow car with skid marks below it. You may also have the ABS light and handbrake light illuminated on the dash and if you have an ESP button, the light on the button may be illuminated and pressing the button will have no affect.

Common DTC Fault Code Associated With This Fault
C0131 – Pressure Sensor Circuit Malfunction (00) – Present.

Common Vauxhalls Affected By The Brake Pressure Sensor Fault
This is an industry-wide fault which affects almost all makes of vehicles as almost all of them are being fitted with this type of ABS pump unit. Below you can see a short list of Vauxhalls which we have found to be affected by the common Brake Pressure Sensor ESP Fault.

Common VehiclesCommon VehiclesCommon VehiclesCommon Vehicles
Vauxhall AstraVauxhall OmegaVauxhall VectraVauxhall Zafira

Common Vauxhall ABS Pump Part Numbers Affected
There will be 100s of part numbers affected by this common type of failure and below we have listed the most common part numbers which are flagging up each week from units being sent in to us. Don’t worry if you’re part number isn’t listed, we can repair all of them but if you’re unsure, give us a call on 0203 815 9441 with your part number to confirm.

OEMATE
13213610 AL10.0206-0206.4
13213608 AJ10.0206-0208.4
13244860 BJ10.0206-0287.4
13246535 BL10.0206-0290.4
13246537 BN10.0206-0292.4

If you have a brake pressure sensor fault then chances are your local dealer will advise on a brand new replacement part at a very high cost. The new replacement part will also require coding / programming at an additional cost and come with a limited 12 month warranty. This new part will be a like-for-like part which will have the same design fault as the original unit in your vehicle – so you can expect it will fail again in the future.

Most workshops may even advise replacing the unit with a cheap second-hand used part but that will also require coding / programming at additional costs and come with a limited 30-90 day warranty.

I Have This Fault – What Are My Options With SINSPEED?
We offer a great alternative by offering to repair / exchange your faulty ABS pump with our superseded redesigned units which are being offered with modified pressure sensors. The units we offer are guaranteed to last the lifetime of the vehicle (as they should) and that is why we offer them with a LIFETIME warranty. The best part is our units will NOT require any coding or programming.

We also offer a professional diagnosis and fitting service if required.

Why Modify The Unit? – Why Not Just Replace The Damaged Part?
All other cars without the MK60 ATE ABS Control Module have the Brake Pressure Sensor fitted externally to the ABS Pump and guess what, they never fail!

Fitting the Brake Pressure Sensor inside in the ABS Pump internally is a new space-saving idea which has obviously gone horribly wrong because almost all makes of vehicles worldwide affected by the common failing internal sensor. Dealerships are yet to recover fully from the outbreak of failing units and no modification has yet been officially released. Replacing the sensor with a like-for-like part may fix the fault temporarily but it doesn’t solve the root cause of the problem and you can be sure the fault will come back. In order to safe-guard the future of your ABS unit and efficiently repair the unit, we have modified the ABS pump to match it’s predecessors and fitted an external pressure sensor. If the external pressure sensor ever did fail in future for whatever reason, it would be easy enough to buy a sensor and replace it – not having to replace your entire ABS pump each time.

SAFETY WARNING!!
There have been rumours of people and/or companies trying to repair these units and in some cases imitate our work. Please understand that although the ESP system is not absolutely crucial, modifying the ABS controller / pump in any way (without superior extensive knowledge) in the technology of advanced braking systems and electronic control modules, you will be risking the life of others. Please do not attempt to repair these units yourself and please do not offer such services to trade or the general public. We have been in business since 1972 as a group company and all our parts, services are fully tested before leaving the workshop. All units are thoroughly tested on specific specialist equipment to ensure maximum quality. Our ESP Fault Modifications come fully approved and as far as we’re aware, there is no other company out there that can successfully repair these units and completely remove the defective state.

If you have a vehicle with the Brake Pressure Sensor ESP Fault then give us a call on 0203 815 9441.

ABS ESP "Brake Pressure Sensor" Problems
ABS, Citroen, Peugeot, Renault
24 October 2014 By 30 Comments

Citroen, Peugeot + Renault Common ABS Pump (ESP Fault) – Brake Pressure Sensor Switch Failure

ABS ESP "Brake Pressure Sensor" ProblemsCommon Citroen, Peugeot + Renault ESP Fault
The common ‘Brake Pressure Sensor’ fault has famously affected almost all Makes of vehicles including Citroen, Peugeot and Renault. On earlier models the brake pressure sensor was mounted externally on the ABS pump or near the brake master cylinder / brake servo. The external sensor was much more reliable but if the sensor did ever fail, a replacement could be purchased from dealers and parts factors at a very low cost. Newer ABS pumps (namely the ATE MK60 ABS Pump and later) are now being manufactured with the brake pressure sensor installed internally and it’s not a case of if, but when it fails – there is no option to buy and replace the sensor unit. Dealerships will require you to purchase a complete new ABS pump at a very high price.

How To Tell If You Have The “Brake Pressure Sensor” ESP Fault
If you have got the brake pressure sensor ESP fault with your car then you will notice that the ESP button will be illuminated or the ESP light will be lit on the dash and pressing the ESP button will have no affect. The ABS light may also be illuminated and when you have a diagnostic machine plugged into the vehicle, it will bring a fault code similar to below:

C1301 – Incoherence between the brake light switch and the pressure sensor
C1302 – Braking pressure sensor signal fault : Open circuit, short circuit to positive, short circuit to earth

When you have a Brake Pressure Sensor fault, you will be advised to replace the ABS pump and the expected cost of a new replacement unit will be £1200+. The new ABS pump will require programming after fitting which is an additional cost.

Below is a shot list of some of the most common Citroen, Peugeot + Renault vehicles we are taking calls for daily with the ESP fault.

Common VehiclesCommon VehiclesCommon VehiclesCommon Vehicles
Citroen C2Citroen C3Citroen C4Peugeot 1007
Peugeot 206Peugeot 207Renault Laguna IIAnd More..!

There are 100s of part numbers associated to the MK60 ATE unit fitted to these vehicles and below is a list of some of the most common part numbers we are seeing being sent in for repair or exchange:

Part NumbersPart NumbersPart Numbers
10.0206-0252.410.0960-1169.39661691380
10.0206-0253.410.0960-1170.39662150780
10.0206-0256.410.0960-1173.39662150480
10.0206-0315.410.0960-1184.39663703980
10.0206-0317.410.0960-1185.39662295780
10.0206-0328.400401635C29662295880
10.0206-0329.410.0960-1188.39663703280
10.0399-2976.410.0960-1195.39663703380
10.0206-0334.410.0960-1191.39664383580
10.0206-0383.410.0960-3920.39665345380
5139E096638415808200053423B
4542Z28200183452B8200053423C
8200345940C8200426953A8200001333B
8200426953B8200345940B8200001333C
966229558082008081459648606980
10.0206-0346.410.0206-0168.48200159837E
10.0206-0014.410.0206-0015.48200053422

The ABS pump will have failed due to a common known manufacturing defect and replacing it with a like for like new or used part may rectify the fault temporarily but you can expect it to fail again in the near future.

There is also the option of purchasing a standard rebuilt part or a repair kit as some parts factors are now offering. This is simply a repair to the existing part by replacing the sensor with a like-for-like part.. It is in no way a superseded part and will carry the same design fault.

Why You Should Choose Sinspeed To Replace / Remanufacture Your ABS Module
What we offer is very different. We remanufacture the ABS pump, bypass the internal pressure switch and fit our very own custom manufactured external brake pressure sensor and calibrate it to completely eliminate the possibility of a repeat failure. This is the only way to remove all risks of the unit failing again and this is why we are confident enough to offer our units with a LIFETIME warranty.

What’s more our units are now Self-Calibrating so even if you purchase an exchange part from us, the ABS unit we send to you will self-calibrate to your vehicle and will not require programming – Guaranteed!

SAFETY WARNING!!
There are rumours of people and/or companies trying to repair the ABS units and in some cases imitate our work by modifying them. Please understand that although the ESP system is not absolutely crucial, modifying the ABS controller/pump in any way (without superior extensive knowledge) in the technology of advanced braking systems and electronic control modules, you will be risking the life of others. Please do not attempt to repair these units yourself and please do not offer such services to trade or the general public. We have been in business since 1972 as a group company and all our parts & services are fully tested before leaving the workshop. All units are thoroughly tested on specific specialist equipment to ensure maximum quality. Our ESP Fault Modifications come fully approved and as far as we’re aware, there is no other company out there that can successfully repair these units and completely remove the defective state.

If you have a Citroen, Peugeot or Renault with an ABS fault, then email or call us today on 0203 815 9441 for an instant quote.

Denso 7SEU17C Aircon Pump Problems
Air Conditioning
25 July 2014 By 0 Comments

Denso 7SEU17C Air Conditioning Compressor – Mercedes

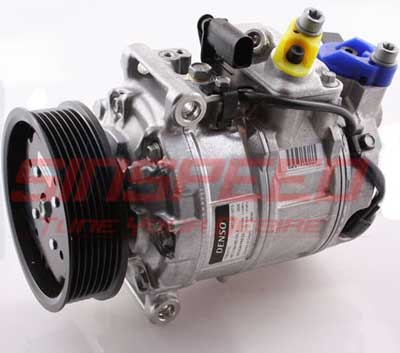

Denso 7SEU17C Aircon Pump ProblemsThe Denso 7SEU17C air conditioning compressor (aircon pump) is found fitted to a variety of Mercedes vehicles manufactured from 2000 onwards. From factory most vehicles came fitted with early revisions of the Denso 7SEU17C aicon compressor which were commonly failing and have since been superseded. We stock only the latest superseded models of this 7-Groove Clutch Compressor to ensure all common failures and design faults within the unit are rectified.

Common Problems Relating To Air Conditioning Pumps

  • Compressor Clutch Not Engaging
  • No Cold Air (Even After Re-filling Aircon Gas)
  • Grinding Noise When Pressing Aircon Button
  • Unable to Discharge Gas
  • Unable to Refill Gas
  • Pressure Problems
  • Electrical Faults

A faulty air conditioning compressor (air con pump) can be very expensive to replace if you’re looking at purchasing a new unit from a dealer. Some garages may advise on purchasing a second-hand used part because it is a lot cheaper but will only come with a limited 30-90 days warranty and there is no guarantee it will last even that long because there is no telling how well it was maintained by the previous owner.

New Replacement Aircon Pumps – From Sinspeed
We stock brand new genuine OEM compressors and also great quality aftermarket compressors which meet & exceed OE specifications. We also remanufacture air conditioning compressors using new genuine OEM components to ensure that each and every rebuilt aircon compressor meets & exceeds OE specifications. All of our replacement air conditioning compressors come with a 12 month warranty as standard.

Professional diagnosis & fitting services available.

The table below shows the various part numbers we’ve found associated with this type of air con compressor unit.

Common Part NumbersCommon Part NumbersCommon Part NumbersCommon Part Numbers
14-03080002309711123055112306211
2304511447180971144718097104471804450
4471809711447180971044722083414472208842
4472208843DCP17038And More!

We’re able to supply & repair all types of aircon pumps for all makes and models of vehicles and this particular unit fits a variety of Mercedes vehicles. Below is a comprehensive list of the vehicles this part will fit. If you have a vehicle with a faulty air conditioning compressor or you’re unsure, give us a call on 0203 815 9441 and we’d be happy to assist you.

MakeModelEngineFromToFuelChassis
MercedesC Class (W203)1.8 C16005/200206/2004Petrol
MercedesC Class (W203)1.8 C16006/200404/2006Petrol910277
MercedesC Class (W203)1.8 C16005/2006Petrol910278
MercedesC Class (W203)1.8 C18005/200204/2004Petrol666024
MercedesC Class (W203)1.8 C18006/200404/2006Petrol666025 - 910277
MercedesC Class (W203)1.8 C18005/2006Petrol910278
MercedesC Class (W203)1.8 C180 Kompressor05/200204/2004Petrol666024
MercedesC Class (W203)1.8 C180 Kompressor05/200404/2006Petrol666025 - 910277
MercedesC Class (W203)1.8 C180 Kompressor05/2006Petrol910278
MercedesC Class (W203)1.8 C180K T Model05/200404/2006Petrol593967 - 827273
MercedesC Class (W203)1.8 C180K T Model05/2006Petrol827274
MercedesC Class (W203)1.8 C180K T Model05/200204/2004Petrol593966
MercedesC Class (W203)1.8 C200 CGi05/200204/2004Petrol666024
MercedesC Class (W203)1.8 C200 CGi05/200404/2006Petrol666025 - 910277
MercedesC Class (W203)1.8 C200 CGi05/2006Petrol910278
MercedesC Class (W203)1.8 C200 CGi T Model05/200205/2004Petrol593966
MercedesC Class (W203)1.8 C200 CGi T Model05/2004Petrol593967
MercedesC Class (W203)1.8 C200 Kompressor05/200204/2004Petrol666024
MercedesC Class (W203)1.8 C200 Kompressor05/200404/2006Petrol666025 - 910277
MercedesC Class (W203)1.8 C200 Kompressor05/2006Petrol910278
MercedesC Class (W203)1.8 C200K T Model05/200205/2004Petrol593966
MercedesC Class (W203)1.8 C200K T Model05/200404/2006Petrol593967 - 827273
MercedesC Class (W203)1.8 C200K T Model05/2006Petrol827274
MercedesC Class (W203)1.8 C230 Kompressor02/200404/2004Petrol666024
MercedesC Class (W203)1.8 C230 Kompressor05/200408/2005Petrol666025 - 910277
MercedesC Class (W203)1.8 C230 Kompressor08/2005Petrol910278
MercedesC Class (W203)1.8 C230K T Model02/200405/2004Petrol593966
MercedesC Class (W203)1.8 C230K T Model05/200408/2005Petrol593967
MercedesC Class (W203)1.8 C230K T Model08/2005Petrol
MercedesC Class (W203)2.3 C230 Kompressor05/200205/2004Petrol
MercedesCLK (C209)1.8 200 Kompressor07/200302/2004PetrolConvertible
MercedesCLK (C209)1.8 200 Kompressor07/200302/2004Petrol168787
MercedesCLK (C209)1.8 200 Kompressor03/200404/2006Petrol168788 - 202989
MercedesCLK (C209)1.8 200 Kompressor03/200404/2006PetrolConvertible
MercedesCLK (C209)1.8 200 Kompressor05/200605/2009Petrol202990
MercedesCLK (C209)1.8 200 Kompressor05/200603/2010PetrolConvertible
MercedesE Class (W211)1.8 E20011/200207/2009Petrol
MercedesE Class (W211)1.8 E200 Kompressor11/200207/2009Petrol
MercedesE Class (W212)4.7 E50009/2011PetrolSaloon
MercedesSLK (R170)2.0 SLK200 Kompressor03/200004/2004Petrol
Landrover Freelander 2 Instrument Cluster Testing
Instrument Cluster Panel
23 July 2014 By 7 Comments

Landrover Freelander 2 (LR2) Instrument Cluster Problems + Repairs

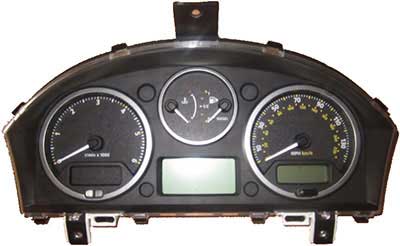

Landrover Freelander 2 Instrument Cluster TestingLandrover Freelander 2 Instrument Cluster Problems
The Landrover Freelander 2 from 2006 – 2011 is factory fitted with a Nippon Seiki (UK-NSI) instrument cluster unit. The instrument cluster is coded to the vehicles immobiliser system and is a very common failing part. You can see below some of the most common symptoms of a failed instrument cluster / speedometer unit below.

Common Instrument Cluster / Dashboard Problems

  • LCD Display Pixelated / Not Working
  • No Sound
  • Gauges sweep from side to side
  • Intermittent Problems
  • Complete Failure

If you’re experiencing speedo faults then your local garage / dealership will advise on replacing it with a new part. New replacement instrument clusters are very expensive and will require coding and to the vehicles immobiliser system and calibration to match the vehicles mileage. Some garages may advise on a used second-hand part but these come with a very limited 30-90 day warranty and will require re-programming and calibration at an additional cost.

Our Instrument Cluster Repair Service
We’re able to fully test, repair & remanufacture this type of instrument cluster unit. We use new genuine OEM components when rebuilding instrument clusters and where possible, uprated parts to ensure that each and every rebuilt instrument cluster meets & exceeds OE specifications.

All of our repaired speedo units come with a Lifetime warranty and we retain all coding, VIN, Immobiliser and Mileage information from the unit to ensure no additional programming is required – the unit will be returned repaired and fully plug & play!

We also offer a diagnostic & fitting service if required.

Below we’ve put together a list of some common part numbers we’ve seen so far with this particular unit. If you have a faulty Landrover Freelander 2 with a dashboard instrument cluster (speedometer) unit then get in touch with us today to find out how we can help you by calling us on 0203 815 9441.

Part NumbersPart Numbers
LR005795AH5210849EA
LR0075646H5210849EF
LR0093316H5210849AE
LR019001LR020117
LR008603LR009328
LR009327LR007560
LR006402LR020117
LR028001LR006408
LR005803LR001638
LR006405LR005800
LR001635LR006411
LR005806LR001641
LR009328LR008604
LR007561LR006403
LR005798LR001633
LR006409LR005804
LR003051And More!
Alfa Romeo 147 Instrument Cluster Faults
Instrument Cluster Panel
23 July 2014 By 0 Comments

Alfa Romeo 147 Dashboard Instrument Cluster Problems + Repairs

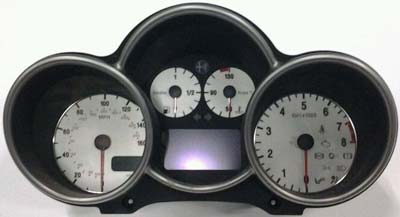

Alfa Romeo 147 Instrument Cluster FaultsThe Alfa Romeo 147 pre-facelift model from 2000-2004 came factory fitted with a VDO instrument cluster / speedometer unit. This type of dash instrument cluster is a very common failure and the way it fails can vary significantly. Below are just some of the common symptoms our customers are facing with a faulty Alfa Romeo 147 Instrument Cluster.

Common Instrument Cluster / Dashboard Problems

  • Backlight Illumination Failure
  • Backlight Flickers
  • Speedo / Rev Counter Fault
  • Gauges Stop Working
  • LCD Pixelated or Not Working
  • Intermittent Power Loss
  • Complete Power Failure

Common Part Numbers: 110008953015, 110008953022

Above are just some of the common faults found with this type of instrument cluster unit. The VDO unit can be a very expensive part to replace when replacing with a new part and used second-hand part will be cheaper but there is no guarantee as to how long that will last. Both a new and a used part will need reprogramming to match your vehicles VIN and Mileage details, which is an additional cost.

Our Instrument Cluster Repair Service
We’re able to fully test, repair & remanufacture all dashboard speedometers / instrument cluster units. We use new genuine OEM parts when rebuilding instrument clusters and uprated parts where possible to ensure that each and every rebuilt cluster repair meets & exceeds OE specifications.

We’re able to retain the coding, VIN and mileage details when repairing speedo’s to ensure a fully plug & play service. When you get the repaired unit back, simply plug it in and away you go!

We also offer a professional diagnosis and fitting service if required.

If you have an Alfa Romeo 147 with a faulty instrument cluster and would like a price to repair the unit, give us a call on 0203 815 9441.

Bosch 5.3 ABS / ESP Controller ECU Testing
ABS, Alfa Romeo, Audi, Cadillac, Iveco, Mercedes-Benz, Nissan, Seat, Skoda, Vauxhall / Opel, Volkswagen, Volvo
12 July 2014 By 13 Comments

Bosch 5.3 ABS / ESP Pump Module Faults – Testing & Repairs

Bosch 5.3 ABS / ESP Pump TestingBosch 5.3 ABS / ESP Pump Control Module Problems
The Bosch 5.3 ABS Pump Controller also controls the traction control (ESP) system and is a very common failing part and found fitted to a wide range of vehicles from 1994 to 2006. The ABS Pump has many names and is often referred to as: ABS Pump, ABS ECU, ABS Module, ABS Controller, ESP Pump, ESP ECU, ESP Module and ESP Controller – In instances like this when the ABS / ESP systems are combined, they are all referring to the same one unit.

The Bosch 5.3 ABS Controller has an external power source to the ABS pump motor which is mounted on top of the hydraulic valve block. The ABS unit has since been upgraded on newer vehicles with the Bosch 5.7 and now the Bosch 8.0 ABS pump which has an internal power source to feed power up to the ABS pump motor.

Below is a list of the common vehicles we’ve found fitted with the Bosch 5.3 ABS pump unit.

VehicleVehicleVehicleVehicle
Audi A4Audi A6Audi A8Cadillac Catera
Iveco DailyMercedes E-ClassMercedes E200Mercedes E220
Mercedes E270Mercedes E320Mercedes E430Mercedes E55 AMG
Nissan AlmeraNissan Terrano IIOpel / Vauxhall AstraOpel / Vauxhall Calais
Opel / Vauxhall CapriceOpel / Vauxhall CommodoreOpel / Vauxhall MonaroOpel / Vauxhall Omega
Opel / Vauxhall StatesmanOpel / Vauxhall ZafiraSkoda SuperbVolkswagen (VW) Passat
Volvo S40Volvo V40And More..!

Common Bosch 5.3 ABS Pump Faults
Faults with this type of unit can very quite a bit from vehicle to vehicle and it all depends on how the unit has failed. We’ve been repairing these units for so long now we’ve practically seen every type of fault possible with Bosch ABS controllers and below are just some of the most common faults we’ve seen when the ABS pump fails:

  • ABS Light On
  • Traction Light On
  • Handbrake Light On
  • Steering Light On
  • Speedo Not Working
  • Wheel Speed Sensor Faults
  • No Communication via OBD
  • Pressure Sensor Faults
  • Brakes Juddering

When the ABS unit has failed, some dealers and workshops will advise on a new replacement part which will come with a 12 month warranty but the cost of new parts can be very expensive and will need programming at an additional cost. Second hand used ABS controllers are not recommended because they come with a limited 30-90 day warranty and being such a common failing part there is no real guarantee how long it will last – also the second hand used part will also require reprogramming at an additional cost.

Bosch 5.3 ABS / ESP Controller ECU TestingOur Bosch 5.3 ABS / ESP Pump Control Module Repair Service
We’re able to fully test and remanufacture this type of ABS pump. We offer a fast, efficient and an affordable repair solution using new genuine OEM components to ensure that each and every rebuilt ABS module meets & exceeds OE specifications. All of our repaired ABS ECU’s come with a Lifetime warranty and will not require coding when refitting back to the vehicle. – Making our solution the preferred choice for garages and workshops around the world!

We also offer a professional diagnosis and fitting service if required.

Below we have compiled an extensive list of part numbers we’ve seen associated to the Bosch 5.3 ABS pumps. If you have an ABS fault or have any queries, please call us on 0203 815 9441 and we’d be happy to assist you.

BoschOEM
0265 109 4268D0 907 389 A
0265 109 4638D0 907 389
0265 109 4698D0 907 389 D
0265 109 4990295452232
0265 109 6130265456332
0265 216 651A 026 545 6332
0265 216 652A 029 545 2232
0265 216 844A 031 545 0832
0265 216 845A 029 545 0832
0265 220 405A 031 545 0832
0265 220 406A 029 545 5132
0265 220 407A 027 545 9532
0265 220 622A 026 545 6432
0265 220 640A 029 545 2332
0273 005 122A 026 545 6432
0273 005 111A 027 545 9532
0273 005 106A 029 545 0832
0273 004 982A 029 545 2332
0273 004 981A 029 545 5132
0273 004 968A 031 545 0832
0273 004 95990581417
0273 004 9589120525
0273 004 95709120525
0273 004 730504034920
0273 004 7298E0 614 111 B
0273 004 7068E0 614 111 F
0273 004 6198E0 614 111 AR
0273 004 605476605M326
0273 004 5996237101
0273 004 5929194885
0273 004 2069201629
0273 004 20842541757
0273 004 224504034920
0273 004 2317D0 907 389 B
0273 004 26542541757
0273 004 2828E0 998 375 K
0273 004 2848E0 614 111 AR
0273 004 2858E0 614 111 AQ
0273 004 28609120526
0273 004 2989120526
0273 004 30492083318
0273 004 35892058944
0273 004 35892057843
0273 004 36292083318
0273 004 3638E0 614 111 AH
0273 004 502476608F005
0273 004 573476608F000
0273 004 5748E0 614 111 J
0273 004 5768E0 998 375 B
0273 004 5788E0 614 111 G
1273 004 2068E0 998 375
1273 004 2088E0 614 111 E
1273 004 2248E0 614 111 F
1273 004 2318E0 614 111 AN
1273 004 2828E0 614 111 AE
1273 004 2839120535
1273 004 28409120535
1273 004 2859120535
1273 004 28630857561
1273 004 30430863329
1273 004 3589127100
1273 004 3629117173
1273 004 36309117173
1273 004 57390538656
1273 004 5749127952
1273 004 5769117170
1273 004 5789120539
1273 004 5928E0 614 111 AE
1273 004 5998E0 614 111 AN
1273 004 9578E0 614 111 B
7516 011 0038E0 998 375
7516 011 0048E0 998 375 B
7516 011 0058E0 614 111 H
7516 011 0079120526
7516 011 00809120526
7516 011 0118E0 614 111 AQ
7516 011 0188E0 998 375 K
7516 011 02042541757
7516 011 02124432510
7516 011 022
7516 011 025
7516 011 026
7516 011 027
7516 011 028
7516 011 030
7516 011 033
7516 011 034
7516 011 035
7516 011 036
7516 011 037
7516 011 038
7516 011 040
7516 011 041
7516 011 042
7516 011 043
7516 011 044
7516 011 045
7516 011 046
7516 011 047
7516 011 048
7516 011 076
7516 011 099
7516 011 124
7516 011 156
7516 011 157
7516 011 158
Volkswagen (VW) Passat TRW ABS Testing
ABS, Volkswagen
7 July 2014 By 12 Comments

Volkswagen (VW) Passat ABS Pump Module Repair

Volkswagen (VW) Passat ABS Pump TestingVolkswagen (VW) Passat ABS Pump Problems
The Volkswagen (VW) Passat came fitted with many different types of ABS pumps, from ATE modules to Bosch and TRW modules. This particular TRW ABS / ESP Pump module has been found fitted to some variants of the Volkswagen (VW) Passat in models from 2006 – 2007.

This type of ABS / ESP Pump ECU is a common failing part and can fail with many symptoms including loss of communication and speedo not working. Below are some of the most common symptoms associated with a failed ABS ECU Controller.

Common Volkswagen (VW) Passat ABS Module Faults:

  • ABS Light On
  • Traction Light On
  • Handbrake Light On
  • Steering Light On
  • Speedo Not Working
  • Wheel Speed Sensor Faults
  • No Communication via OBD
  • Pressure Sensor Faults
  • Brakes Juddering

Volkswagen (VW) Passat ABS Module TestingMost common found part number on this type of unit is 3C0 614 109 ABEF which supersedes the earlier unit with part number 3C0 614 517 SBEF. When this unit has failed, most dealers and workshops are not aware that it can be repaired and would normally suggest a replacement part which will be much more expensive.

A new replacement ABS / ESP pump module comes with a limited 12 month warranty, is very expensive and will require programming to the vehicle. Used second-hand parts are generally quite cheap but are not advised because they come with a very limited 30-90 day warranty, will require re-programming at an additional cost and there’s no way of knowing how much life the unit will have left or how well it’s been maintained.

Our Volkswagen (VW) Passat ABS Pump Repair Service
We offer a fast, efficient and affordable ABS pump repair service. We’re able to fully test + rebuild the ABS module and use new genuine OEM components when remanufacturing the ABS module to ensure that each and every ABS pump rebuild meets & exceeds OE specifications. All of our repaired ABS units come with a Lifetime warranty and will not require any programming when refitting back to the vehicle.

We also offer a professional diagnosis & fitting service if required.

If you have a Volkswagen (VW) Passat with a suspected ABS pump fault then get in touch with us today by calling 0203 815 9441.

Volkswagen (VW) Passat TRW ABS Testing Volkswagen (VW) ABS ESP Module Testing Volkswagen (VW) Passat ABS Module Testing Volkswagen (VW) Passat ABS Pump Testing



Seat Ibiza Bosch 5.7 ABS Pump Testing
ABS, Seat
4 July 2014 By 16 Comments

Seat Ibiza ABS Pump Module Repair

Seat Ibiza Bosch 5.7 ABS Pump TestingSeat Ibiza ABS Pump Problems
A common problem on the Seat Ibiza from 2000 – 2005 is the Bosch 5.7 ABS Pump / Control Module which becomes faulty. When this part fails, it will cause the ABS light to illuminate on the dash but will not necessarily affect the drive of the vehicle, however, it is an MOT failure to have the ABS warning light on.

The Bosch 5.7 ABS / ESP Module fitted to this vehicle is a very common failing part and can fail for many reasons. Below we’ve listed some of the most common faults we’ve seen with  this type of ABS pump unit.

Common Seat Ibiza ABS Pump Faults:

  • ABS Light On
  • Traction Light On
  • Handbrake Light On
  • Steering Light On
  • Speedo Not Working
  • Wheel Speed Sensor Faults
  • No Communication via OBD
  • Pressure Sensor Faults
  • Brakes Juddering

When the ABS Pump fails on a vehicle most dealers and garages will advise on a new replacement part because of the 12 month warranty and peace of mind that it will be a new working part, however, the cost of a new replacement ABS pump can be very expensive and will require programming at an additional cost. Used parts come with a limited 30-90 days warranty and will also require re-coding where possible at an additional cost.

Bosch 5.7 ABS Module TestingOur Seat Ibiza ABS Pump Repair Service
We offer a fast, efficient and affordable repair solution. We’re able to fully test, repair and remanufacture the ABS / ESP Module on the Seat Ibiza and we use new Genuine OEM components to ensure that each and every rebuilt ABS pump meets & exceeds OE specifications. All of our repaired ABS Modules come with our lifetime warranty and will not require programming when re-fitting back to the vehicle.

We also offer a professional diagnosis & fitting service if required.

Below is an extensive list of common part numbers associated with the Bosch 5.7 ABS Pump module. If you’re part number is not listed or you’re not sure about anything, give us a call on 0203 815 9441 and we’d be happy to assist you.

BoschOEM
0265 224 0116Q0614417
0265 224 0126Q0614417B
0265 224 0136Q0614417D
0265 224 0856Q0614417E
0265 224 0866Q0614417A
0265 225 0056Q0614417F
0265 225 0066Q0614417A
0265 225 0596Q0614417F
0265 225 1336Q0698417
0265 225 1354465789
0265 225 13634516751189
0265 225 13834516752276
0265 225 13934516752737
0265 225 14034516753867
0265 225 14134516753642
0265 800 00334516755739
0265 800 00834516750841
0265 900 00134516750382
0265 900 00934511164851
0265 900 04334516757593
0265 900 04834516758969
0265 950 00234516750349
0265 950 00434516751501
0265 950 00634516750844
0265 950 01234516757594
0265 950 03634516758970
0265 950 05434516753643
0265 950 05534516755740
0265 950 05634516751192
0265 950 06134516752738
0265 950 06234516753868
0265 950 06334516769536
0265 950 06532306769860
0265 950 067SRB000282
0265 950 0734E0614517C
0265 950 0764E0614517B
0265 950 0843U0614517
0265 950 0873U0614517B
0265 950 1183U0614517D
0265 950 1203U0614517C
0265 950 1273U0614517E
0265 950 1307D0907379
0265 950 1357D0907379A
0265 950 1357D0907379B
0265 950 1457D0907379C
0265 950 1497D0907379D
0265 950 1507D0907379F
0265 950 1597D0907389B
0265 950 16034511164849
0265 960 3574465789
0273 004 57371719822
0273 004 57434516750349
0273 004 57634516751501
0273 004 57834516750844
0273 004 95734516757594
1265 800 00334516758970
1265 800 00834516753643
1265 900 00134516755740
1265 900 00934516751192
1265 900 04334516752738
1265 900 04834516753868
1265 950 00234516769536
1265 950 00432306769860
1265 950 00634516750349
1265 950 01234516751501
1265 950 03634516750844
1265 950 05434516757594
1265 950 05534516758970
1265 950 05634516753643
1265 950 06134516755740
1265 950 06234516751192
1265 950 06334516752738
1265 950 06534516753868
1265 950 06734516769536
1265 950 07332306769860
1265 950 07634516754407
1265 950 08434516754509
1265 950 12034516759564
1265 950 12734516758783
1265 950 13534516760961
1265 950 14934516761782
1273 004 57334516764447
1273 004 57434516766846
1273 004 57634516767834
1273 004 95734516771232
0265 225 12434516789320
34516789324
8E0 614 517 B
4B0 614 517 B
8E0 614 517 L
8E0 614 517 N
4B0 614 517 J
SRB000282
SRB000283
4B0 614 517 S
4E0 614 517 C
4X432C405CA
4X432C405CB
4X432C405CC
C2S35778
5X432C405CA
C2S39160
34516756215
34516761978
34516765429
34516757017
34516759849
34516756777
34516755246
34516752074
34516762114
1S712C405DA
1149168
1197814
2S712C405BA
1S712C405BC
1S712C405BD
1S712C405BE
1S712C405BB
1124751
1127931
1131729
1142139
1219695
3S712C405BA
3S712C405CA
1225679
1303858
3S712C405CB
4541 A9
9404541A98
71734809
71746405
4454002011
4405002051
4405002050
3S712C405BB
1225678
3S712C405BC
1320552
71732682
71714735
71719733
440500F020
440500F021
4E0 614 517 R
4E0 614 517 BF
4E0 614 517 S
4E0 614 517 L
4E0 614 517 AD
4E0 614 517 BG
4405005080
4405005063
4405005081
4E0 614 517 AN
A 0014461089
0004466789
0004469189
A0004466789
A0004469189
A0014461089
4E0 614 517 BJ
8E0 614 111 AQ
8E0 614 111 AR
8E0 998 375 K
42541757
504034920
6Q0 614 117
6Q0 614 117 B
6Q0 614 117 D
6Q0 614 117 E
34511164849
34516750346
34516756341
6Q0 614 417
6Q0 614 417 B
6Q0 614 417 D
6Q0 614 417 E
0025401145
0015409045
0015409845
A0015409045
A0015409845
A0025401145
34516751189
34516752276
34516752737
34516753867
34516753642
34516755739
34516750841
34516750382
34511164851
34516757593
34516758969
34521165599
34526752777
34526753172
34526755077
34526756179
34526756871
34526758629
34526755799
34526754405
34526753197
34526755076
34526752776
34526752078
34521165599
34526752777
34526753172
34526755077
34526756179
34526756871
34526758629
34526755799
34526754405
34526753197
34526755076
34526752776
34526752078
34521165599
34526754511
34526758785
34526759566
34526760963
34526761784
34526764449
34526766848
34526767836
34526771234
34526789322
34526766847
34526789326
4B0 998 375
SRB000100
SRB000270
SRB000271
SRB000272
SRB000273
SRB000272
4E0 614 517 C
4E0 614 517 M
4E0 998 375
8H0 998 375 C
4X432C405BA
4X432C405EA
4X432C405BB
4X432C405BC
5X432C405BA
6Q0 614 517
6Q0 614 517 A
6Q0 614 517 D
6Q0 614 517 E
6Q0 614 517 K
2S712C405AA
2S712C405AC
1S712C405AJ
1S712C405AH
1S712C405AG
1S712C405AF
1S712C405AC
1S712C405AE
1S712C405AK
3S712C405AA
3S712C405AB
3S712C405AC
96 453 241
96 484 353
3S712C405BB
1225678
1320552
3S712C405BC
3S712C405BB
1225678
4B0 614 517 M
4E0 614 517 M
4B0 614 517 BC
8E0 614 111 AQ
8E0 998 375 K
42541757
7516011000
7516011001
7516011002
7516011006
7516011009
7516011010
7516011012
7516011013
7516011014
7516011015
7516011016
7516011017
7516011019
7516011024
7516011029
7516011032
7516011057
7516011067
7516011080
7516011084
7516011101
7516011104
7516011106
7516011107
7516011112
7516011116
7516011130
7516011134
7516011137
7516011140
7516011141
7516011157
4BO 614 517 G
Bosch 5.7 ABS Pump Testing
ABS, Alfa Romeo, Audi, BMW, Fiat, Ford, Iveco, Jaguar, Land Rover, Mercedes-Benz, Peugeot, Seat, Skoda, Toyota, Volkswagen
1 July 2014 By 7 Comments

Bosch 5.7 ABS / ESP Pump Module Faults – Testing & Repairs

Bosch 5.7 ABS Pump TestingBosch 5.7 ABS / ESP Pump Module Problems
The Bosch 5.7 ABS Pump controller module is a very common failing part and often referred to as  many things including: ABS Pump, ABS ECU, ABS Module, ABS Controller, ESP Module, ESP Pump and so on. The ABS Pump does have controls for the ESP system as well when the vehicle is equipped with traction control.

This part is often found failing on Audi’s and BMW’s but is fitting to a wide range of vehicles and we’ve seen them failing on Fords, Mercedes-Benz, Volkswagen (VW’s) and many other vehicles. Below is a list of all the known vehicles that have been found with a Bosch 5.7 ABS Pump fitted.

VehicleVehicleVehicleVehicleVehicle
Alfa Romeo 156Alfa Romeo 166Audi A4Audi A6Audi A8
Audi S8BMW 3 SeriesBMW 325BMW 330BMW 5 Series
BMW 520BMW 523BMW 528BMW 535BMW 540
BMW 7 SeriesBMW 725BMW 728BMW 730BMW 735
BMW 740BMW 745BMW 750BMW 760BMW B7
BMW X5Fiat StiloFord MondeoIveco DailyJaguar X-Type
Mercedes 109Mercedes 111Mercedes 115Mercedes 119 (Vito)Mercedes 122 (Vito)
Mercedes 616 (Sprinter)Mercedes VianoMercedes SprinterPeugeot 307Range Rover
Seat CordobaSeat IbizaSkoda SuperbToyota AvensisToyota Corolla
Toyota Corolla VersoVolkswagen (VW) PassatVolkswagen (VW) Poloand more..

Common Bosch 5.7 ABS Problems
We’ve been repairing these units for so long now we’ve seen practically every type of fault there is to see with these ABS pumps. Some of the most common faults they’re coming in with include:

  • ABS Light On
  • Traction Light On
  • Handbrake Light On
  • Steering Light On
  • Speedo Not Working
  • Wheel Speed Sensor Faults
  • No Communication via OBD
  • Pressure Sensor Faults
  • Brakes Juddering

Bosch 5.7 ABS Module TestingOur Bosch 5.7 ABS / ESP Pump Control Module Repair Service
We have the facilities to fully Test & Repair all Bosch 5.7 ABS Pumps. We remanufacture the ABS units using new genuine OEM components to ensure that each and every rebuilt ABS pump module meets & exceeds OE specifications. No programming is required when re-fitting the ABS pump back to the vehicle, it will be fully plug & play and all of our repaired units will come with a Lifetime warranty.

We also offer a professional diagnosis and fitting service if required.

Below is an extensive list of the common part numbers we’ve found associated with this type of ABS module. If you have any queries, please call us on 0203 815 9441 and we’d be happy to assist you.

BoschOEM
0265 224 0116Q0614417
0265 224 0126Q0614417B
0265 224 0136Q0614417D
0265 224 0856Q0614417E
0265 224 0866Q0614417A
0265 225 0056Q0614417F
0265 225 0066Q0614417A
0265 225 0596Q0614417F
0265 225 1336Q0698417
0265 225 1354465789
0265 225 13634516751189
0265 225 13834516752276
0265 225 13934516752737
0265 225 14034516753867
0265 225 14134516753642
0265 800 00334516755739
0265 800 00834516750841
0265 900 00134516750382
0265 900 00934511164851
0265 900 04334516757593
0265 900 04834516758969
0265 950 00234516750349
0265 950 00434516751501
0265 950 00634516750844
0265 950 01234516757594
0265 950 03634516758970
0265 950 05434516753643
0265 950 05534516755740
0265 950 05634516751192
0265 950 06134516752738
0265 950 06234516753868
0265 950 06334516769536
0265 950 06532306769860
0265 950 067SRB000282
0265 950 0734E0614517C
0265 950 0764E0614517B
0265 950 0843U0614517
0265 950 0873U0614517B
0265 950 1183U0614517D
0265 950 1203U0614517C
0265 950 1273U0614517E
0265 950 1307D0907379
0265 950 1357D0907379A
0265 950 1357D0907379B
0265 950 1457D0907379C
0265 950 1497D0907379D
0265 950 1507D0907379F
0265 950 1597D0907389B
0265 950 16034511164849
0265 960 3574465789
0273 004 57371719822
0273 004 57434516750349
0273 004 57634516751501
0273 004 57834516750844
0273 004 95734516757594
1265 800 00334516758970
1265 800 00834516753643
1265 900 00134516755740
1265 900 00934516751192
1265 900 04334516752738
1265 900 04834516753868
1265 950 00234516769536
1265 950 00432306769860
1265 950 00634516750349
1265 950 01234516751501
1265 950 03634516750844
1265 950 05434516757594
1265 950 05534516758970
1265 950 05634516753643
1265 950 06134516755740
1265 950 06234516751192
1265 950 06334516752738
1265 950 06534516753868
1265 950 06734516769536
1265 950 07332306769860
1265 950 07634516754407
1265 950 08434516754509
1265 950 12034516759564
1265 950 12734516758783
1265 950 13534516760961
1265 950 14934516761782
1273 004 57334516764447
1273 004 57434516766846
1273 004 57634516767834
1273 004 95734516771232
0265 225 12434516789320
34516789324
8E0 614 517 B
4B0 614 517 B
8E0 614 517 L
8E0 614 517 N
4B0 614 517 J
SRB000282
SRB000283
4B0 614 517 S
4E0 614 517 C
4X432C405CA
4X432C405CB
4X432C405CC
C2S35778
5X432C405CA
C2S39160
34516756215
34516761978
34516765429
34516757017
34516759849
34516756777
34516755246
34516752074
34516762114
1S712C405DA
1149168
1197814
2S712C405BA
1S712C405BC
1S712C405BD
1S712C405BE
1S712C405BB
1124751
1127931
1131729
1142139
1219695
3S712C405BA
3S712C405CA
1225679
1303858
3S712C405CB
4541 A9
9404541A98
71734809
71746405
4454002011
4405002051
4405002050
3S712C405BB
1225678
3S712C405BC
1320552
71732682
71714735
71719733
440500F020
440500F021
4E0 614 517 R
4E0 614 517 BF
4E0 614 517 S
4E0 614 517 L
4E0 614 517 AD
4E0 614 517 BG
4405005080
4405005063
4405005081
4E0 614 517 AN
A 0014461089
0004466789
0004469189
A0004466789
A0004469189
A0014461089
4E0 614 517 BJ
8E0 614 111 AQ
8E0 614 111 AR
8E0 998 375 K
42541757
504034920
6Q0 614 117
6Q0 614 117 B
6Q0 614 117 D
6Q0 614 117 E
34511164849
34516750346
34516756341
6Q0 614 417
6Q0 614 417 B
6Q0 614 417 D
6Q0 614 417 E
0025401145
0015409045
0015409845
A0015409045
A0015409845
A0025401145
34516751189
34516752276
34516752737
34516753867
34516753642
34516755739
34516750841
34516750382
34511164851
34516757593
34516758969
34521165599
34526752777
34526753172
34526755077
34526756179
34526756871
34526758629
34526755799
34526754405
34526753197
34526755076
34526752776
34526752078
34521165599
34526752777
34526753172
34526755077
34526756179
34526756871
34526758629
34526755799
34526754405
34526753197
34526755076
34526752776
34526752078
34521165599
34526754511
34526758785
34526759566
34526760963
34526761784
34526764449
34526766848
34526767836
34526771234
34526789322
34526766847
34526789326
4B0 998 375
SRB000100
SRB000270
SRB000271
SRB000272
SRB000273
SRB000272
4E0 614 517 C
4E0 614 517 M
4E0 998 375
8H0 998 375 C
4X432C405BA
4X432C405EA
4X432C405BB
4X432C405BC
5X432C405BA
6Q0 614 517
6Q0 614 517 A
6Q0 614 517 D
6Q0 614 517 E
6Q0 614 517 K
2S712C405AA
2S712C405AC
1S712C405AJ
1S712C405AH
1S712C405AG
1S712C405AF
1S712C405AC
1S712C405AE
1S712C405AK
3S712C405AA
3S712C405AB
3S712C405AC
96 453 241
96 484 353
3S712C405BB
1225678
1320552
3S712C405BC
3S712C405BB
1225678
4B0 614 517 M
4E0 614 517 M
4B0 614 517 BC
8E0 614 111 AQ
8E0 998 375 K
42541757
7516011000
7516011001
7516011002
7516011006
7516011009
7516011010
7516011012
7516011013
7516011014
7516011015
7516011016
7516011017
7516011019
7516011024
7516011029
7516011032
7516011057
7516011067
7516011080
7516011084
7516011101
7516011104
7516011106
7516011107
7516011112
7516011116
7516011130
7516011134
7516011137
7516011140
7516011141
7516011157
4BO 614 517 G
  • Shop By Categories
Menu
Back to Top
Product has been added to your cart
Compare (0)
Compare Remove all products
