What does the Defender’s instrument cluster do?

The cluster is the panel of dials directly in front of the driver. On the 2007-2016 Defender it runs the speedometer and the other gauges, the warning lamps, the backlighting that keeps them readable after dark, and a digital display.

It does two less obvious jobs as well. It sounds the warning chimes, so a fault in the cluster can silence alerts you rely on. And it keeps the odometer reading, the Defender’s own record of how far it has travelled, which is why the question of swapping it is never as simple as it looks.

The cluster is also one of the units a diagnostic tool reads. A failing cluster can stop answering that tool altogether, which turns out to be one of the more useful clues on this page.

What are the signs of a failing Defender instrument cluster?

Owners and garages usually report some mix of the following:

• Gauges that read wrongly, stick in one place or stop responding
• A display that fades, breaks into pixels or goes blank
• Backlighting that fails, so the dials disappear at night
• Warning chimes that no longer sound
• An odometer reading that fails or will not display
• The whole cluster switching off and on again, or losing power completely
• No communication when a diagnostic tool tries to read the cluster

The pattern matters as much as the list. Faults that come and go, that show on a cold morning and vanish once the cab is warm, or that appear over rough ground and settle on the road, are the classic shape of an electronic unit losing its reliability. Write down when yours happen; it makes the diagnosis quicker.

Why are the gauges not working on my Defender?

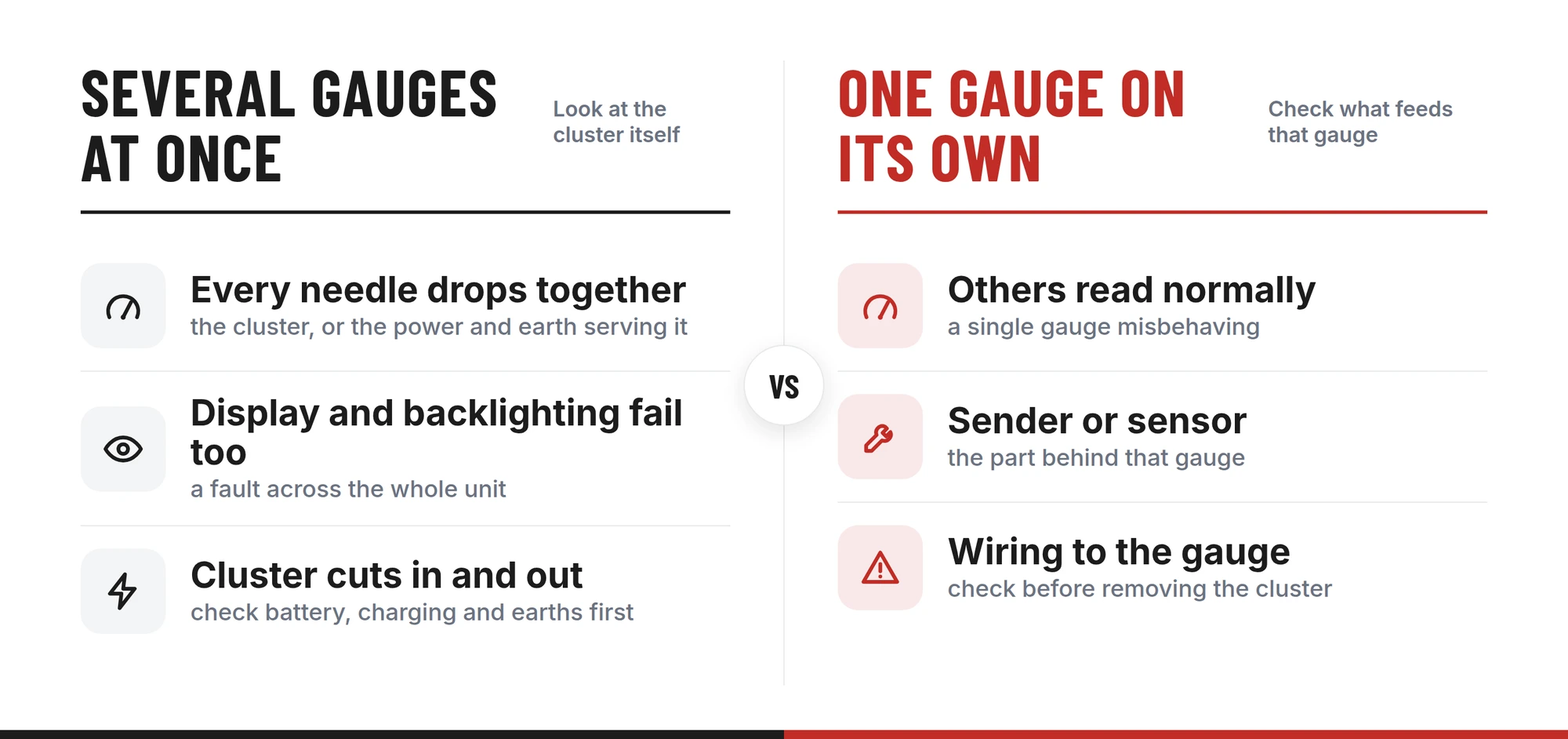

When a Defender’s gauges stop working, the real question is whether the problem lies in the cluster or in whatever feeds it. The number of gauges affected is the most useful clue.

Several gauges at once. If every needle drops together, or the gauges fail alongside the display and the backlighting, the cluster itself, or the power and earth that serve it, is the likely place to look.

One gauge on its own. If a single gauge misbehaves while the rest read normally, the sender or sensor behind that gauge, or the wiring to it, deserves checking before the cluster comes out of the dashboard.

Timing adds detail. A needle that fails on a bumpy track and recovers on tarmac, or only once the heater has been running for a while, behaves like a fault that is sensitive to vibration or temperature inside the unit.

A speedometer you cannot trust leaves you guessing your speed, so treat a wandering needle as a fault to deal with now rather than one to drive around.

What will a diagnostic tool show on a faulty Defender cluster?

The plainest sign is no response at all. The tool reaches other systems on the Defender but gets no answer from the cluster. That points either at the cluster or at the supply, earth and wiring that serve it, and the checks further down this page separate the two.

If codes are stored, send us the complete readout rather than a summary: each code as the tool words it, the module that logged it, and whether it is live or historic. Codes vary with the fault and with the scan tool, so we work from what your Defender actually reports rather than from a generic list.

Why do Defender instrument clusters fail?

Nothing exotic is behind it. Three ordinary pressures do the damage, and a working Defender meets all of them.

• Temperature swings. A frosty start, a cab warmed by the heater, a summer afternoon parked in the sun: each cycle stresses the electronics inside the cluster, and over many seasons their reliability wears down. Faults born this way usually begin intermittently.
• Vibration. Defenders spend much of their lives on tracks, in fields and on towing duty, and the dashboard takes every jolt. Vibration builds on the wear that heat has already done, which is why some faults only show away from smooth roads.
• Electrical supply. The cluster needs a steady voltage. A tired battery, a charging fault, a corroded earth or a poor connection lets that supply dip and spike, which can make a sound cluster misbehave and tip a weakened one into failure.

None of this points to neglect. It is the wear any dashboard unit collects in a hard-working vehicle, and the cluster that suffered it is the one we repair.

Is it the cluster, or something else on the Defender?

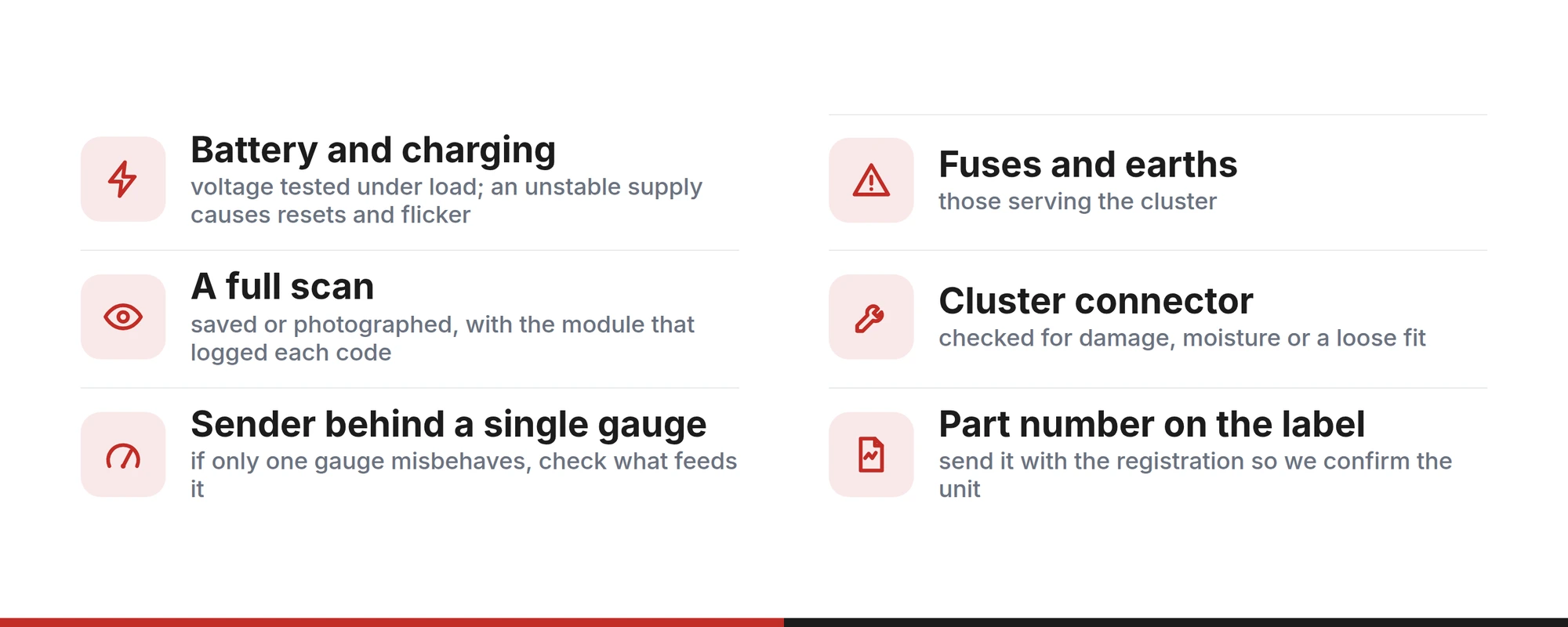

A few checks before removal make sure the right unit ends up on our bench.

• Battery and charging: voltage tested under load, since an unstable supply causes resets and flicker on its own
• Fuses and earths serving the cluster
• A full scan, saved or photographed
• The cluster connector, for damage, moisture or a loose fit
• The sender or sensor behind any single gauge that misbehaves on its own
• The part number printed on the cluster’s label

These are checks, not a reason to leave the cluster in the dashboard. If they pass and the fault remains, or the results leave you unsure, post the cluster. If our bench clears it, you hear that from us straight away, with our view on where to look instead.

Repair your Defender’s cluster or fit a second-hand one?

Swapping in a used cluster raises three questions that repairing your own does not.

• Mileage: a used unit shows the odometer reading of the vehicle it came from, not yours
• Match: it has to suit your Defender’s part number and specification before it is worth fitting
• History: it has lived through its own heat, vibration and voltage, and nothing tells you how close it is to the same failure

The cluster already in your Defender avoids all three. Repaired, it goes back into the vehicle it came from with its recorded mileage and data unchanged, and we strengthen the weak points behind the failure rather than send it back exactly as it was built.

Your garage may need to clear fault codes that other systems logged while the cluster was unplugged. That is a routine fitting step, not a hurdle.

Which part numbers are on our Land Rover cluster list?

The table collects Land Rover instrument cluster part numbers that pass through our workshop. It is a reference list rather than a Defender fitment chart, so a number appearing in it is not proof that a cluster suits a 2007-2016 Defender.

The reliable guide is the label on your own cluster. Send us that number with the registration, whether or not it appears below, and we will confirm the unit before anything goes in the post.

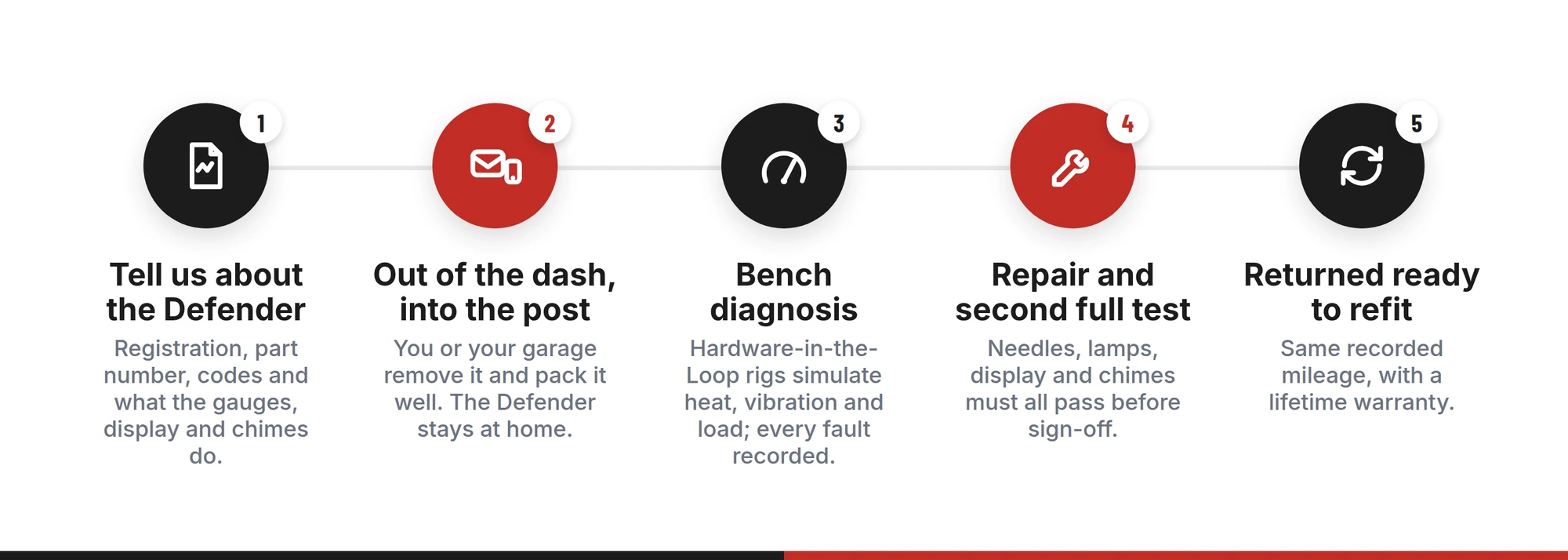

How does Defender cluster repair work by post?

The Defender never has to come to us. Removal and refit happen at your end; diagnosis, repair and testing happen in our workshop.

1. Tell us about the Defender

   Fill in the repair form with the registration, the cluster’s part number, any stored codes, and what the gauges, display and chimes are doing, including when it happens.

2. Out of the dash and into the post

   You or your garage remove the cluster, pad the face and the connector well, and pack it in a sturdy box with your name and registration inside.

3. Bench diagnosis under simulated signals

   Our engineers power the cluster on Hardware-in-the-Loop rigs that feed it the signals it would receive in the Defender, under simulated heat, vibration and load, and record every fault before work starts.

4. Repair and a second full test

   Our in-house engineers carry out the repair in a cleanroom-standard, ESD-safe workshop. The full test then runs again, and the needles, warning lamps, display and chimes must all pass before the cluster is signed off.

5. Returned ready to refit

   The cluster comes back showing the same recorded mileage and covered by a lifetime warranty, ready to go back into the dashboard.

Do we repair other Land Rover clusters?

Yes, and each model has its own page: Discovery 3 instrument cluster repair, Range Rover 2005-2015 cluster repair and Freelander 2 2006-2014 cluster repair.
