Audi C10AD29 Fault Code: Steering Defective Warning and Rack Repair

C10AD29 tends to turn up the same way: a red message on the cluster, a wheel that suddenly takes real effort, and a scan that points at the steering. This page explains what the code reports, why it travels with B200049, which Audi racks log it, why their electronics give out, and what repairing your own rack involves. Every steering system we cover is gathered in our electric power steering repair hub, and the smaller Audi A3 rack has its own guide to Audi A3 electric power steering problems.

What does Audi fault code C10AD29 mean?

C10AD29 is an Audi electric power steering fault code for the motor position sensor, stored by the control unit built into the steering rack. On 2011–2018 A4, A5, A6, A7 and Q5 racks it usually appears with B200049 and the red ‘Steering defective’ warning, and assistance is switched off. The fix is a repair of the rack.

Put plainly, the steering’s electronics have stopped believing what the assist motor is telling them. The control unit checks its motor constantly, and when that information stops adding up it logs C10AD29. Garage scan tools may show it as C10AD with a short status suffix, worded along the lines of a motor position signal that is implausible.

The code records where the control unit lost confidence. It does not say the rack is finished, and it does not tell anyone what has failed or why. That is found on the bench, with the rack complete.

C10AD29 and B200049: why the rack switches its own assistance off

B200049 is the internal control module error: the control unit reporting a problem with itself rather than with something it monitors. On these Audi racks it is the code most often found next to C10AD29, and the pair tell one story from two sides. The electronics on the rack are the problem.

Withdrawing assistance is deliberate. Electric steering acting on motor data it cannot trust is a greater risk than no assistance at all, so the control unit falls back to plain mechanical steering and lights the red warning to say it has done so.

That is why a heavy wheel on its own is not evidence of a worn rack. It is the system making itself safe.

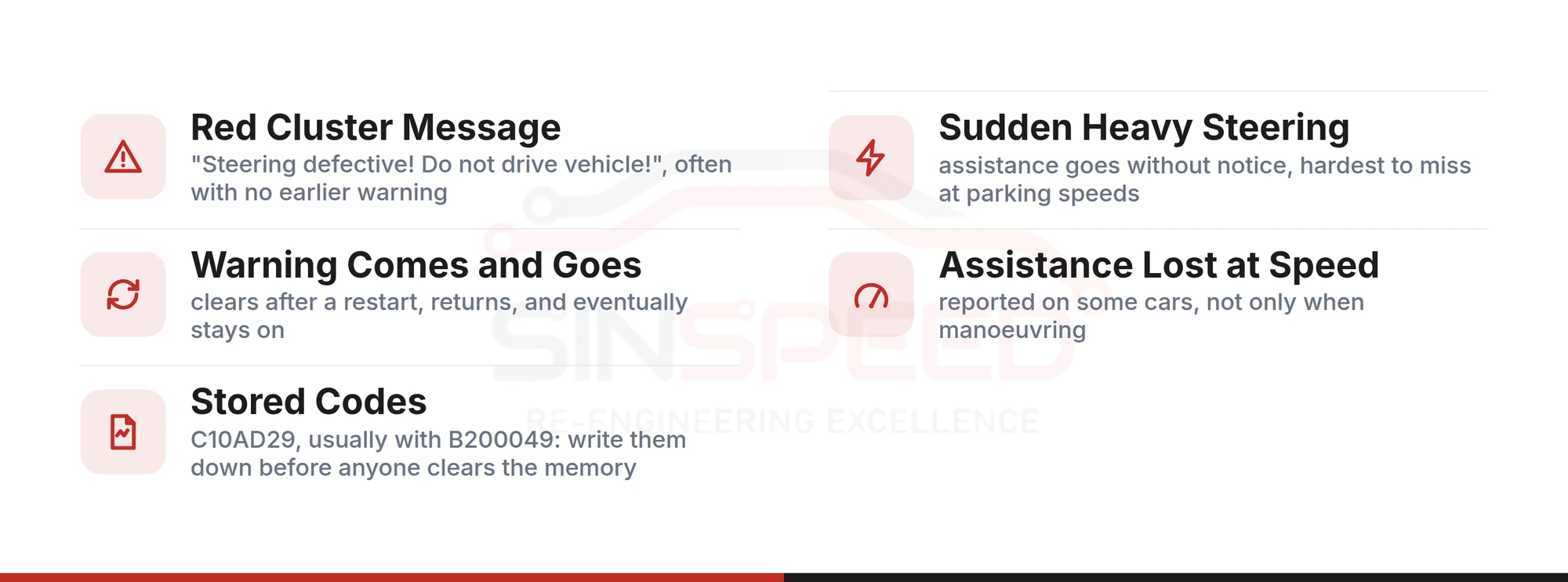

‘Steering defective! Do not drive vehicle!’: the symptoms owners report

These are the signs that come with C10AD29 on the Audi racks we repair. Most cars show more than one.

• The red cluster message. ‘Steering defective! Do not drive vehicle!’ appears, often with no earlier warning that the driver noticed.
• Sudden heavy steering. Assistance goes without notice, and it is hardest to miss at parking speeds, where these heavier cars need help most.
• A warning that comes and goes. The message clears after a restart, returns, and eventually stays on.
• Assistance lost at higher speeds. Reported on some cars, rather than only when manoeuvring.
• Poor self-centring. The wheel is slow to return after a turn.
• A car that will not start. Occasionally, while the fault is active.

Which Audi models log C10AD29: A4, A5, A6, A7 and Q5 racks (2011-2018)

C10AD29 belongs to the electric rack family Audi fitted across its mid-size and larger models from 2011 to 2018. Each model below links to its own rack repair page.

On the A6, check the generation. The C7 (chassis code 4G) uses the electric rack; the earlier C6 has a hydraulic rack, so this fault and this repair do not apply to it.

Match the rack by the label on its control unit rather than by the badge on the boot. These are the numbers we commonly see across this family:

Photograph the label before removal and quote the number on the repair form. A number missing from this list is no reason to rule the repair out; send it to us and we will check it.

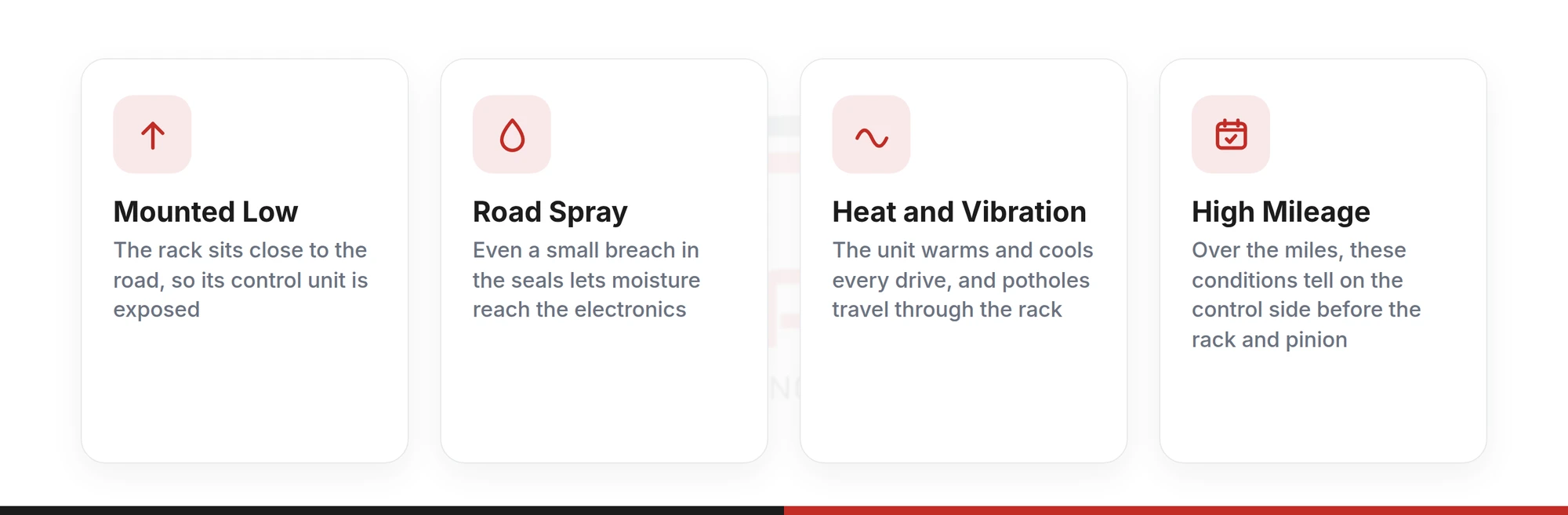

Why the control side of an Audi rack fails before the rack itself

On these cars the rack carries its own assist motor and control unit, with no hydraulic pump. The mechanical rack and pinion is built to last the life of the car. The electronics fixed to it live in a harder place.

Mounted low. The rack sits low in the car and close to the road. On the A6 its control unit is about the lowest point above the road surface.

Water. Spray reaches the rack on every wet journey, so even a small breach in the seals lets moisture get to the electronics.

Heat and vibration. The unit warms and cools with every drive, and every pothole and kerb travels through the rack it is bolted to.

Miles. Over a high mileage, those conditions take their toll on the control side long before the rack and pinion reaches the end of its life.

The same reasoning applies to replacements. A new rack of the same design goes back into the same exposed position, to face the same spray, heat and vibration.

Control fault or worn rack: what the code can and cannot tell you

C10AD29 and B200049 say the control unit has lost faith in its motor data, or in itself. Neither code points at the steering column, the tie rods or the wiring, and C10AD29 is not a torque sensor code, whatever some advice suggests.

What the codes cannot report is the state of the mechanical rack. A rack can carry a control fault and mechanical wear at the same time, which is why we judge both before any work starts.

Clearing the code changes none of this. If the control side has failed, the fault comes back, and a cleared memory leaves less evidence for whoever tests the rack.

When the codes point at the electronics, repairing the original is the direct route. A replacement rack has to be matched to the car, and an exchange unit usually means handing your old rack back as a core. A repaired rack avoids both and goes back onto the car it came from.

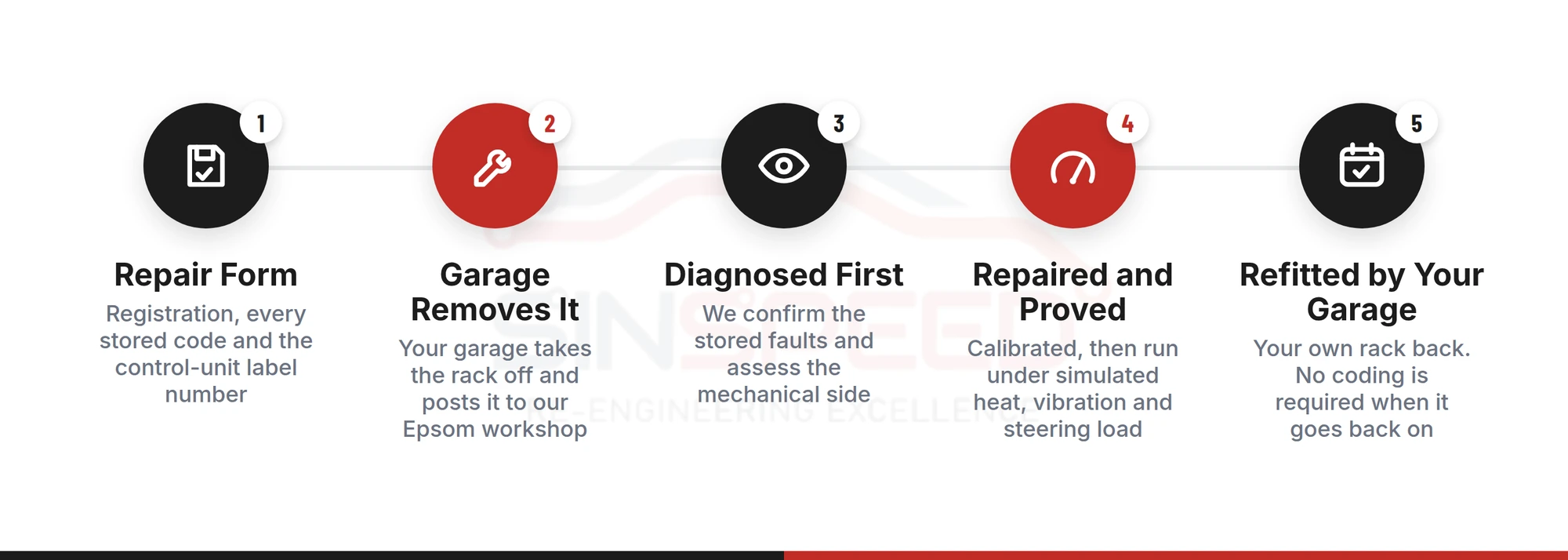

How we test and repair your Audi steering rack

Audi racks reach our Epsom workshop by courier, complete and exactly as they came off the car. Taking the rack out is your garage’s side of the job; finding and fixing the fault is ours.

1. Log the rack with us

   Use the repair form to give us the registration, every stored code as the scan tool showed it, the control-unit label number and the pattern of the fault: when it appears and whether a restart clears it. Send the form ahead or pack a printed copy in the box.

2. Off the car and into the post

   Your garage removes the rack as it would for any steering rack job, covers the electrical connectors, protects the ends and boxes it for the courier.

3. Diagnosed before any work

   Our engineers confirm the stored faults for themselves and assess the mechanical side, so the repair is aimed at what is actually wrong rather than at the code alone.

4. Repaired and proved under load

   The rack is repaired in our cleanroom-standard, ESD-safe workshop and calibrated with dealer-level diagnostic equipment. It then runs on our Hardware-in-the-Loop rig under simulated heat, vibration and steering load, and leaves only once it passes.

5. Back onto its own car

   Your garage refits the rack, carries out the steering-angle basic setting and checks the alignment, the normal fitting steps after any rack is fitted. No coding is required when it goes back on.

Most of our remanufactured parts carry a lifetime, unlimited-mileage warranty. If testing turns up something you were not expecting, you hear it from us, with our findings, before the work goes ahead.
