Mazda 2 Skyactiv TCM Repair: Skyactiv-Drive Automatic (DJ, 2015 On)

This page is for owners and garages with a Skyactiv-Drive Mazda 2 that has started changing gear badly or dropped into limp mode. It sets out which Mazda 2 is which, what the TCM does, the signs that put it under suspicion and how a repair reaches us and returns. For the background, read what a transmission control module is; other gearbox controllers sit within our transmission control module repairs.

Which Mazda 2 do you have: Skyactiv-Drive or Durashift?

Two very different automatic Mazda 2s come to us, and they have little in common beyond the badge. The DY, built from 2003 to 2007, used Durashift, an automated manual run by a Bosch TCU. The third-generation DJ, built from 2015, uses Skyactiv-Drive, a six-speed automatic with a torque converter and its own TCM. Different gearboxes mean different controllers, which is why each car has its own page.

Driving a DY? Our Durashift Mazda 2 TCU repair page deals with that car. If yours fits neither column, or you are not sure which you have, send us the part number from the control unit along with the registration, and we will tell you before anything is removed.

What does the TCM do on a Skyactiv-Drive gearbox?

In its basic layout Skyactiv-Drive is a conventional automatic. A torque converter couples the engine to the gearbox, and hydraulic pressure, directed by solenoids, engages each of the six gears. A lock-up function ties the torque converter solid at higher road speeds, so less drive is lost to slip.

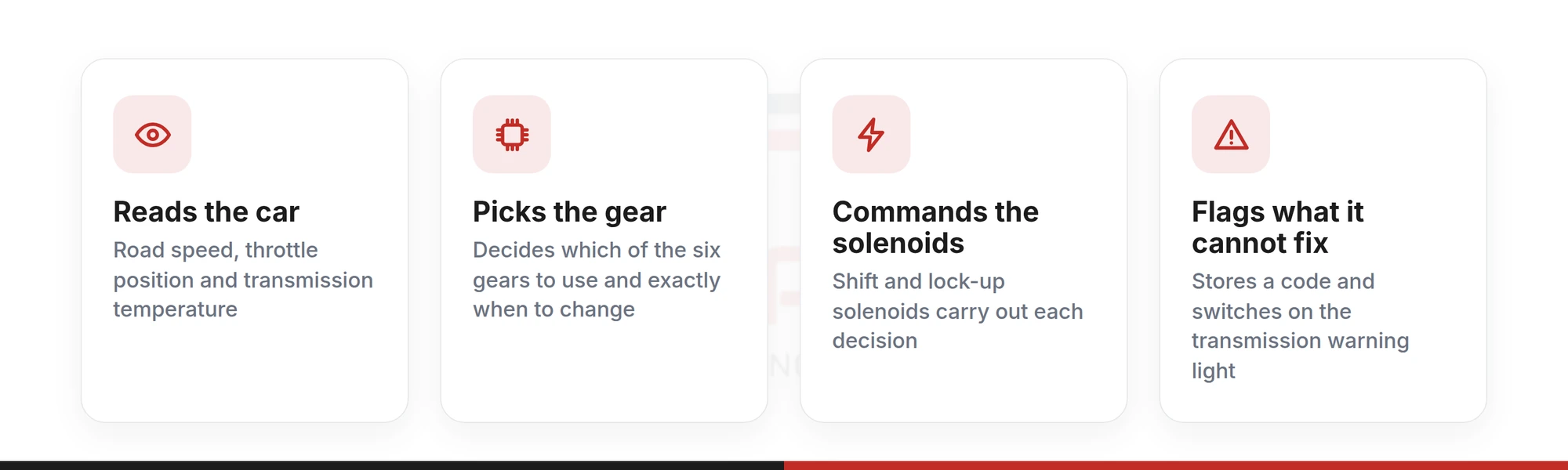

The TCM governs all of it. It reads road speed, throttle position and transmission temperature, picks the gear and the moment to change, and commands the shift and lock-up solenoids to carry the decision out. When it detects a fault it cannot correct, it stores a code and switches on the transmission warning light.

Everything the gearbox does, then, it does on the TCM’s instruction. That is why a fault in the module so rarely presents as an electronic one. It shows up as a change in how the car drives.

Mazda 2 automatic gearbox problems that point at the TCM

These are the complaints worth noting before the car goes in. Most of them can come from the TCM or from the gearbox itself, so the overall pattern tells you more than any one of them.

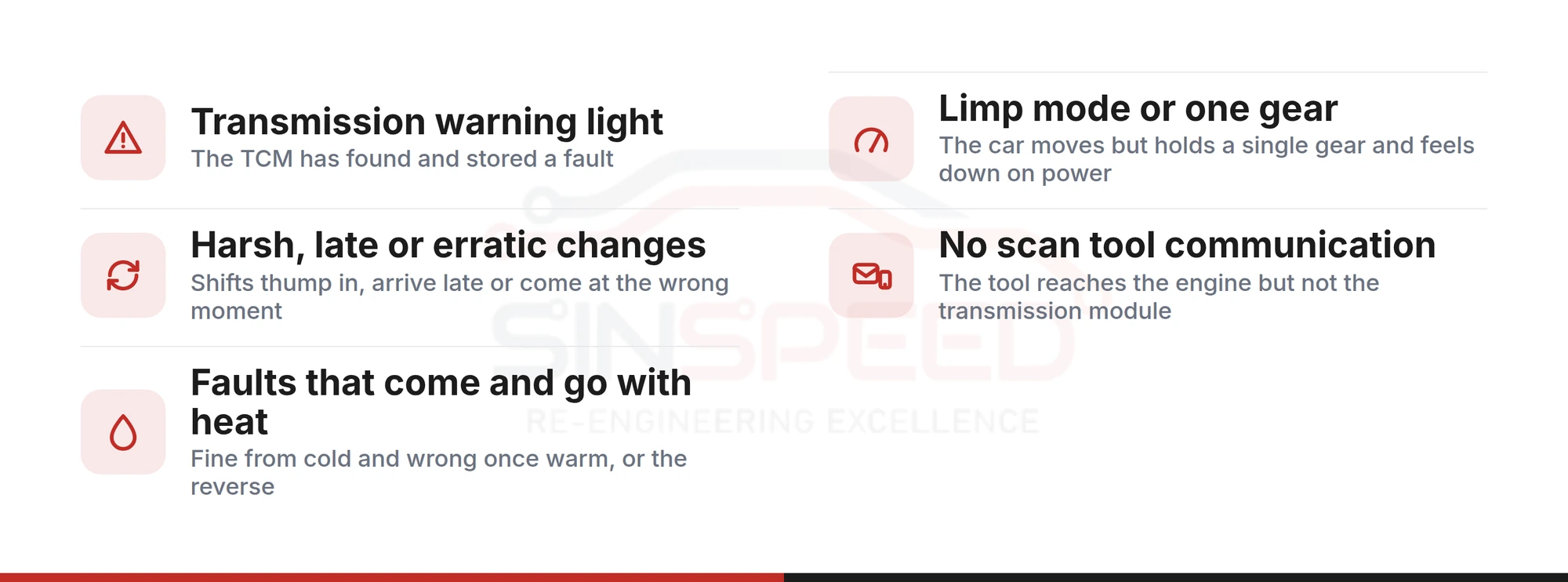

• Transmission warning light. The TCM has found a fault and stored it. The code says where to look; the light on its own does not.
• Limp mode, or stuck in one gear. The car still moves but holds a single gear and feels badly down on power.
• Harsh, late or erratic changes. Shifts that thump in, arrive late or happen at the wrong moment.
• Hesitation from a standstill or on kickdown. A pause between pressing the accelerator and the gearbox responding.
• No communication with a scan tool. The tool reaches the engine but gets no answer from the transmission module.
• Faults that come and go with heat. Fine from cold and wrong once warm, or the reverse, then normal again after the car has rested.

Timing is the detail that helps most. A fault that appears only when hot, only at one road speed or only since a flat battery narrows the search further than the symptom itself, and that is exactly what we need written on the repair form.

Why a failing TCM feels like a failing gearbox

The TCM is the only part of a Skyactiv-Drive that makes decisions. If its outputs drift, or it misreads a sensor, a mechanically sound gearbox will change late, change hard or refuse to change, and it will do so faithfully. From behind the wheel, that is impossible to tell apart from internal wear.

Getting this wrong only goes badly one way. A gearbox condemned because of a faulty TCM is replaced or rebuilt, then behaves just as before once the same module is plugged back in. Testing the TCM on its own, before anyone opens the gearbox, settles the question.

Before the TCM comes off, check the simple things: battery condition, the earths and the connector. Then have the transmission module read in full. A basic code reader that only talks to the engine will miss its codes, and our guide to transmission control module fault codes explains how to make sense of what comes back.

One line we draw plainly: we repair the TCM. Internal mechanical work on the gearbox, such as the clutch packs, the torque converter or the gearsets, is not something we carry out. Testing the TCM first is still the right order, because it is the one part that can make a healthy gearbox look worn out.

What wears a transmission control module down?

None of what follows is a Mazda failure statistic. These are the pressures every gearbox control unit works under, and the Skyactiv-Drive’s TCM is no exception.

• Heat. Each journey warms the module and its surroundings and each cool-down reverses it, and that cycling adds up over a car’s life.
• Vibration. Engine and road vibration reach the unit and its connector on every mile.
• Age. Electronics drift with years of service, and a module that once made every decision correctly can start making slightly wrong ones.
• Supply voltage. A failing battery, a flat one brought back by a jump start, or a poor earth can unsettle a control unit, and can also create faults that look like a failed one.
• Fluid condition. Degraded fluid can leave the solenoids the TCM drives responding out of step with its commands, so the module sees results it never asked for and logs faults against them.

The decline is usually gradual and intermittent. A fault that is absent on a cool morning and present after a long run is typical of a degrading control unit, and it is precisely the kind that gets put down to the gearbox.

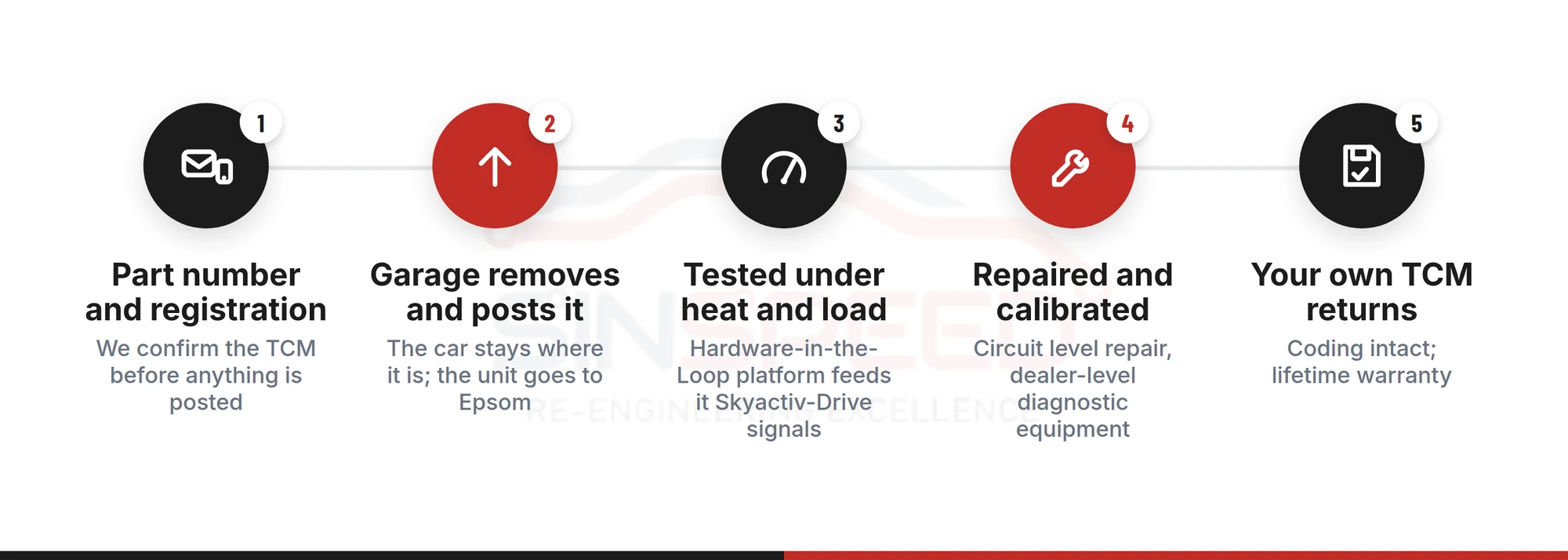

From part number to refit: how a Mazda 2 TCM repair works

The process starts with a check, not a parcel.

1. Part number and registration first

   Before anything is unplugged, send us the part number from the TCM along with the car’s registration, through the repair form or the contact page. We confirm it is a unit we can take on, and only then does anything go in the post.

2. Your garage takes it off

   Once we have given the go-ahead, your garage removes the TCM and packs it securely, together with the scan results and a note of when the fault appears. The car itself never needs to come to Epsom.

3. Tested as if it were still in the car

   In our workshop the module is connected to one of our in-house Hardware-in-the-Loop platforms. It receives the signals a running Skyactiv-Drive would send, and we work through heat, vibration and electrical load to bring out the behaviour your notes describe.

4. Repaired at circuit level

   Our electronic engineers repair the unit at circuit level in a cleanroom-standard, ESD-safe workshop, and calibrate it with dealer-level diagnostic equipment before it is packed for return.

5. Your own TCM goes back in

   It returns to the Mazda it came from, still carrying that car’s coding, so your garage reconnects it without a coding step. Should the car ask for a relearn once the unit is back, that is a routine part of fitting after any removal. The repaired unit is backed by our lifetime warranty.

Because the unit that comes back is the one your Mazda already knows, there is nothing new to introduce to the car.
