Ford Focus Dashboard Warning Lights: The Symbols, the Message Centre Warnings and the Units Behind Them

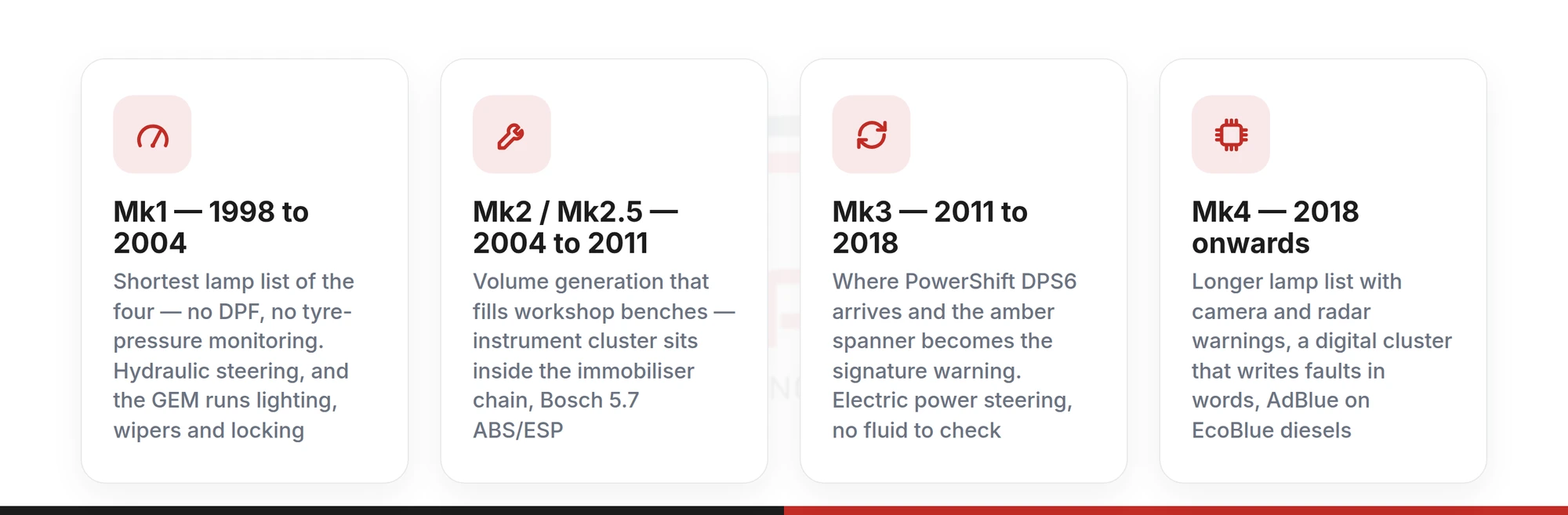

Which Focus are you sitting in, and why it changes the answer

The colour code behaves the same way on a Focus as on anything else — red means stop as soon as you safely can, amber means a fault has been stored, green and blue simply confirm something is switched on — and our guide to common car warning lights sets that out in full. What the colour cannot tell you is which Focus you are sitting in, and on this car that is the question that decides the answer.

Four generations are on UK roads in numbers, and the electronics behind the dashboard changed at every break. The gearbox, the steering assistance, the anti-lock unit and the instrument cluster are different parts from one generation to the next, which is why a fault that is genuinely common on one Focus does not exist on another. The date of first registration on the V5C settles which one you have.

Focus Mk1 (1998 to 2004)

The shortest lamp list of the four, and the easiest to misread, because generic advice keeps offering it systems it was never built with. No particulate filter, no tyre-pressure monitoring, and stability control only on a minority. Steering is hydraulically assisted, so there is a fluid reservoir under the bonnet to check. The electronics story here is Ford’s Generic Electronic Module, the GEM, which runs lighting, wipers, indicators and central locking — when it misbehaves you get odd lighting and wiper behaviour rather than an engine lamp.

Focus Mk2 and the Mk2.5 facelift (2004 to 2011)

The volume generation on the used market, and the one that fills workshop benches. Its headline failure is the instrument cluster, which on these cars sits inside the immobiliser chain — so a cluster fault can present as a car that will not start with the theft light flashing, rather than as anything you would recognise as a dashboard problem. This is also the era of the Bosch 5.7-generation anti-lock and stability unit, and of the older TDCi diesels whose injection pumps carry their own control module. Steering is still hydraulic on most. One detail that matters later: every Mk2 was first used before 2012, which changes what an MOT tester is required to look at.

Focus Mk3 (2011 to 2018, facelifted 2014)

Where the PowerShift DPS6 automatic arrives, and where the amber spanner becomes the Focus’s signature warning. Steering assistance moves to an electric motor on the column, so there is no power steering fluid to check and no reservoir to find. Tyre-pressure monitoring, stop-start and the first of the driver-assistance lamps all appear here. Because these cars were first used from 2012 onwards, the airbag, tyre-pressure and steering warning lamps are now items an MOT tester checks — which they are not on a Mk2.

Focus Mk4 (2018 onwards)

A longer lamp list, and a good share of it belonging to cameras and radar rather than to the engine or the brakes. Higher trims carry a digital instrument panel that writes warnings in words alongside the icon, an electric parking brake is fitted to some versions, and the EcoBlue diesels with an SCR exhaust add AdBlue warnings. A Mk3 fault pattern should not be carried across to it: a Mk4 with the anti-lock and stability lamps lit needs its own codes read on their own merits.

Ford Focus warning lights and symbols: the full reference table

Two things about this table before you use it. It is filtered to lamps a Focus actually carries, so the four-wheel-drive, trailer and commercial-vehicle symbols that pad out marque-wide Ford guides are not here — and when you are trying to match a shape you can see against a list you cannot, that padding is a genuine obstacle. Second, the safe-to-drive column is deliberately cautious. Where a fault could reasonably be trivial or serious, it assumes serious. Symbols shift slightly across the generations and trim levels, so check the handbook for anything you cannot match here.

Colour	Symbol	What it means on a Focus	Is it safe to drive?
Red	Brake system — an exclamation mark in a circle with a bracket each side	The handbrake is still applied, the brake fluid has fallen below minimum, or there is a fault in the braking system.	No, unless it goes out the moment the handbrake is fully released. If it stays lit, stop somewhere safe and arrange recovery.
Red	Brake system and ABS lit together	Both braking systems are reporting at once. Electronic brake force distribution is handled by the same unit, so this pairing can mean braking is no longer balanced front to rear.	No. Brake gently, stop as soon as it is safe, and have it recovered rather than driven to a garage.
Red	Engine oil pressure — an oil can with a drip	Oil pressure has fallen. This is the red pressure lamp, not the amber level warning further down.	No. Switch the engine off. Bearings are damaged in seconds without oil pressure, not in miles.
Red	Coolant temperature — a thermometer in wavy lines	The engine is overheating. Usually a leak, a failed thermostat, water pump or radiator fan. Often paired with an over-temperature message.	No. Stop, switch off and let it cool. Never open a hot expansion tank.
Red	Charging system — a battery with plus and minus terminals	The charging system is no longer replenishing the battery. Alternator, drive belt or wiring.	Only as far as somewhere safe. Everything is running on stored charge, and the car stops when it is gone.
Red	Airbag and restraints — a seated figure facing an inflated circle	The restraint system has stored a fault. An airbag or a seatbelt pretensioner may not fire in a collision.	The car drives normally, but the protection you are relying on is not there. Have it read straight away, whatever the MOT position for your generation.
Red	Power steering — a steering wheel with an exclamation mark	Steering assistance has been cut. On a Mk3 or Mk4 the assistance is electric, so there is no fluid behind this lamp.	No. Assistance can disappear without notice, and the steering goes heavy at exactly the moment you need it.
Red or amber	Theft indicator — a car outline with a key	Ford’s immobiliser lamp. A slow flash with the ignition off means the system is armed and nothing is wrong. Rapid flashing, or the lamp staying lit after cranking, means the key was not authenticated.	If the engine has started, yes for now. If it cranks and dies, it is not going anywhere until the codes are read.
Red	Seat belt reminder — a seated figure with a belt across the chest	A belt is unfastened, or something on a seat is being read as an occupant.	Not a fault. Belt up, or move the object.
Red	Door, bonnet or boot ajar — a car outline with panels open	A closure is not properly latched. The Focus usually names which one in the message centre.	No. Stop and shut it properly.
Amber	Engine management — an engine block outline	Steady: a stored engine or emissions fault. Flashing: an active misfire, which can destroy the catalytic converter in a short distance.	Steady, with the car driving normally: gently, and get the codes read within days. Flashing: stop. A malfunction indicator lamp that stays lit is also an MOT defect.
Amber	Powertrain fault — a plain spanner	Not a service reminder. On a Ford this is the powertrain and driveline warning, and on an automatic Focus it is the lamp a gearbox fault arrives with.	Depends what the car is doing. Driving normally: short journeys and get it read. Juddering, refusing gears or in limp mode: stop using it.
Amber	ABS — the letters ABS in a circle with a bracket each side	The anti-lock system has switched itself off. Ordinary braking is unaffected.	Yes, with care, provided the red brake lamp is not lit as well. The wheels can lock in an emergency stop, so leave more room and brake earlier. It is also an MOT defect.
Amber	Stability and traction control — a car above skid marks	Flashing means the system is intervening and doing its job. Steady means it is switched off or has a fault.	Flashing on a wet or greasy road is normal. Steady on dry tarmac in ordinary driving means it is not protecting you — get it read.
Amber	Stability control off — the same car and skid marks with OFF beneath	Stability control has been switched off, usually deliberately with the button.	Yes, but switch it back on. If pressing the button changes nothing, treat it as a fault rather than a setting.
Amber	Power steering, reduced — an amber steering wheel	Assistance is reduced rather than absent, or the system has derated itself. Usually accompanied by a power steering assist message.	With care, and not far. Reduced assistance can become no assistance without warning.
Amber	Tyre pressure monitoring — a horseshoe with an exclamation mark	A tyre is below pressure, or the system can no longer make sense of what it is reading. Fitted from the Mk3 onwards.	Only as far as somewhere you can check all four pressures. Reduce speed and avoid hard braking until you have.
Amber	Diesel particulate filter — a filter box with dots inside	The filter is loaded with soot and wants a regeneration. Flashing, or lit alongside other lamps, means it has gone past that point.	Steady, yes — a sustained run at a steady motorway speed with the exhaust properly hot often completes a regeneration. Beyond that it needs cleaning properly before the car starts limiting itself.
Amber	Diesel only — a coiled filament (preheat), and a filter with a water droplet	The coil is normal for a few seconds before a cold start; lit while driving it is a stored engine fault instead. The droplet means water has collected in the fuel filter and needs draining.	Preheat lamp while driving: yes, briefly, then get the codes read. Water in fuel: only briefly — water reaching the injection system does expensive damage.
Amber	Low levels — an oil can with a level line, and an expansion tank with a level line	Engine oil or coolant is below minimum. Neither is the red pressure or temperature lamp, and the two pairs are confused constantly.	Yes, briefly. Check the level with the engine cold and top up before going any further. A level that drops again quickly is a leak, not a habit.
Amber	Brake pad wear — a circle drawn as a broken dashed ring	The wear sensor has reached the pads’ limit.	Yes, but book it now. The warning arrives with a margin left, and that margin is finite.
Amber	Lighting faults — a bulb with a break through it, and a headlamp with an exclamation mark	An exterior lamp is out, or the circuit driving it has failed. On adaptive headlamps the second symbol reports a fault in the levelling or bending system.	Yes, but a lamp that is out is an MOT failure and a hazard after dark. A warning that persists after a new bulb is pointing at the circuit, not the bulb.
Amber	Stop-start unavailable — the letter A inside a circular arrow	The system has taken itself out of use. Most often the battery no longer holds enough charge for it, or the battery monitoring sensor is unhappy.	Yes. The engine simply stops shutting down at junctions. Have the battery and its sensor checked.
Amber	General warning — an exclamation mark in a triangle	A catch-all. The symbol carries no information on its own; the text in the message centre beside it is the actual warning.	Read the message first and treat it as whatever it names. Amber means get it looked at, not ignore it.
Amber	Driver assistance, Mk3 and Mk4 — a car between lane lines; a car with a bracket in front of it; a wing mirror with waves beside it	Lane keeping aid, forward alert or blind spot monitoring is unavailable. Amber usually means the camera or radar cannot see: ice, snow, road film, or something on the windscreen in front of the camera.	Yes. The car drives normally and the assistance is simply not there, so do not rely on it until the lamp goes out.
Amber	Fuel system reminders — a fuel cap symbol, and on later diesels an AdBlue warning	The filler cap is not sealed, which can set an emissions fault of its own, or the AdBlue tank on an EcoBlue diesel is running down.	Yes. Reseat the cap until it clicks. Top the AdBlue up before it empties, because the car will refuse to restart once it does.
Green, blue and amber tell-tales	Dipped beam, main beam, indicators, front and rear fog lights, low fuel, passenger airbag switched off	These confirm that something is switched on or that a level is low. They are indications rather than faults.	Yes. Two are worth a second look: the rear fog light dazzles the car behind, and a passenger airbag shown as off should be off deliberately.

Ford Focus message centre warnings, and what the wording means

The Focus tells you more in words than in symbols, and the written half is the specific half. Wording varies with model year and with which display the car has, and some messages clear when you switch off — so cycle the message centre with the steering wheel or stalk controls and write down exactly what it says before you turn the key back. That sentence is worth more to a diagnostic technician than any description of the shape you saw.

Why the amber spanner on a Focus is a powertrain warning, not a service light

This is the one symbol where advice written for other makes actively misleads you. On a great many cars a spanner means a service is due. On a Ford it does not. The amber spanner is the powertrain fault indicator: it covers the transmission and driveline electronics, and on an automatic Focus it is the lamp a gearbox fault arrives with.

Two distinctions save real money here. The engine block outline is engine management and emissions; the spanner is powertrain, and they are separate systems reporting separately. And when a Focus wants a service it says so in words, with an oil change message in the display — it does not ask with this symbol. Owners who read the spanner as a service reminder book the car in, collect it, watch the lamp return a fortnight later, and have given the actual fault another month to develop.

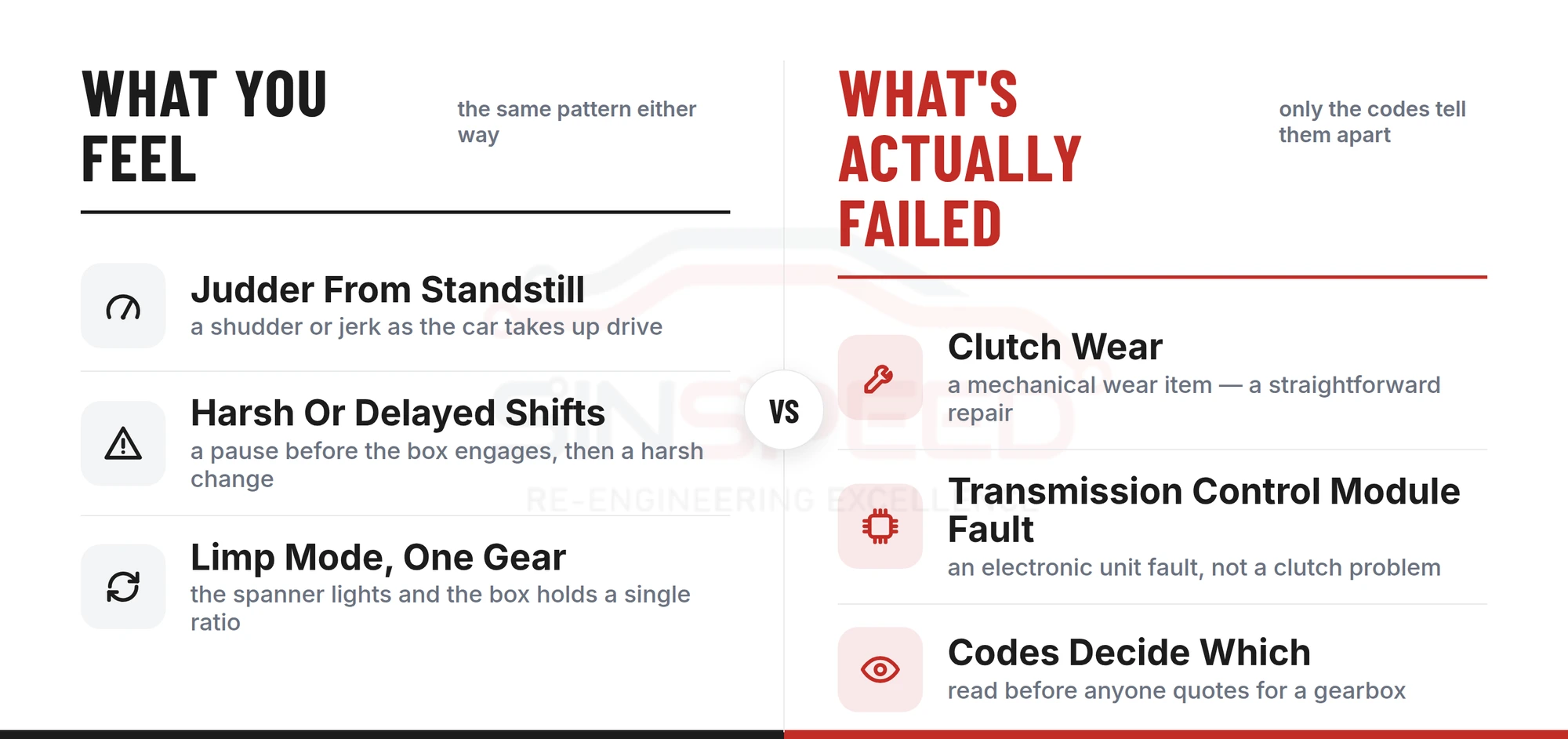

The PowerShift wrench light: what a DPS6 fault looks like from the driver’s seat

The PowerShift DPS6 is a six-speed automatic that uses two dry clutches rather than a torque converter, fitted to Focus and Fiesta from the Mk3 era. It behaves differently from a conventional automatic even when it is healthy, which is part of why faults get tolerated for so long before anyone investigates.

The pattern is recognisable. A shudder or judder as the car takes up drive from a standstill, a pause before the gearbox engages, harsh or delayed shifts, a transmission fault message, the spanner lit, limp mode holding a single gear — and at the far end, no drive at all. Treat that last one as a safety matter rather than an inconvenience: a car that cannot pull away in traffic, or that drops out of drive while moving, needs recovering rather than nursing home.

What matters diagnostically is that two very different causes produce a similar set of symptoms. Clutch wear is one. A fault in the transmission control module is the other, and that is an electronic unit rather than a mechanical rebuild — which is why having the codes read before anyone quotes for a gearbox is the difference between a repair and a replacement. Our guide to Ford PowerShift problems goes through the fault in detail, and the control unit itself sits under transmission control module repairs.

The theft light: PATS, the spare key test, and a Focus that cranks but will not start

PATS is Ford’s Passive Anti-Theft System. A transponder in the head of the key is read by an antenna around the ignition lock, and if the car cannot authenticate it, fuelling and ignition are blocked. That is the whole mechanism, and knowing it turns a mystifying lamp into a short checklist.

Normal behaviour first: a slow flash with the ignition off means the system is armed and nothing is wrong. With the ignition on, the lamp should light briefly and then go out. Rapid flashing, or a lamp that stays lit after cranking, means the key was not recognised. The classic presentation is an engine that cranks strongly, fires for a moment and dies — or does not fire at all — while everything else on the car works perfectly.

Try the spare key before anything else. It costs nothing and it separates a failing key from a failing module in one attempt. If both keys behave the same way, the fault is in the car. On Mk2 cars there is a further wrinkle worth knowing: the instrument cluster forms part of the PATS chain, which is why an intermittent non-start with a flashing theft light so often ends at the dashboard rather than at the key. Our pages on the Ford PATS no-start and theft light and on whether a car that will not start is the immobiliser take it from there.

When the Focus instrument cluster is the fault rather than the messenger

Check this one early, because a cluster that is misreporting makes every other lamp on this page untrustworthy. You are no longer diagnosing the car; you are diagnosing the thing describing the car to you.

• Gauges that drop to zero while you are driving, stick, or sweep on their own.
• A display that is dead, dim, or comes and goes with temperature.
• Missing segments, blank rows of pixels, or a mileage reading that flickers or shows dashes.
• Backlighting that has failed in patches, so part of the panel is readable and part is not.
• Several unrelated warning lamps lit at once with no system actually reporting behind them.
• Intermittent non-starting, or the engine cutting out, with the theft light flashing.

The last of those is the Focus-specific one, and it is why cluster faults on these cars get misdiagnosed as immobiliser, key or starting problems. On the Mk2 the same cluster design is shared with the Galaxy and the S-Max, and it is repaired as a unit — our Ford Focus, Galaxy and S-Max instrument cluster repair page covers what fails inside it and how the repair is carried out, with the wider work under instrument cluster repairs. Repairing your own unit keeps your mileage and your PATS pairing where they are, which is exactly why a second-hand cluster out of another Focus usually will not start your car however well it matches on part number.

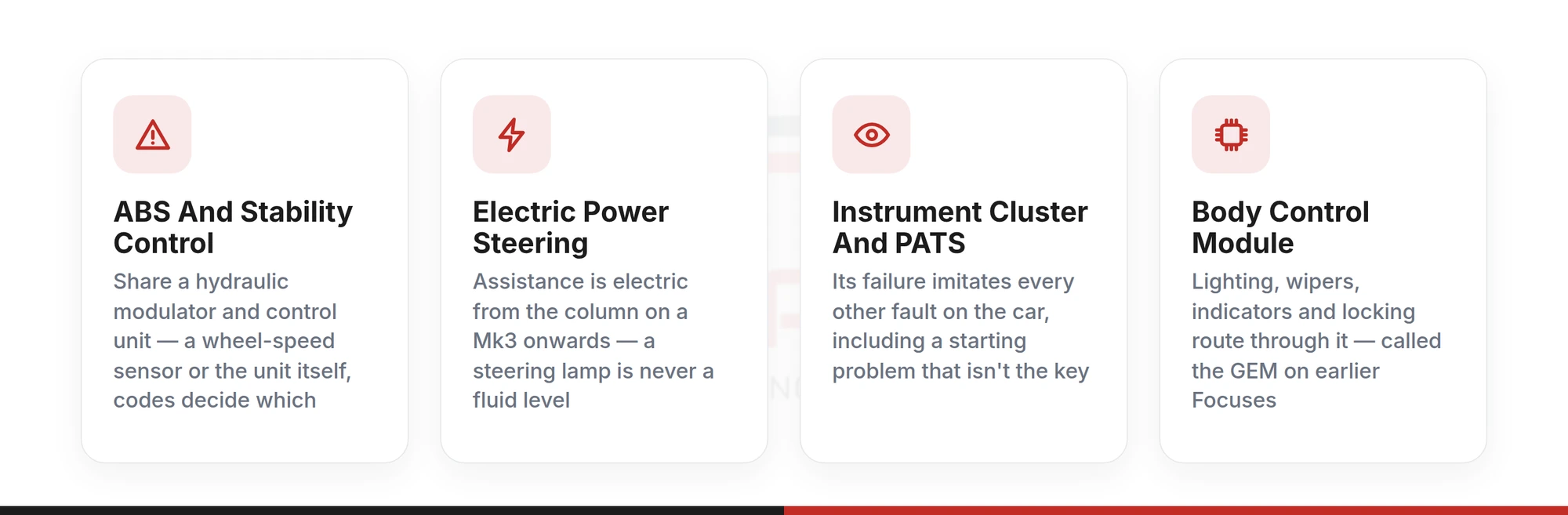

The Focus warning lights that point at a failed electronic module

Most lamps on a Focus are a sensor, a fluid, a bulb or a service interval, and working through those first is the right order. A handful are different: they sit in front of a control unit with a recognised failure pattern on these cars, and no amount of checking levels will move them. The units below are a narrow slice of everything we repair, picked because these are the ones that announce themselves with a lamp on the dashboard rather than a noise or a leak.

ABS and stability control

The two systems share a hydraulic modulator and a control unit, so a fault in one commonly lights both, and it takes hill start assist with it. The question that matters is whether the fault is in a wheel speed sensor, which is a straightforward replacement, or inside the unit, which is not — and the codes answer it. Ford used the Bosch 5.7 ABS and ESP pump module widely across this era, and because a unit like that is half hydraulics and half electronics, it is worked on here by a team that includes hydraulic engineers as well as electronic ones. The range sits under ABS pump and module repairs, and if you want the background first, we cover what an ABS pump is and how it works and whether an ABS light is an MOT fail separately.

Electric power steering

From the Mk3 the assistance comes from an electric motor on the steering column, so a steering lamp is never a fluid level and topping something up is not an option. Steering that is heavy from cold and normal once warm, assistance that fades in and out, or a wheel that goes heavy at one speed and not another all point at the electronics rather than the rack. That column is repairable as a unit — see Ford Focus electric power steering column repairs and the wider steering repairs.

The gearbox

On a PowerShift Focus the transmission control module is the electronic half of the problem and is repaired as a unit under transmission control module repairs. Ford’s earlier automated-manual arrangement, used elsewhere in the range, works differently: it drives an external clutch and gear actuator instead, which is a separate repair covered under clutch actuators. Confirming which gearbox you have before ordering anything is not a formality.

The instrument cluster and PATS

Covered in full above, and it belongs on this list because it is the one unit whose failure imitates every other fault on the car — including a starting problem that has nothing to do with the key.

The body control module

Lighting, wipers, indicators, central locking and the bulb monitoring behind them are handled by the body control module, called the Generic Electronic Module on earlier cars. A bulb failure warning that persists after a new bulb, indicators that flash at the wrong rate with nothing blown, wipers with a mind of their own or locking that works from one door and not another are its signature. We explain what a body control module is in its own guide.

The diesel injection pump control module

On the older Ford diesels the injection pump carries its own electronic control module, and when it fails you get non-starting, poor running or cutting out with an engine management lamp rather than anything that looks like a fuel problem. It is repairable as a unit — see Ford diesel pump EDC repairs.

Engine management and turbo faults

Both have too many possible causes to guess at, so the codes come first. Where diagnosis points at an internal failure of the engine ECU itself, that work belongs with the independent specialists at ecu-repairs.com; a turbocharger fault, which often lights the same lamp alongside lost boost and a smoke complaint, belongs with our turbo specialists at turbo-repairs.com, our sister site for everything turbo. Sending the codes to the right specialist first is quicker than posting a unit to the wrong one.

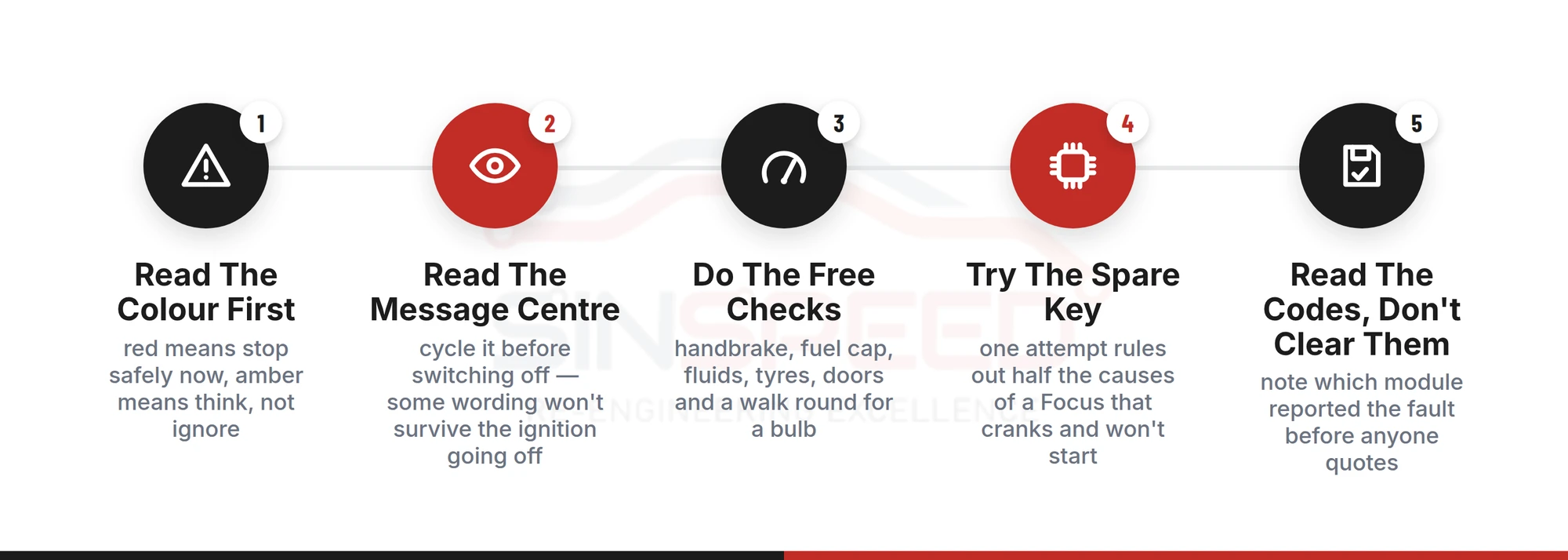

What to do when a warning light comes on in your Focus

1. Take the colour at face value. Red means find somewhere safe and stop. Amber means you have time to think, but not an unlimited amount of it.
2. Read the message centre before you switch off. Cycle it with the steering wheel or stalk controls and write the wording down exactly. Some messages do not survive the ignition going off, and you will not get them back.
3. Separate the spanner from the engine block. One is powertrain, the other is engine management. On a Focus this single distinction decides which half of the car you investigate.
4. Do the checks that cost nothing. Handbrake fully off, fuel cap clicked shut, oil and coolant levels with the engine cold, all four tyre pressures, doors and boot properly latched, and a walk round for a dead bulb.
5. Try the spare key if the theft light is involved. One attempt, no cost, and it rules out half the possible causes of a Focus that cranks and will not run.
6. Have the codes read and recorded, and note which module reported them. A Ford will tell you whether the fault came from the PCM, the TCM, the ABS module, the instrument cluster, the steering module or the restraints module. That is half the diagnosis, and clearing the codes destroys it.
7. Match the fault to the generation, not to the badge. A Focus problem described online is only useful once you know which Focus it was found on. This is where a correct diagnosis and an expensive guess part company.

Two rules hold throughout. Never attempt a do-it-yourself repair on the braking or restraint systems, and never clear a safety lamp simply to stop it bothering you. If you are working on a different Ford, the same method applies — we have built Ford Ka warning lights and Ford Puma dashboard symbols the same way, and the VW Polo, Peugeot and Fiat 500 guides do the same job for those makes.
