Corsa 1.2 Easytronic Clutch/Gearbox Actuator Repair Service

This page is about the Corsa alone: what Corsa owners see when the actuator goes, the codes behind it, whether a Corsa C and a Corsa D unit differ, and how the repair reaches us. Easytronic Astras, Merivas, Zafiras and the rest of the range are covered on our Vauxhall Easytronic clutch actuator repairs page, and every automated-manual actuator we handle is gathered in the clutch actuator repairs hub.

What does the actuator do on a Corsa 1.2 Easytronic?

Underneath, the Corsa 1.2 Easytronic is a manual: a conventional clutch and gearbox, with no clutch pedal. The Easytronic control unit decides when the clutch should open and when a gear should change, and the actuator turns those electronic commands into physical movement. It engages and releases the clutch, and it also has a hand in the gearbox’s selection mechanism, which is why it is usually called a clutch/gearbox actuator.

Mileage alone says little about how hard it has worked. Every pull-away and every stop is clutch work the actuator does unaided. A Corsa that has covered most of its miles in queues, school runs and car parks has made far more clutch movements than one used mainly for long, steady journeys.

The actuator is also coded to the car. That single fact shapes every decision further down this page, because a unit taken from another Corsa does not simply bolt on and work.

What does a Corsa show when the Easytronic actuator is failing?

Most owners notice the gear display first. Where the selected gear should be, the Easytronic shows something else:

• An F, either steady or flashing
• An N, steady or flashing, that will not clear
• Dashes in place of the gear number
• A clutch or gearbox warning message alongside it

The way the Corsa drives changes as well, and often before the display does:

• Gears that are slow to engage, refused outright, or accompanied by grinding
• Jerky, abrupt changes, or a clutch that takes up late as you pull away
• A car that will not move off in any gear
• A car that will not start, with the F showing

Harsh changes and a late take-up tend to be the early stage; a Corsa that will not move at all is often where it ends. The last two signs are the easiest to misread, because neither points obviously at the gearbox: a car that will not start looks like a battery problem, and one that will not drive looks like a worn clutch, when the actuator can be behind both.

Which fault codes does a Corsa Easytronic store?

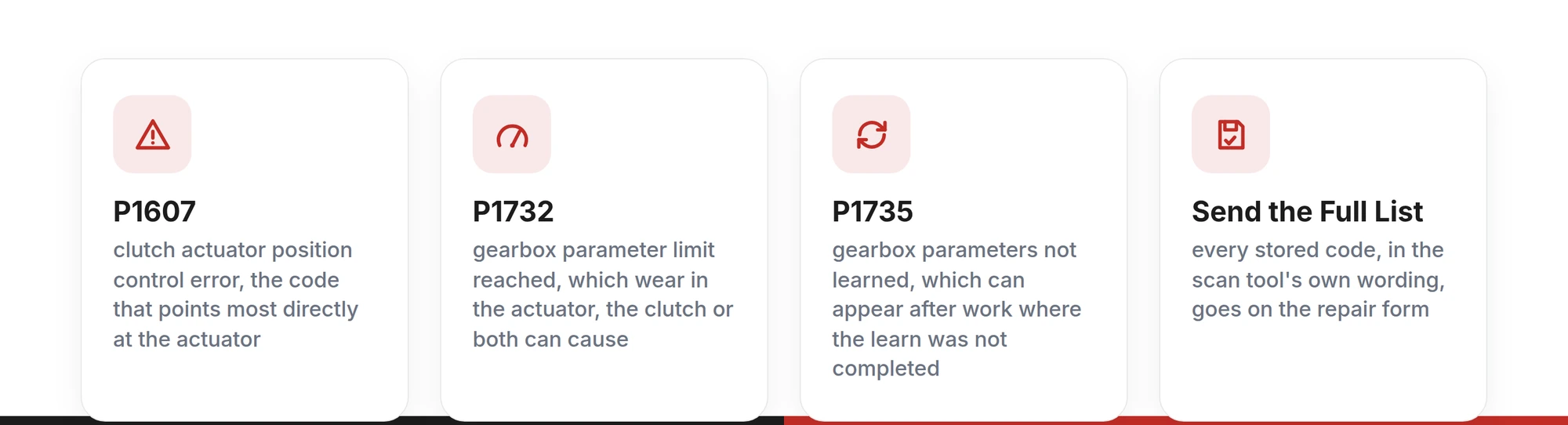

A diagnostic scan tells the garage far more than the dash does. These three are the codes most often linked to the Easytronic actuator:

• P1607, clutch actuator position control error. The control unit is not getting the clutch position it asked for. Of the three, it points most directly at the actuator.
• P1732, gearbox parameter limit reached. The learned values the system uses to work the clutch have reached the end of their range. Wear in the actuator, the clutch or both can push them there.
• P1735, gearbox parameters not learned. The system has no valid learned values to work from. It can appear after clutch or actuator work where the learn was never completed.

Ask for the full list, in the exact wording the scan tool uses, and put it on the repair form. A P1607 on its own reads differently from a P1607 with a P1732 behind it, and the complete set is what lets us judge whether the actuator is the unit to send. For the codes and symptoms of automated manuals beyond the Corsa, see our guides to clutch actuator fault codes and clutch actuator fault symptoms.

Why do Corsa Easytronic actuators fail?

Three things account for most Corsa actuators that reach a workbench.

Workload. Every clutch movement the Corsa makes is the actuator’s, and a life of short urban journeys piles those movements up. The parts that do the moving wear, and the unit’s control over the clutch gradually becomes less exact. The system covers for that for a while, which is why the early signs are a rough change here and a late take-up there.

Where it lives. Mounted on the gearbox, the actuator heats up and cools down with every journey and is shaken for as long as the engine runs. Oil from a nearby leak, or dirt that finds a way in, adds to the damage. A connector that has suffered the same conditions can corrupt the signals passing between the actuator and the control unit.

Communication. Less often, the trouble lies in the exchange between the Easytronic system and the actuator rather than in the actuator’s own movement. From the driver’s seat it looks the same, which is one more reason to prove the unit on a bench before anything is bought.

Corsa C or Corsa D: does it change the actuator?

Both generations of Corsa were sold with Easytronic, and both suffer the actuator fault described here. What changes is the unit itself. The actuator’s part number varies with model year and engine variant, so a Corsa C actuator and a Corsa D actuator, or even two 1.2s a few years apart, can carry different numbers.

Identical Corsas are no guarantee either. Same generation, same engine, and the actuators can still wear numbers that will not interchange. The model name and the year are a starting point for finding a match, not proof of one.

The label on the actuator is the reliable guide. Read the number off it before anything is ordered, and give us the registration too; if you are unsure whether you have a C or a D, the registration settles it. The Easytronic part numbers we see most often are listed on the Vauxhall Easytronic page linked above. If yours is not among them, send it anyway and we will check it.

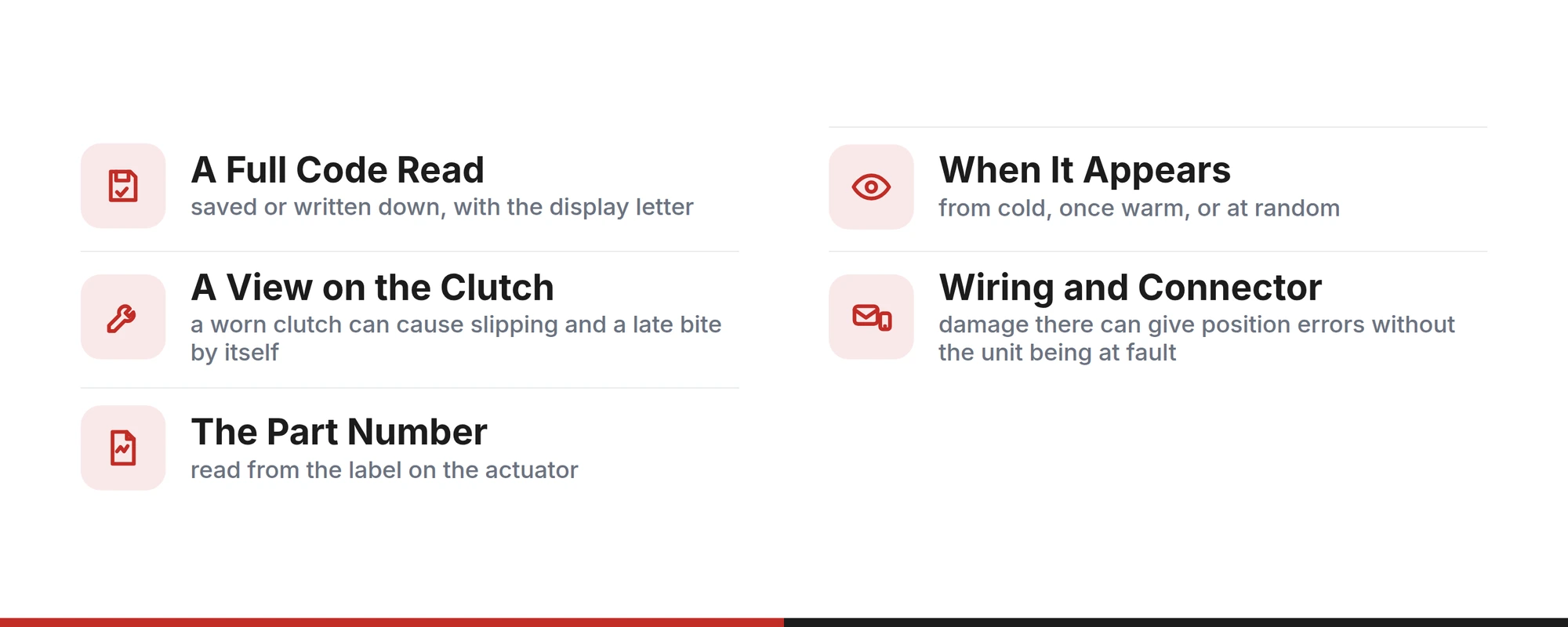

What should the garage check before the actuator comes off?

An F on a Corsa’s display says the Easytronic has a fault, not which part caused it. A few checks first make sure the right unit is the one that comes to us.

• A full code read, saved or written down, together with the display letter and when it appears: from cold, once warm, or at random
• A view on the clutch. A worn clutch produces a late bite and slipping by itself, and on a high-mileage Corsa the clutch and the actuator can both be tired
• The wiring and connector to the actuator, since damage there can produce position errors without the unit being at fault
• The part number from the actuator’s label

None of this needs to hold up the repair, and none of it is a reason to leave the actuator on the car. It simply means that when the unit reaches our bench, we already know what the rest of the system was doing. If your Corsa refuses gears with no clutch codes stored, our guide to why a car won’t go into gear covers what else can cause it.

Where the checks leave doubt, send the actuator anyway. A unit that passes our bench test comes back with that result and our view on where the fault more likely sits, so nothing gets bought on a guess.

Repair the Corsa’s own actuator, or fit a different one?

There are three ways back to a working Easytronic, and coding settles most of the argument between them.

• New, from a dealer. It must be coded to your Corsa with dealer equipment, it is the same design as the unit that failed, and it normally carries a 12-month warranty.
• Used, from another Corsa. It needs coding too, and most dealers will not code a second-hand part. With part numbers varying by year and engine, it may not even be the right unit, and used-part warranties tend to run for 30 to 90 days.
• Your own, repaired. It already carries your Corsa’s coding, so nothing needs programming when it goes back. We reinforce the weak points that let it down rather than restoring it exactly as it was, and it leaves us with a lifetime warranty.

One step is common to all three. Once an actuator is back on the gearbox, the garage runs a clutch-point learn with its diagnostic equipment so the system knows where this Corsa’s clutch bites. It is a fitting step, separate from coding, and it applies whichever unit is fitted.

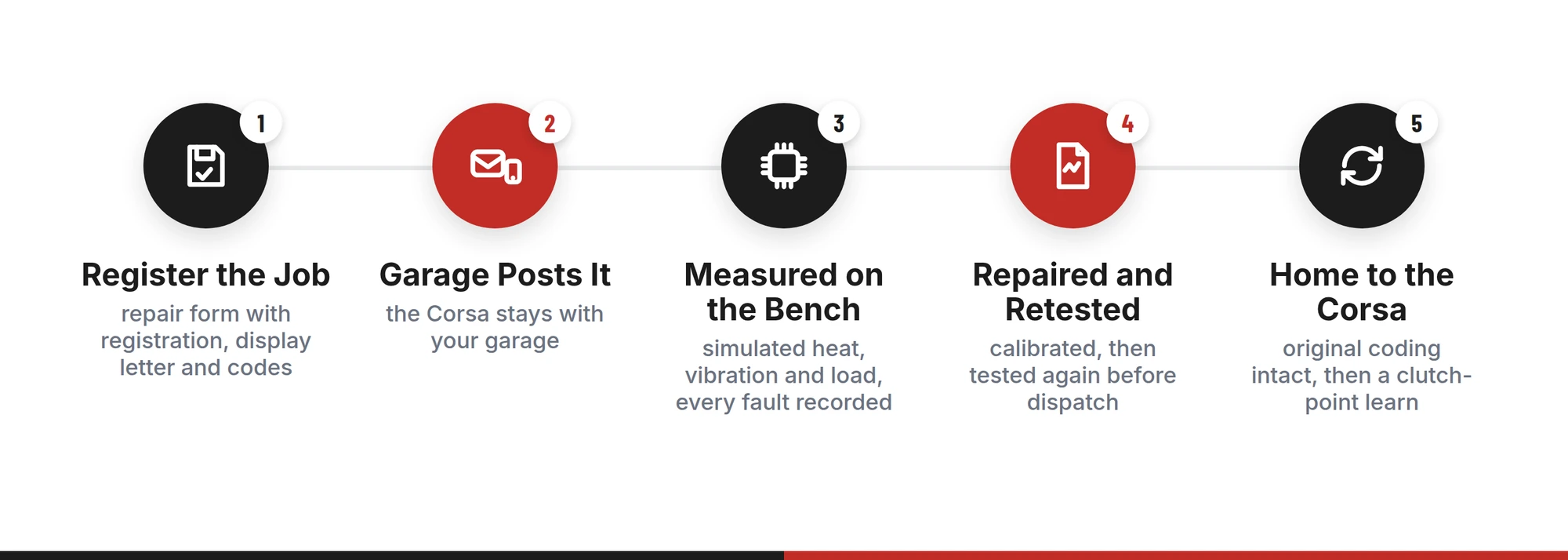

How does the Corsa actuator repair work by post?

We never need to see the Corsa. Your garage handles removal and refit; we handle everything in between.

1. Register the job

   Complete the repair form with the registration, the generation if you know it, the display letter, the stored codes and the number from the label. If the clutch has been replaced recently, tell us, because it puts the codes in context.

2. Off the gearbox and into a box

   Taking the actuator off a Corsa and refitting it is routine garage work. Pack the unit firmly, cover the connector, and enclose a note with your name and registration.

3. Measured on the bench

   On our Hardware-in-the-Loop platforms the actuator is driven through its full range under simulated heat, vibration and load, and everything it does wrong is recorded before any repair begins.

4. Repair, calibration, retest

   Our in-house engineers carry out the repair in a cleanroom-standard, ESD-safe workshop. The unit is calibrated with dealer-level diagnostic equipment, then the bench test is repeated in full, and it ships only once it passes.

5. Home to the Corsa

   It goes back to your garage still carrying its original coding. They refit it, clear the stored codes and run the clutch-point learn.
