Honda Civic i-Shift Clutch and Gear Actuator Repair

This page sets out how the i-Shift divides its work between three units, what the symptoms and P0810 are telling you, why the actuators wear, and what happens once your garage sends one to us. Other automated manual gearboxes are covered in our clutch actuator repairs.

What is the Honda i-Shift gearbox, and which Civics have it?

i-Shift is Honda’s name for the optional semi-automatic gearbox on the Civic. It is not an automatic in the usual sense. Inside the casing is a manual gearbox with a conventional clutch, and the car operates both for you, which is why the footwell has no clutch pedal.

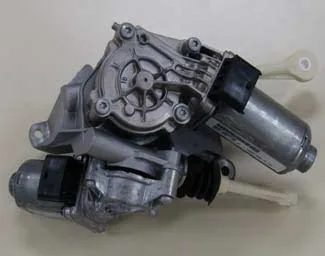

Three units share that work. The clutch actuator takes up and releases the clutch. The gear actuator moves the gearbox into the chosen gear. The gearbox ECU makes the decisions: it judges which gear the car needs and when to change, commands each actuator in turn, and keeps track of where the clutch is at every moment. That last job matters more than it sounds, as the section on the flashing N explains.

We repair i-Shift units from Civics with the 1.4 and 1.8 i-VTEC engines. If you are unsure which gearbox your car has, the part number on the unit settles it, and we will confirm before anything is posted.

Honda Civic i-Shift problems: the symptoms that point to an actuator

An i-Shift fault seldom begins with a dead car. It tends to show up as odd behaviour that comes and goes, then comes more often. These are the problems that bring Civics to our workshop:

• Selecting the wrong gear. The gearbox engages a different gear from the one it should.
• Gears will not select. A change is refused, or the car will not take up drive from rest.
• Will not rev in reverse. Reverse is engaged, but the car will not rev and pull away in it.
• Going in and out of auto mode. The gearbox leaves automatic operation without being asked.
• A flashing N and a car that will not start. The gear display flashes N and the engine will not crank.
• Faults logged in the gearbox ECU. Stored against the clutch actuator, the gear actuator, or both.

Write down when the problem happens: only from cold, only after a long run, or ever since the battery went flat. Details like these steer our bench test towards the fault you are actually living with, so put them on the repair form. The same signs across other automated gearboxes are covered in our guide to clutch actuator fault symptoms.

P0810 and the flashing N: what the i-Shift is telling you

P0810 is logged as a clutch position control error. On the Civic i-Shift it is the code we see most often alongside actuator faults, and it frequently arrives with gears that will not select or a car that keeps dropping out of auto mode. Put simply, the gearbox ECU could not confirm the clutch was where it needed to be.

The flashing N is the same concern seen from the driver’s seat. A flashing N on the display, an engine that will not crank and a gearbox that will not go into the correct gear are a recognised set on the i-Shift. The controller will not crank the engine unless it can prove the clutch is open, so when it cannot trust the clutch position, it keeps the car from starting. That is the system protecting itself, not a second fault.

What P0810 cannot do is name the failed part. A wearing clutch actuator, a supply or wiring fault and the gearbox ECU itself can all sit behind it. Our guide to clutch actuator fault codes covers the wider family of clutch-side codes.

Clutch actuator, gear actuator or gearbox ECU: which one has failed?

The i-Shift does not always fail in the same place, which is why we ask for the stored codes before anything is removed. The scan has to reach the gearbox ECU; a read of the engine management alone can miss the i-Shift faults completely. Record each code in full, with any description the tool gives.

Faults logged against the clutch actuator point one way and faults against the gear actuator point the other. Wrong gears and refused selections can come from either side, so the codes carry more weight than the symptoms do.

The gearbox ECU is the third suspect. When it is at fault, healthy actuators can still misbehave, because they are acting on poor instructions. We test and repair the i-Shift gearbox ECU too, alongside our work on transmission control modules. If the codes leave room for doubt, send them to us with a note of what the car does, and we will tell you which unit to remove.

What makes an i-Shift actuator fail?

An i-Shift actuator works far harder than a driver’s left foot ever does. It moves on every pull-away, change and stop, and the gearbox ECU expects it to arrive exactly in position each time. The causes we see are system-level, and they tend to compound one another.

• Heat cycling. The actuators are mounted on the gearbox, beside a hot engine, and cool right down again between journeys.
• Clutch wear. A clutch nearing the end of its life moves the point the actuator has to reach. That extra travel is more work on every engagement, until the actuator can no longer keep pace with what the ECU demands.
• Supply voltage. The i-Shift depends on a strong battery and sound earths. A tired battery, or one that has been run flat, can produce faults that look exactly like a failed actuator, so rule it out first.
• Road spray at the connectors. Water and dirt reach the plugs and harness on the gearbox and can disturb the signals the ECU relies on.
• Traffic. Urban driving packs clutch take-ups and gear changes into every mile.

Behind all of these is the way the gearbox ECU guards the gearbox. It can only act on what the actuators report, and when a report arrives late or looks wrong, it refuses the change, drops out of auto mode or will not let the engine start. From behind the wheel that feels like a gearbox on its way out. Often the gearbox is sound and one actuator is the fault.

Why a new or used actuator is not the simple fix

A new actuator from Honda, or a used one from a breaker, is a different unit from the one your Civic has been running with. Either has to be set up for your car before the i-Shift will work with it, so the job does not end when the bolts are tightened. A used unit adds its own uncertainty: it has done the same work, in the same heat, as the one it replaces, with no record of how near it is to the same fault.

Your own unit avoids that step. It is already set up for your Civic, and nothing in our repair changes that, so it needs no programming on refit.

Diagnosis is the other reason not to rush into buying parts. Low battery voltage, corroded plugs on the gearbox harness or a clutch close to the end of its life will go on producing the same symptoms whichever actuator is fitted, new or repaired.

How Sinspeed repairs your i-Shift actuator

Nothing needs to be driven to us. The car stays with your garage, and the unit travels to our Epsom workshop.

1. Your codes and the car’s history

   Complete the repair form with the registration, the stored gearbox codes and a short description of what the Civic does. Tell us what is coming: the clutch actuator, the gear actuator, the gearbox ECU, or more than one.

2. Packed up for Epsom

   Your garage takes the unit off as part of a normal workshop job, shields the connector and boxes it with enough padding to survive the courier.

3. The fault reproduced under load

   We mount the unit on one of our in-house Hardware-in-the-Loop platforms, which recreate engine-bay heat, vibration and the electrical demand of an i-Shift at work. Every movement and position report is logged, so the fault you described on the form shows up in the data rather than being guessed at.

4. Workshop repair and final sign-off

   The repair takes place in our cleanroom-standard, ESD-safe workshop, and the unit is calibrated on dealer-level diagnostic equipment. It is cleared for return only after a complete repeat run on the platform shows no faults.

5. Fitted to your Civic again

   The unit returns to the gearbox it came from. It is still the one your Civic was set up with, so there is nothing to program, and its lifetime warranty carries no mileage limit.

The same repair-by-post route covers Toyota MMT clutch and gear actuators, Smart car clutch and gear actuators and the Fiat and Alfa Dualogic clutch actuator.
